Electric Load Sensor: Locations

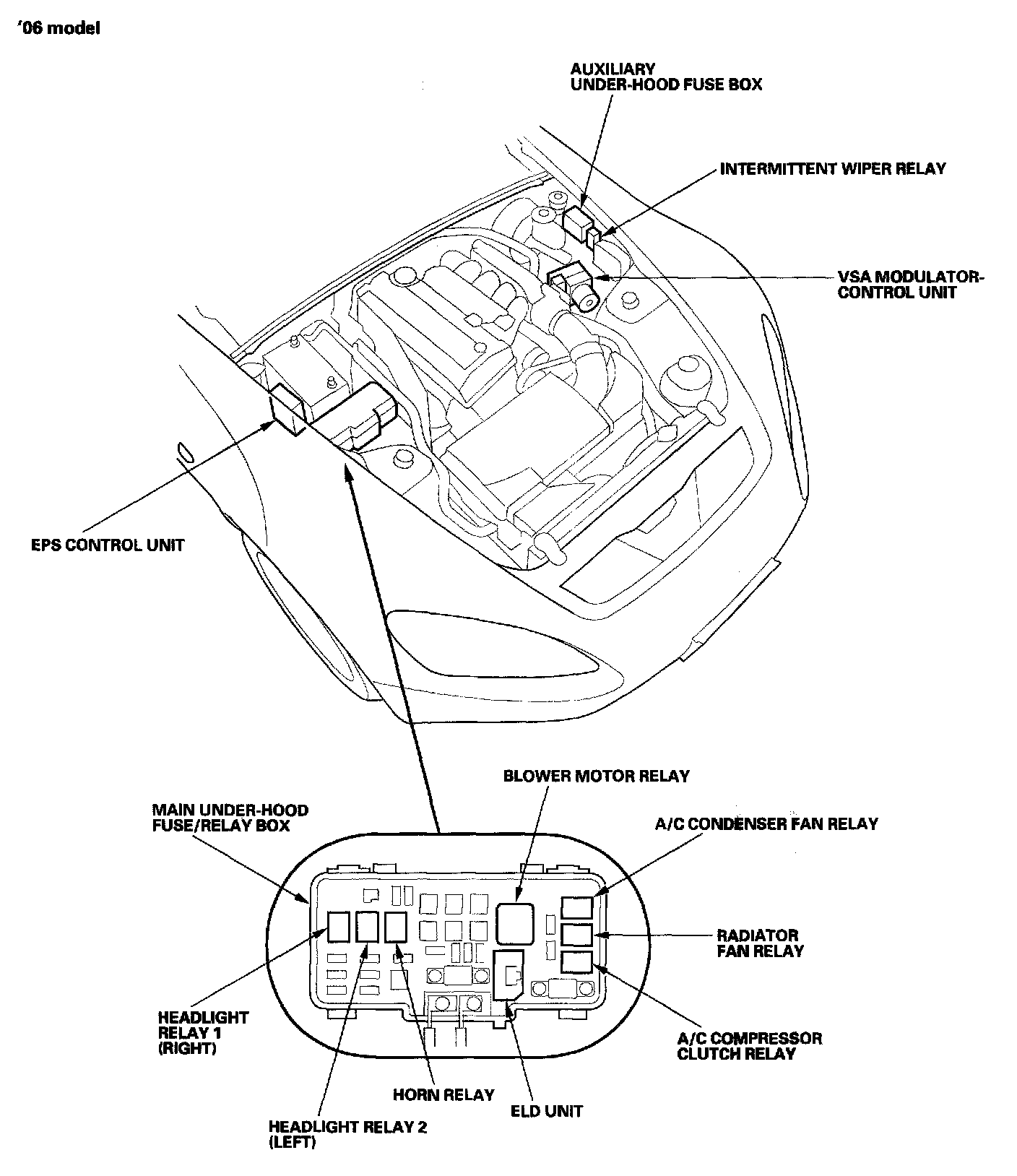

Relay And Control Unit Locations - Engine Compartment:

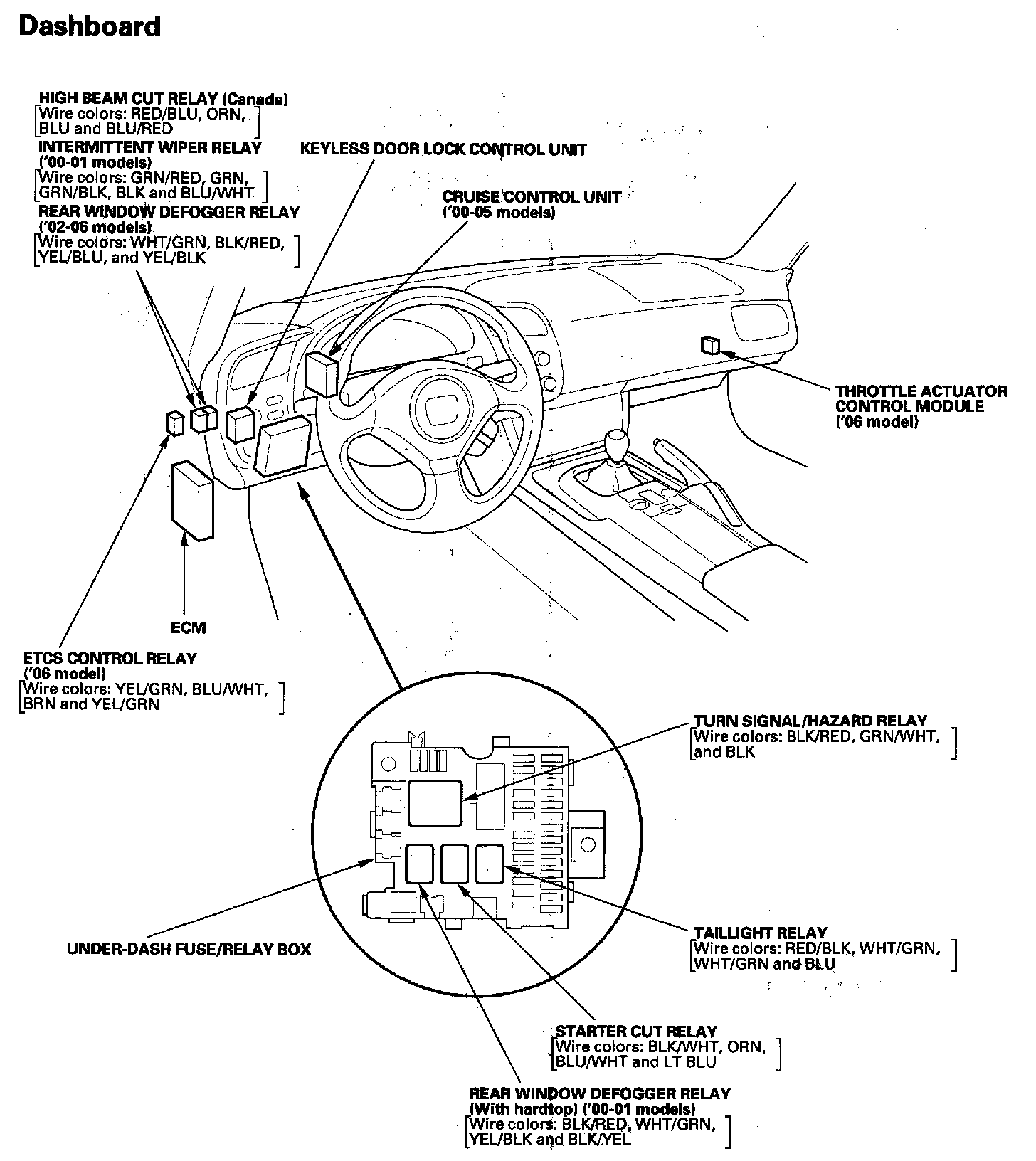

Relay And Control Unit Locations - Dashboard:

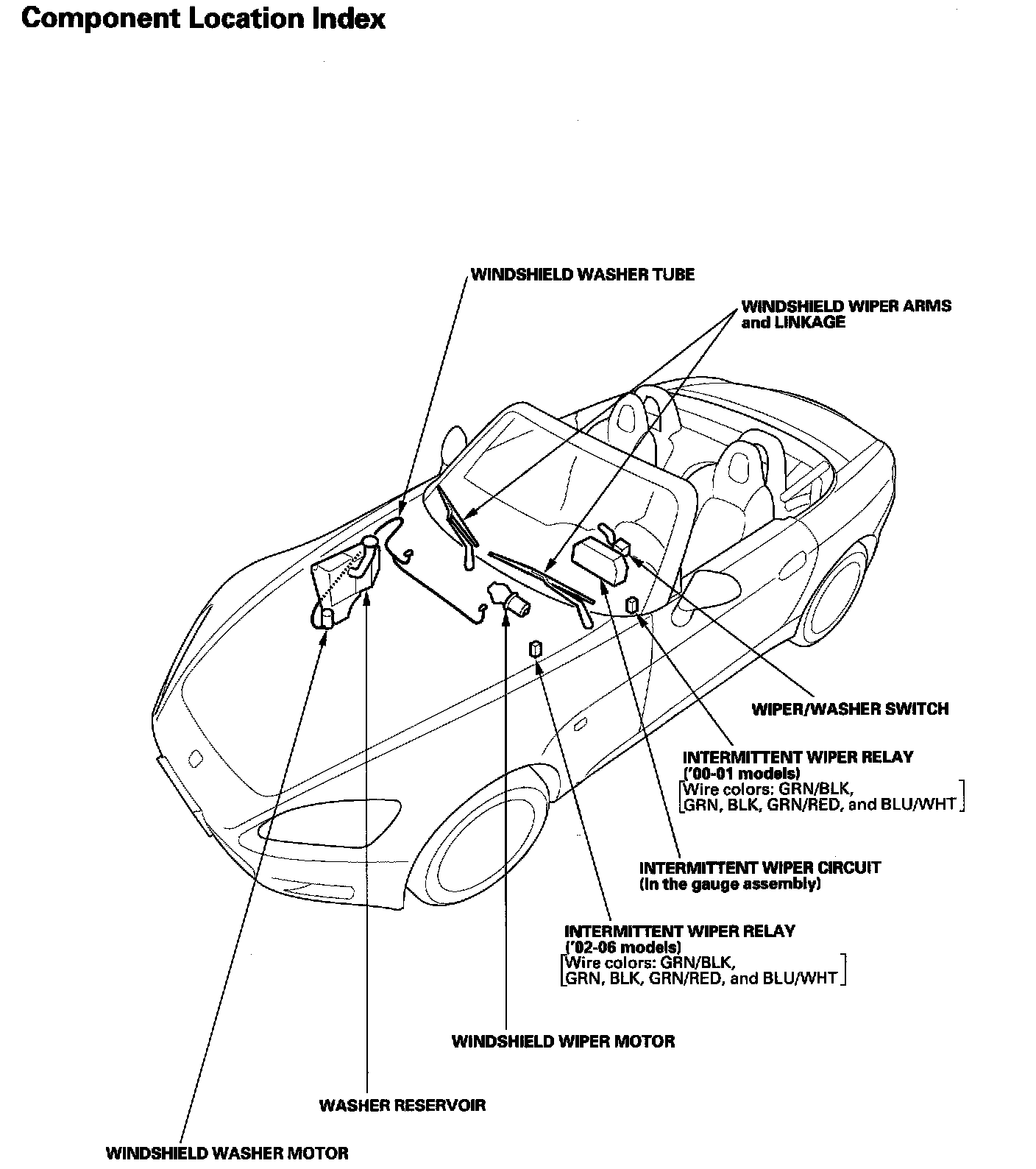

Wipers/Washers - Component Location Index:

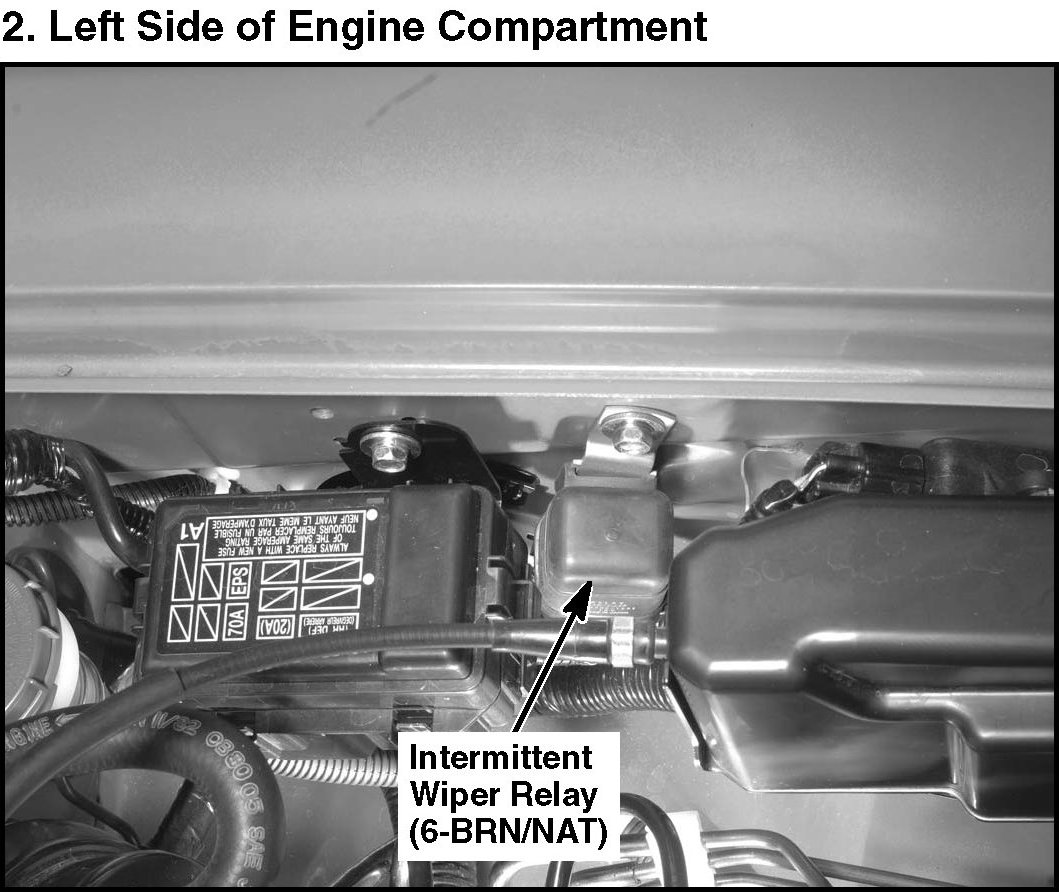

2. Left Side Of Engine Compartment:
