Alarm Module: Locations

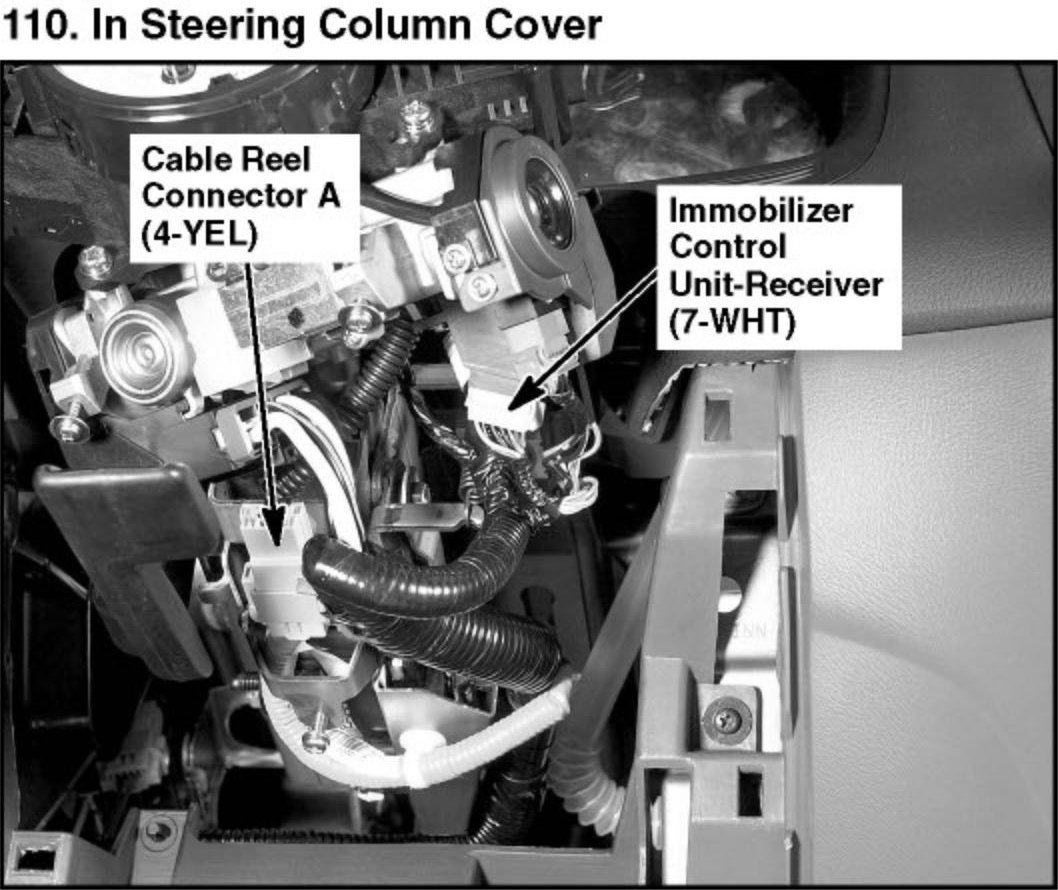

110. In Steering Column Cover:

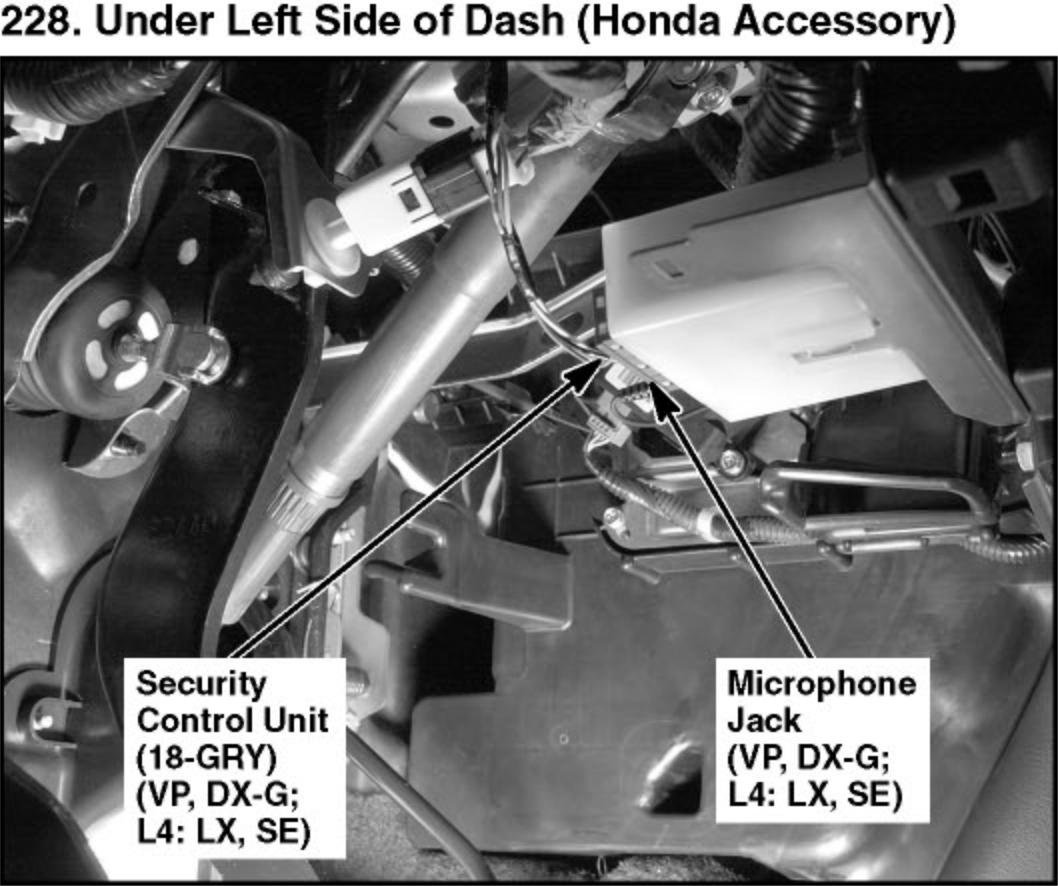

228. Under Left Side of Dash (Honda Accessory):

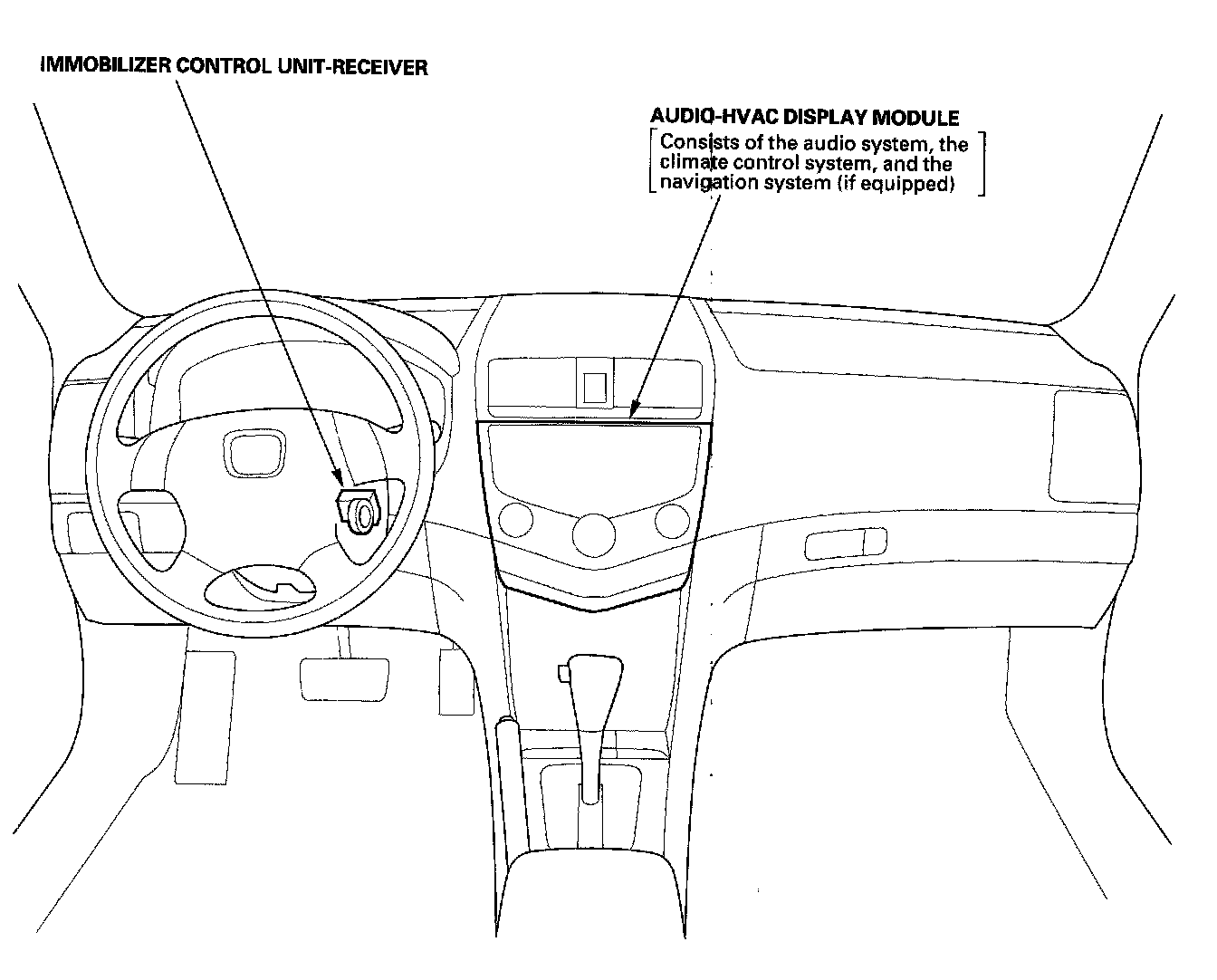

Relay And Control Unit Locations Dashboard:
