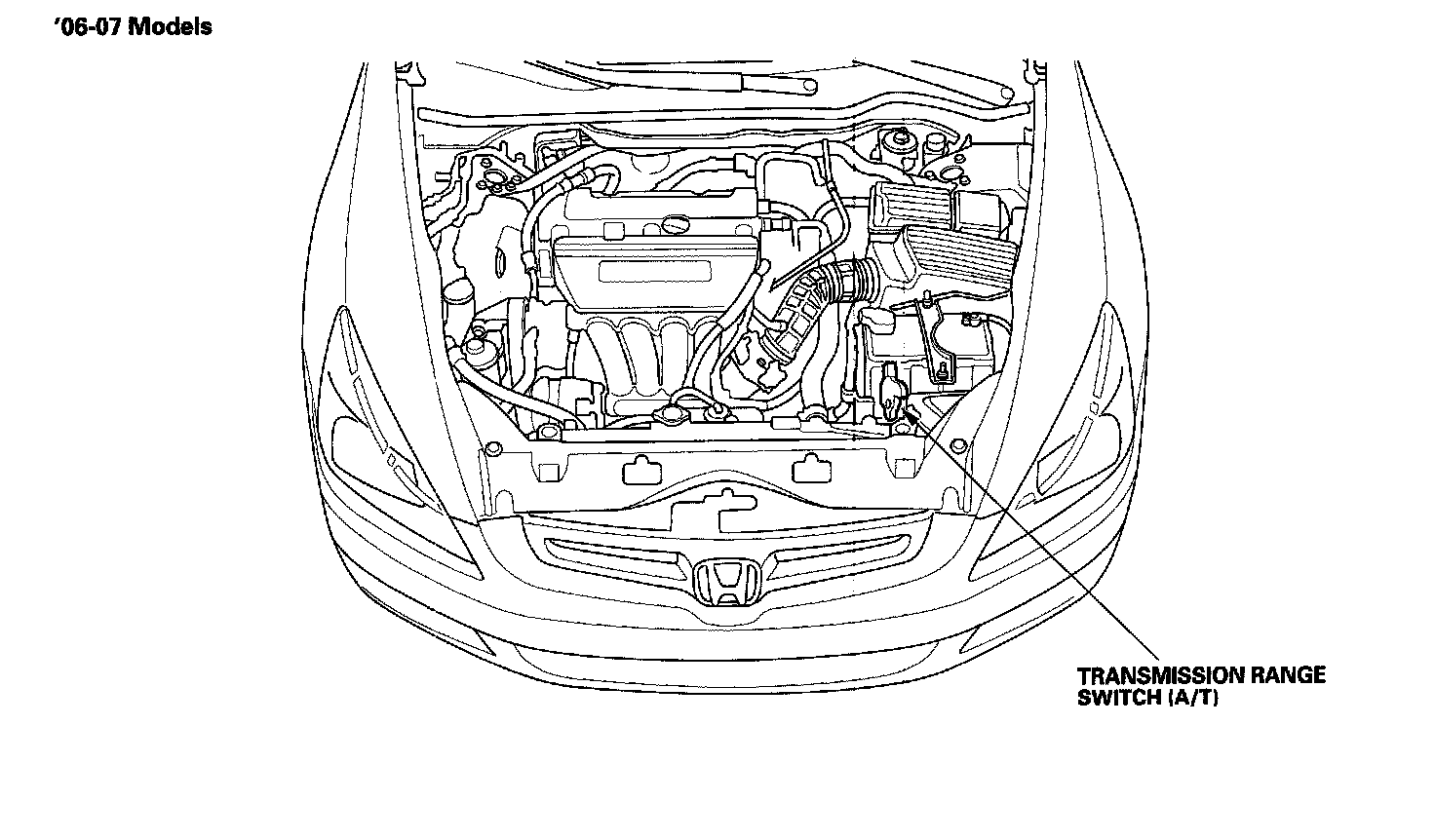

Transmission Position Sensor/Switch: Locations

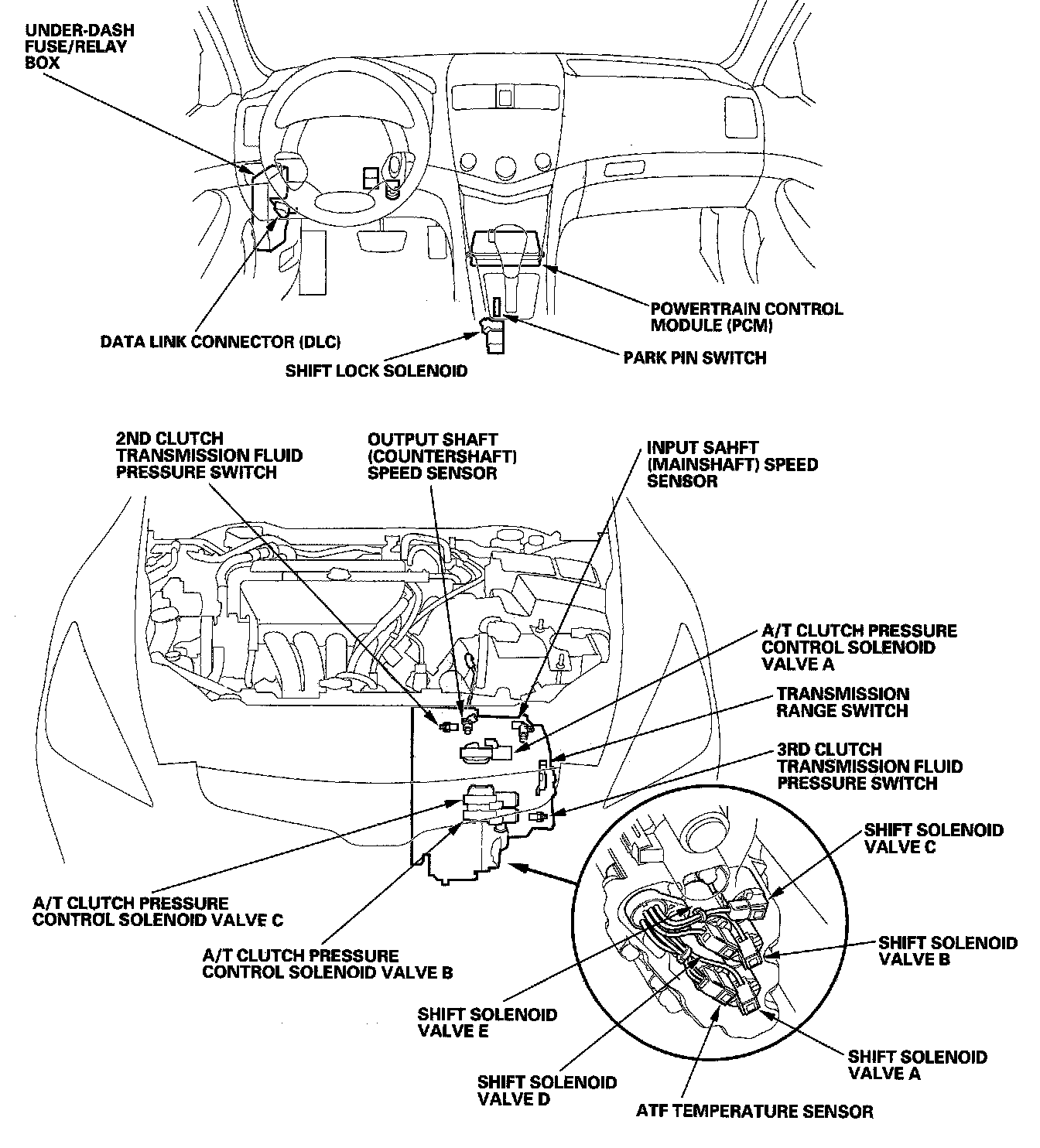

Electronic Controls Location:

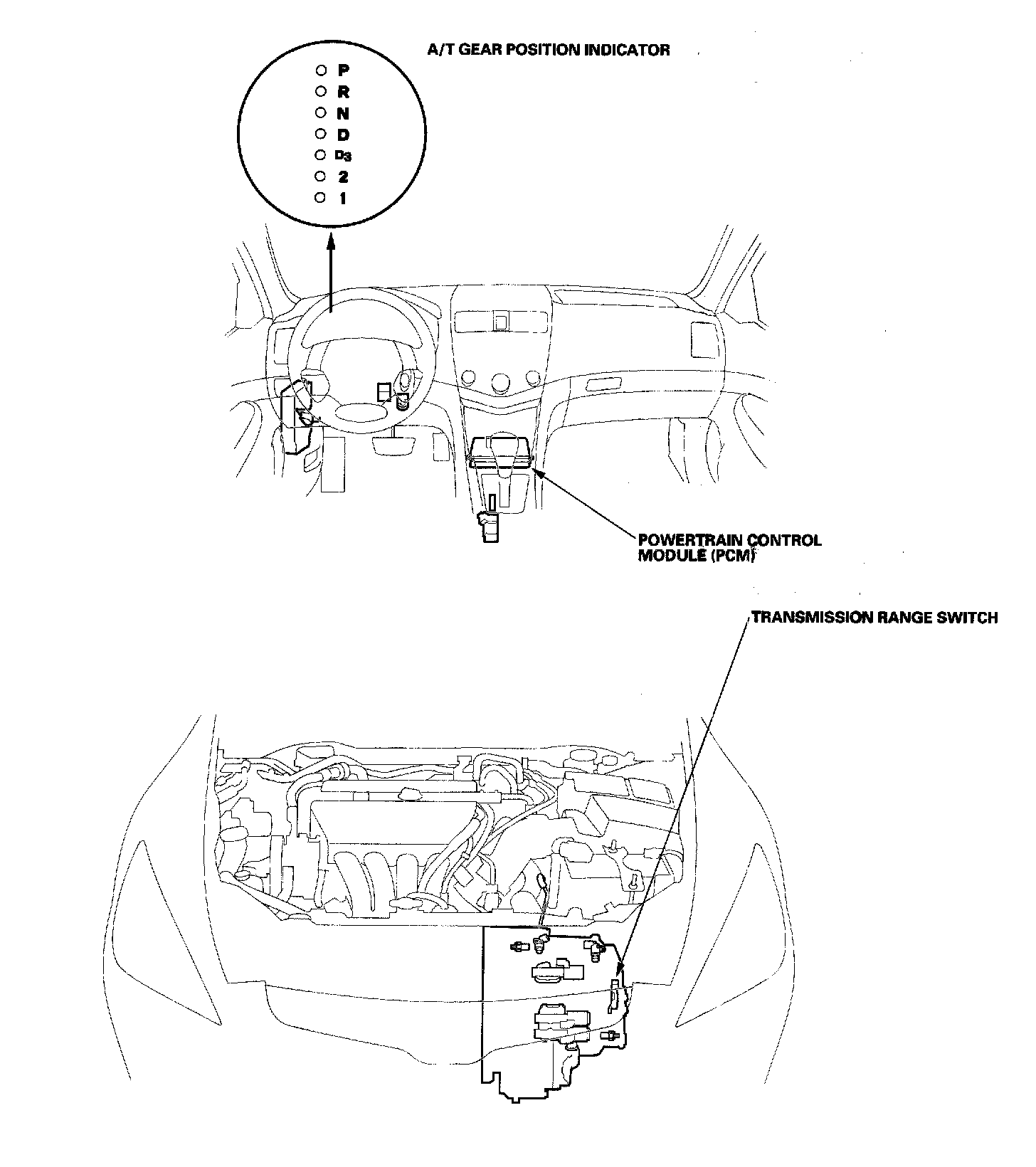

A/T Gear Position Indicator Component Location Index:

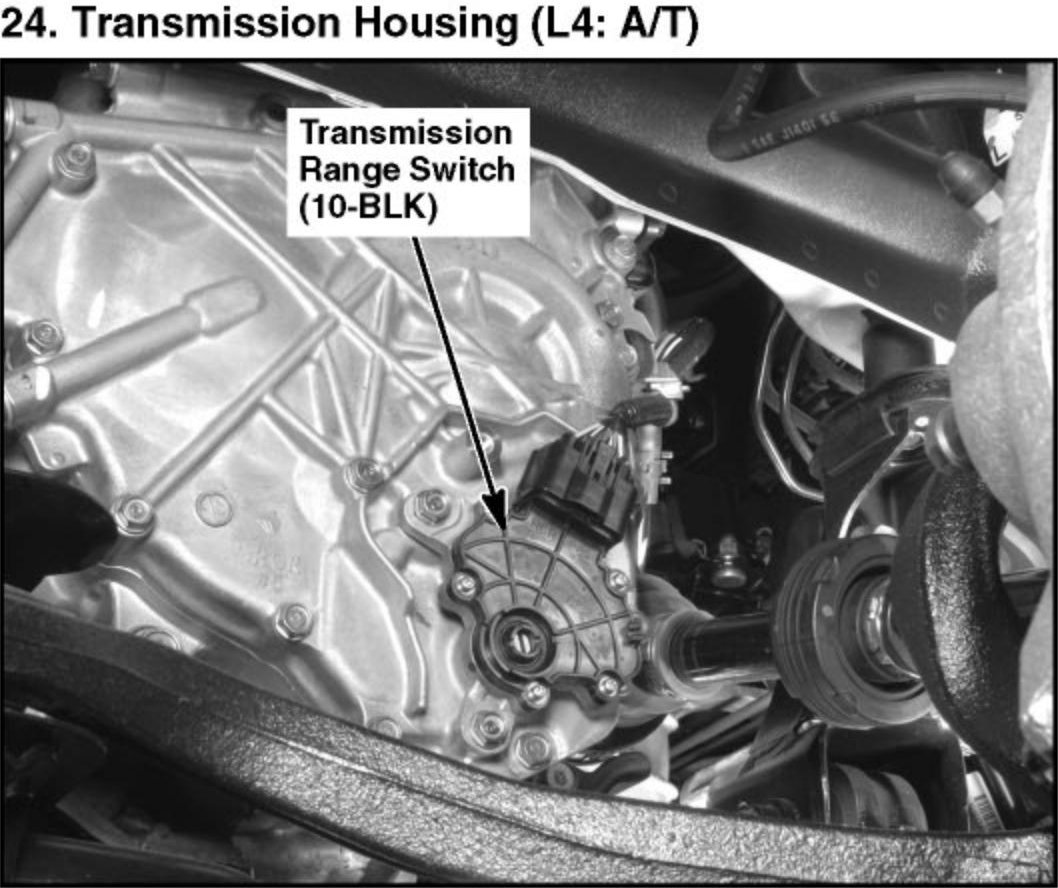

24. Transmission Housing (L4: A/T):

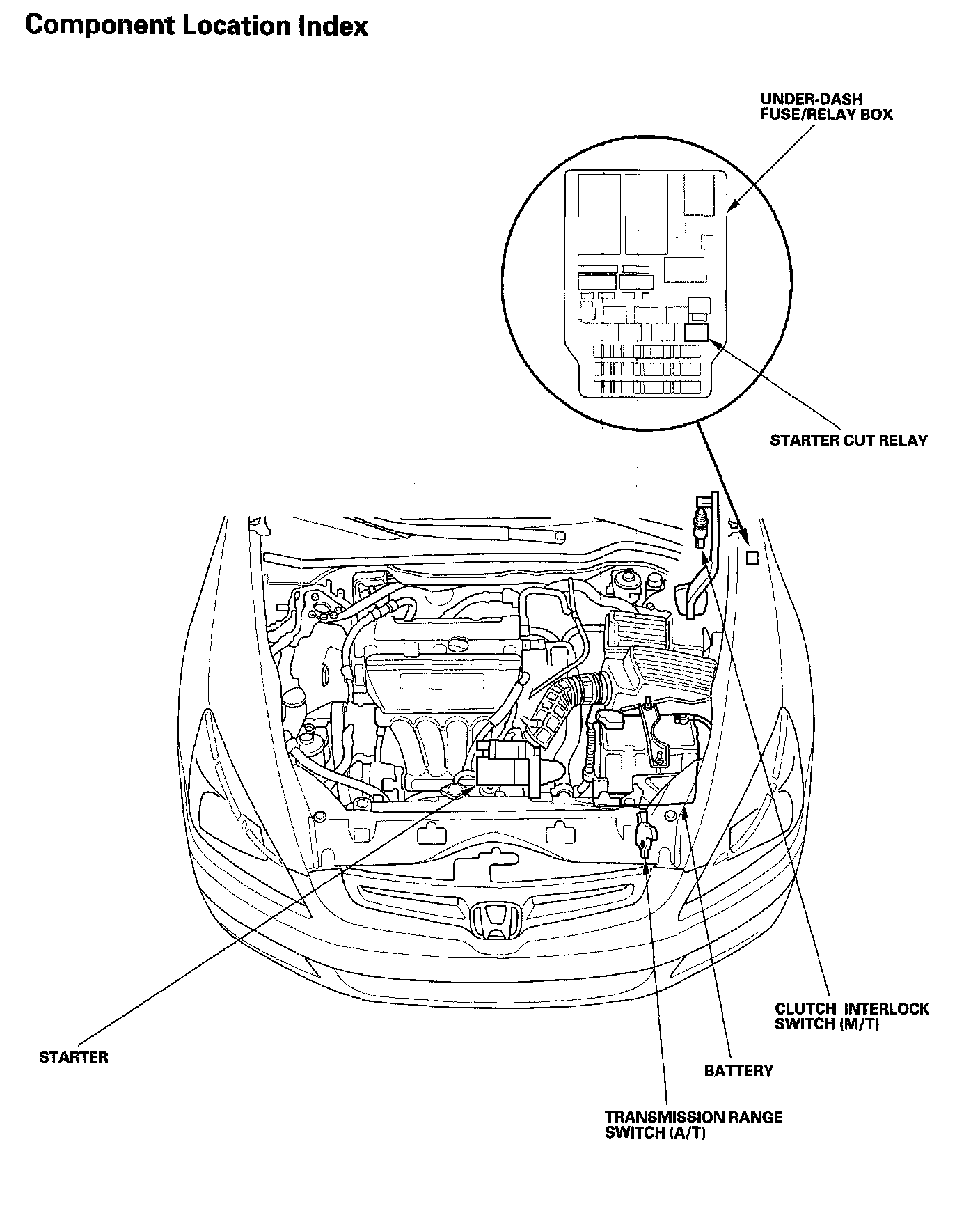

Starting System Component Location Index:



Cruise Control Component Location Index:
