Pinout Values and Diagnostic Parameters

Electronic Control System

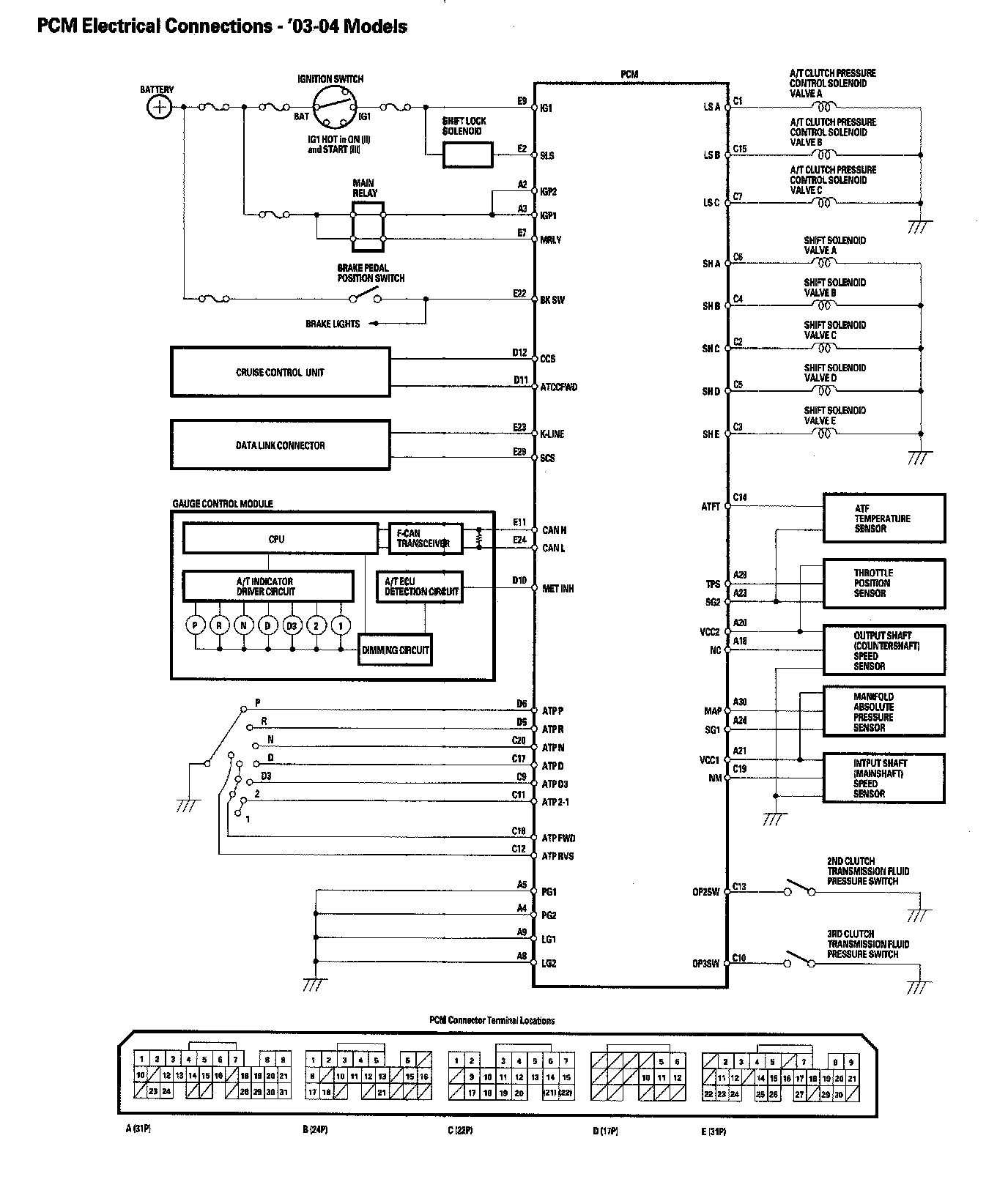

PCM Electrical Connections - 2003-2004 Models:

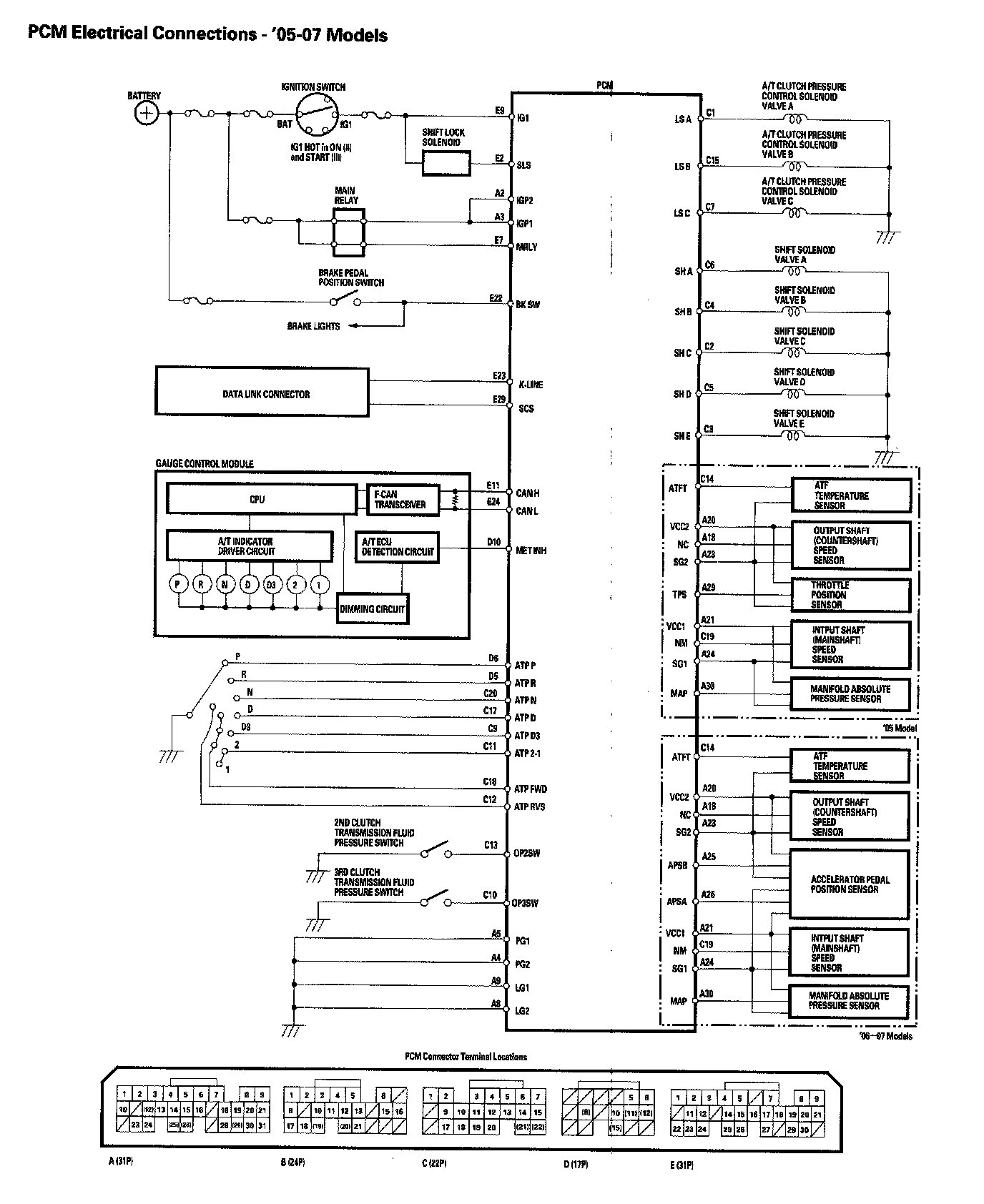

PCM Electrical Connections - 2005-2007 Models:

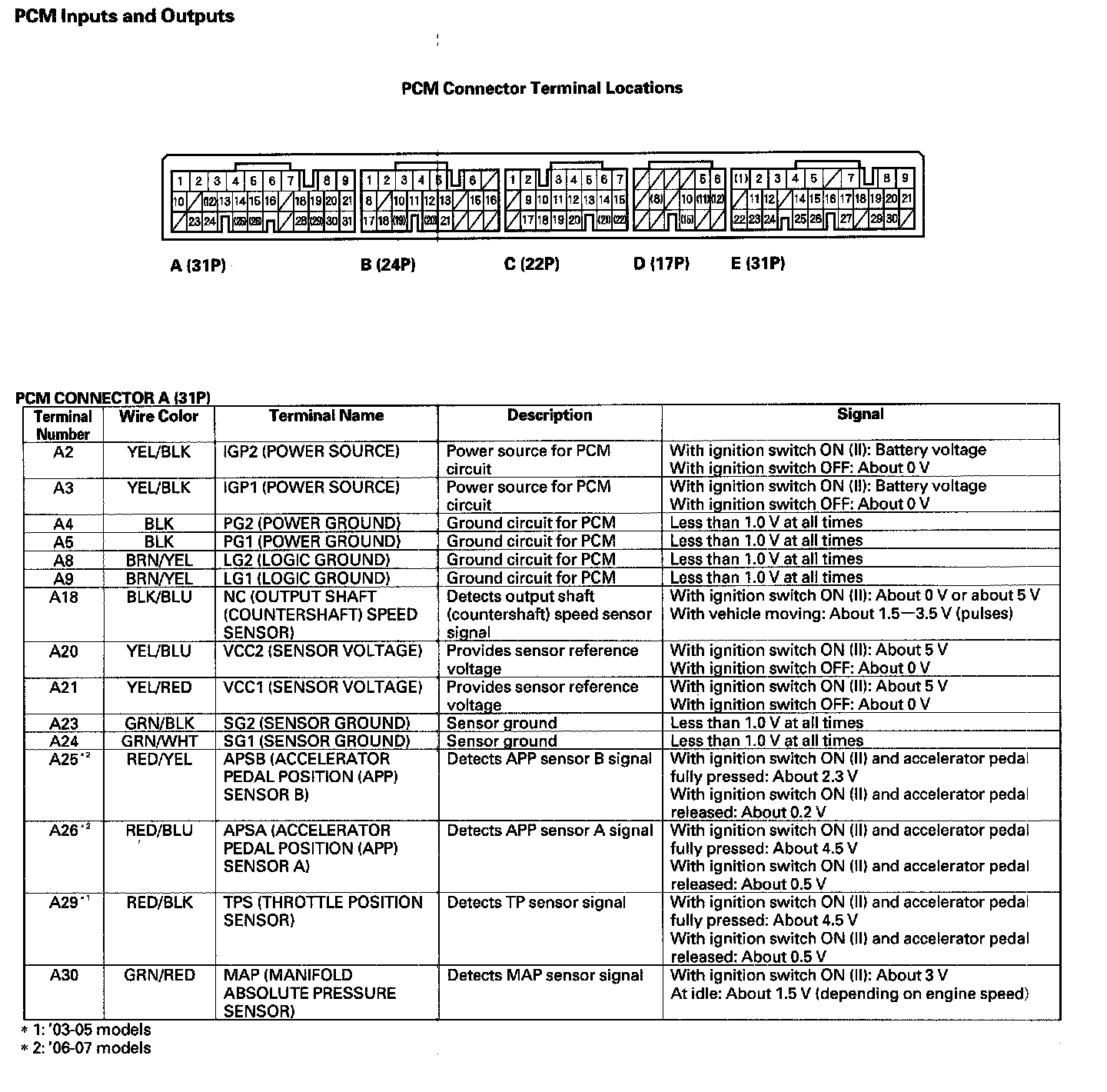

PCM Inputs and Outputs - Part 1:

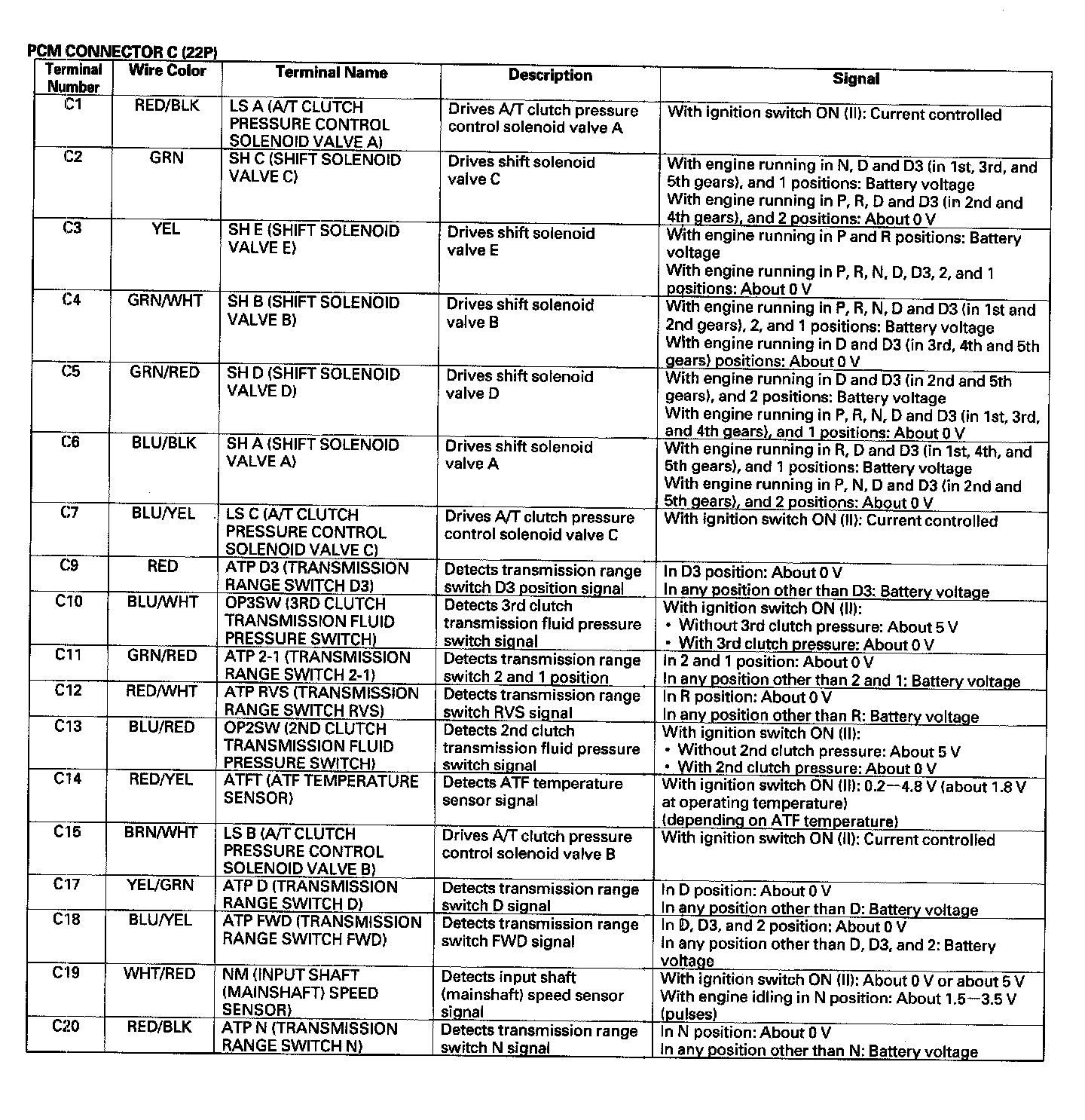

PCM Inputs and Outputs - Part 2:

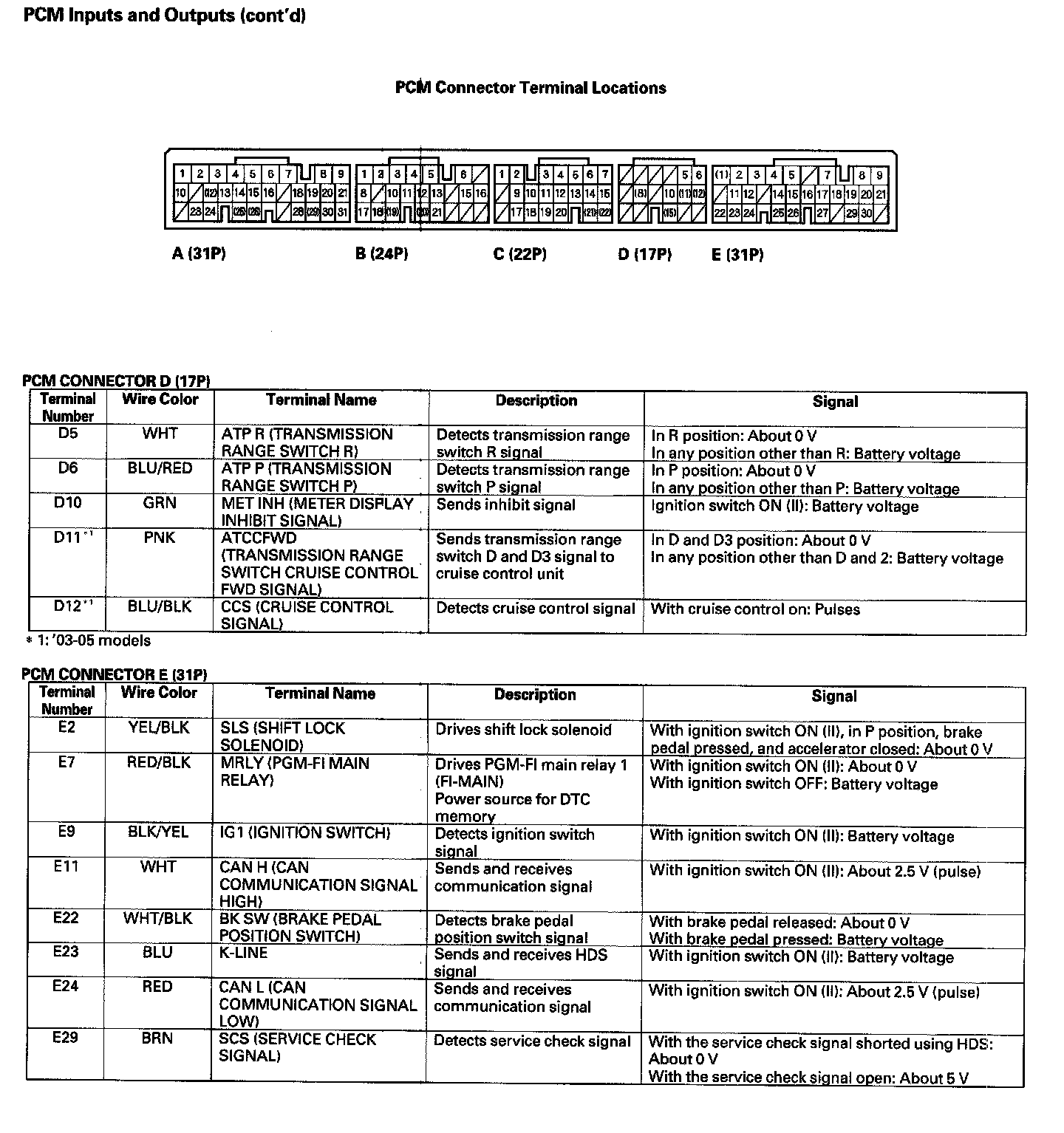

PCM Inputs and Outputs - Part 3:
