Air Bag Control Module: Locations

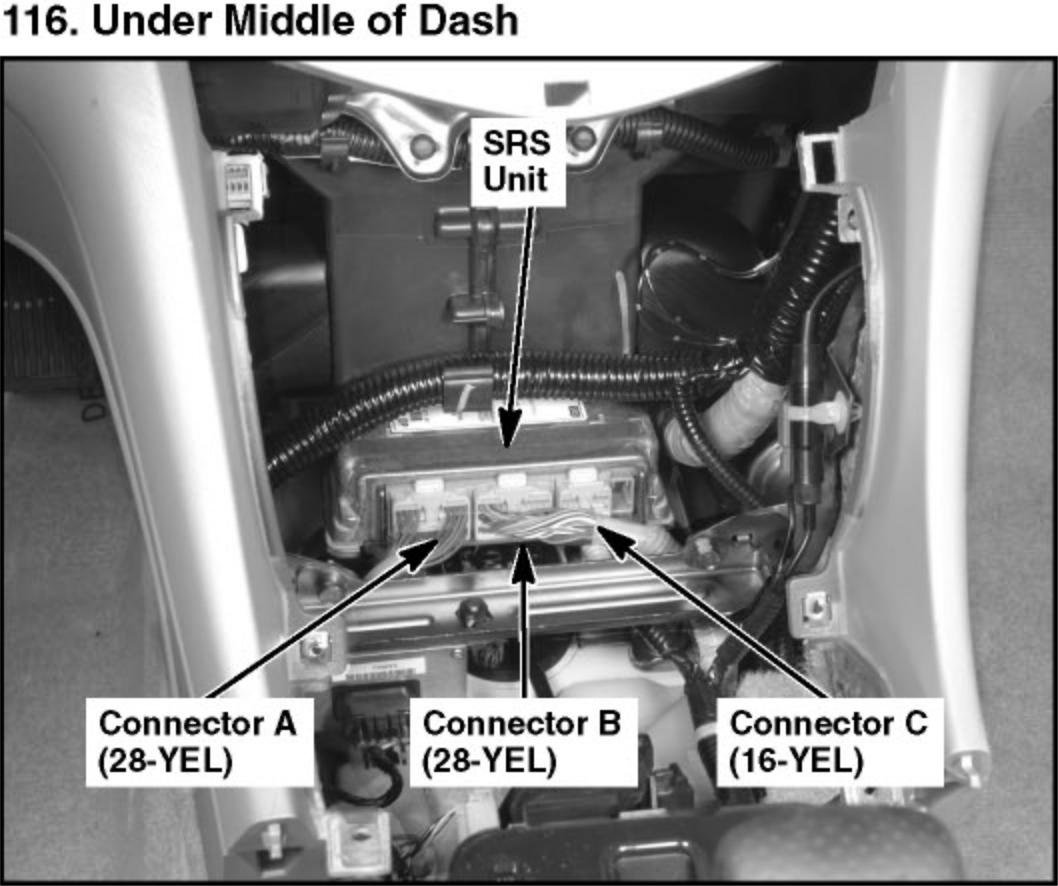

116. Under Middle of Dash:

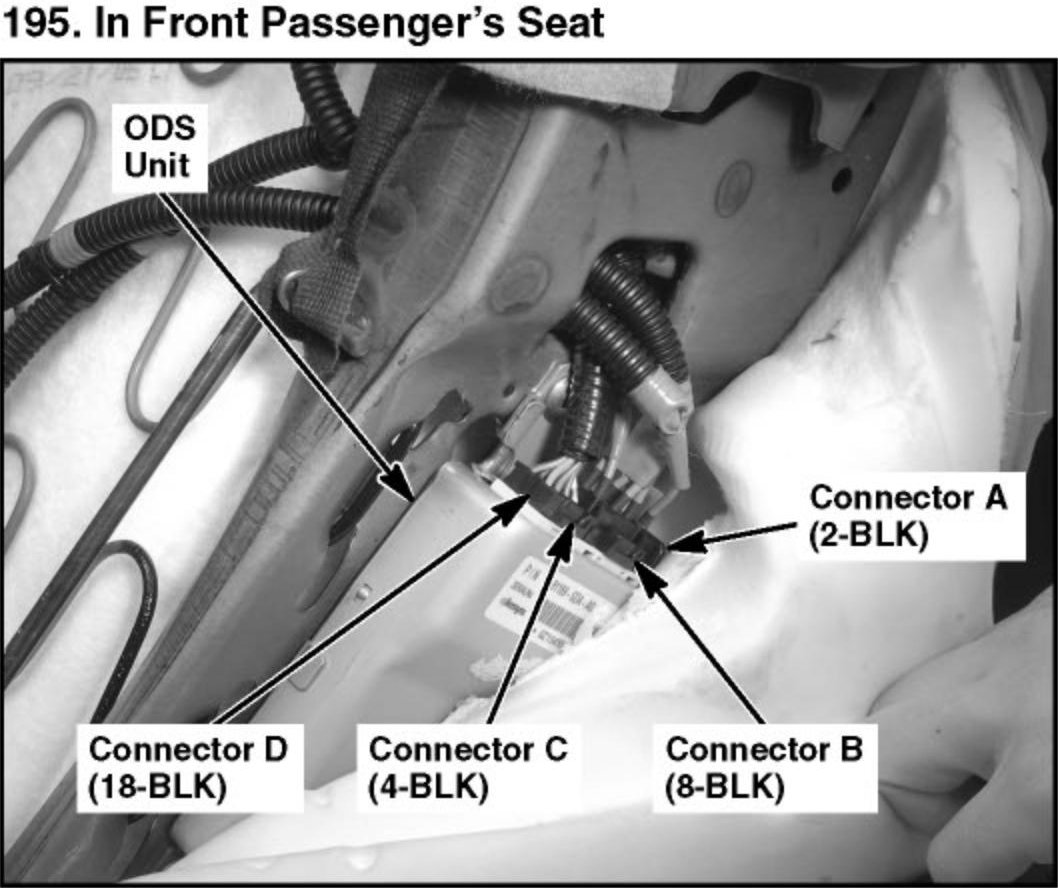

195. In Front Passenger's Seat:



SRS Component Location Index:



Relay And Control Unit Locations Dashboard:



Relay And Control Unit Locations Door and Seat:
