System Specifications

Crankshaft Pulley

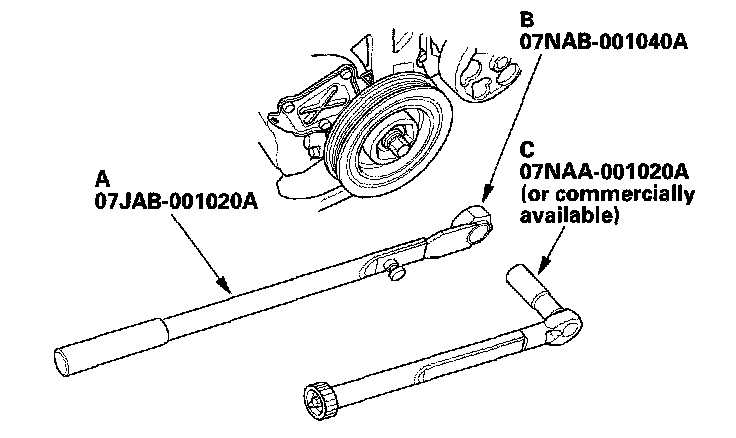

Tighten the bolt to 49 Nm (5.0 kgf-m, 36 ft. lbs.) with a torque wrench and 19 mm socket (C). Do not use an impact wrench.
Tighten the pulley bolt on additional 90°.

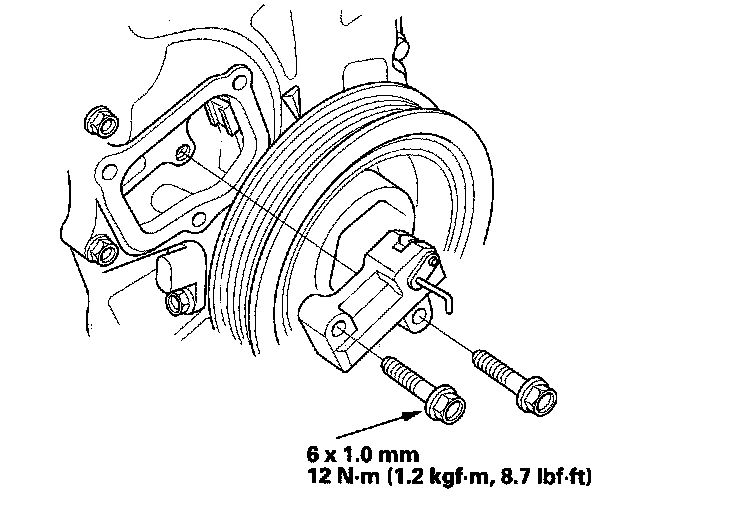

Timing Chain Tensioner

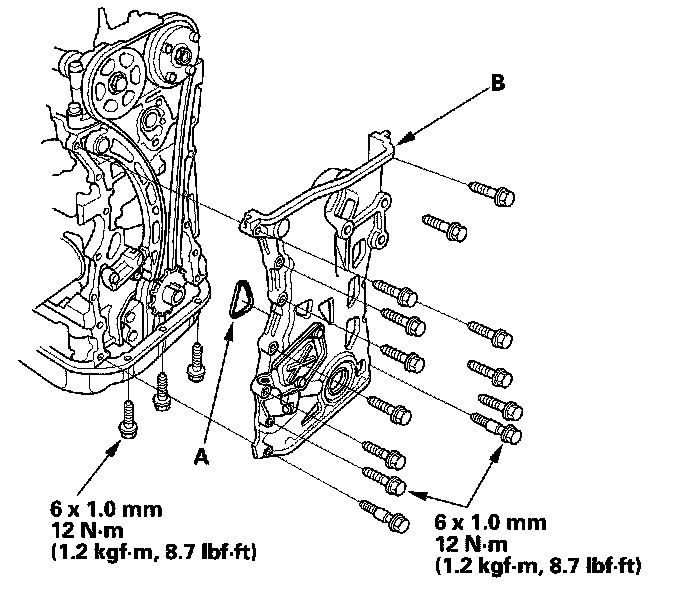

Timing Cover
