TPMS Control Unit (TPMS) Connector End View

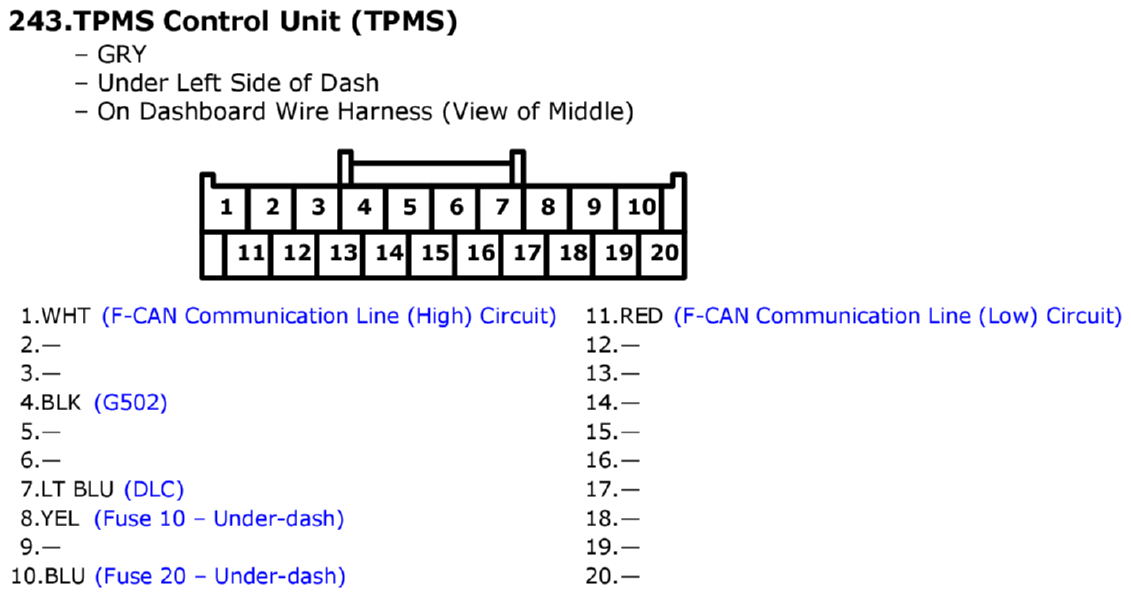

Fig 1: TPMS Control Unit (TPMS) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
