Frame: Specifications

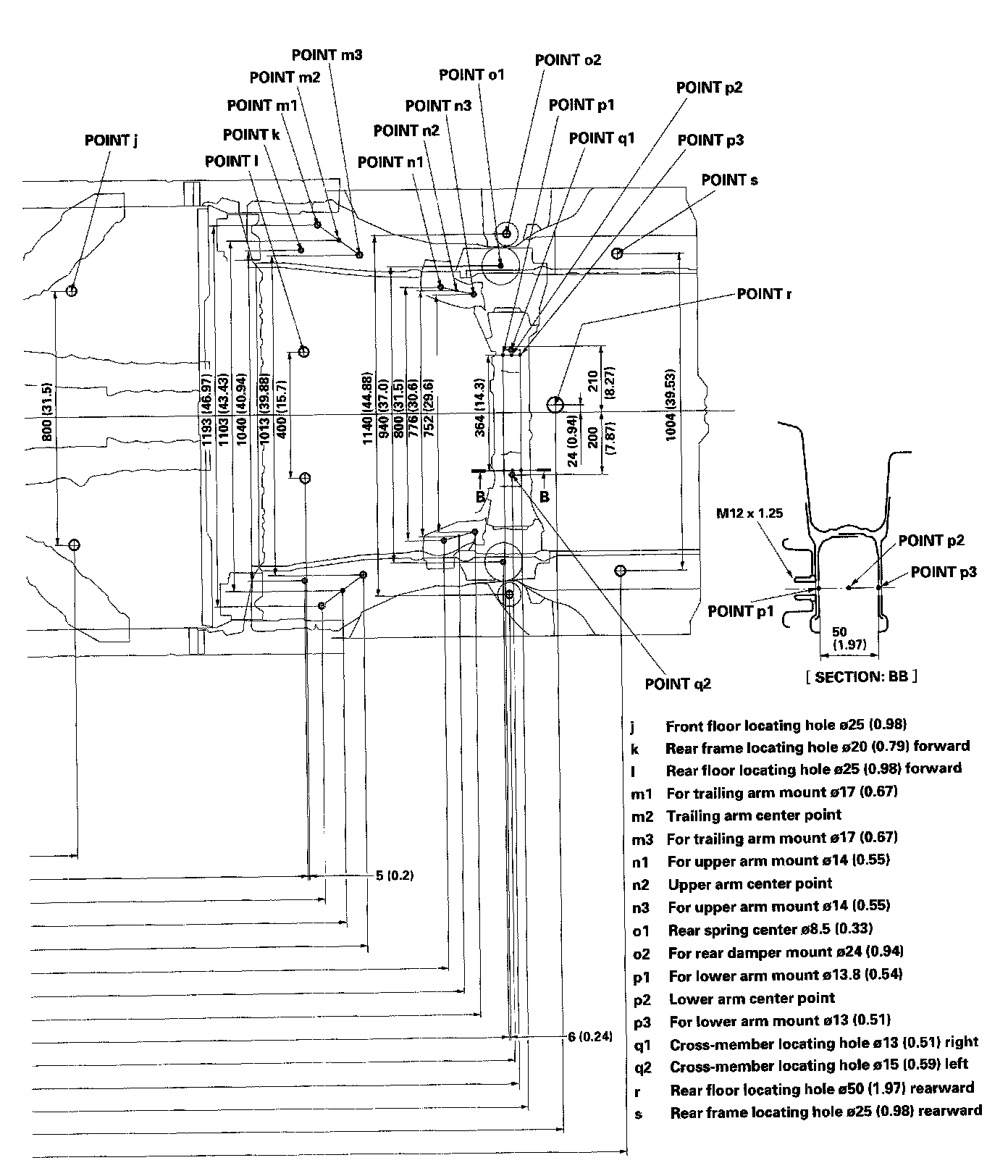

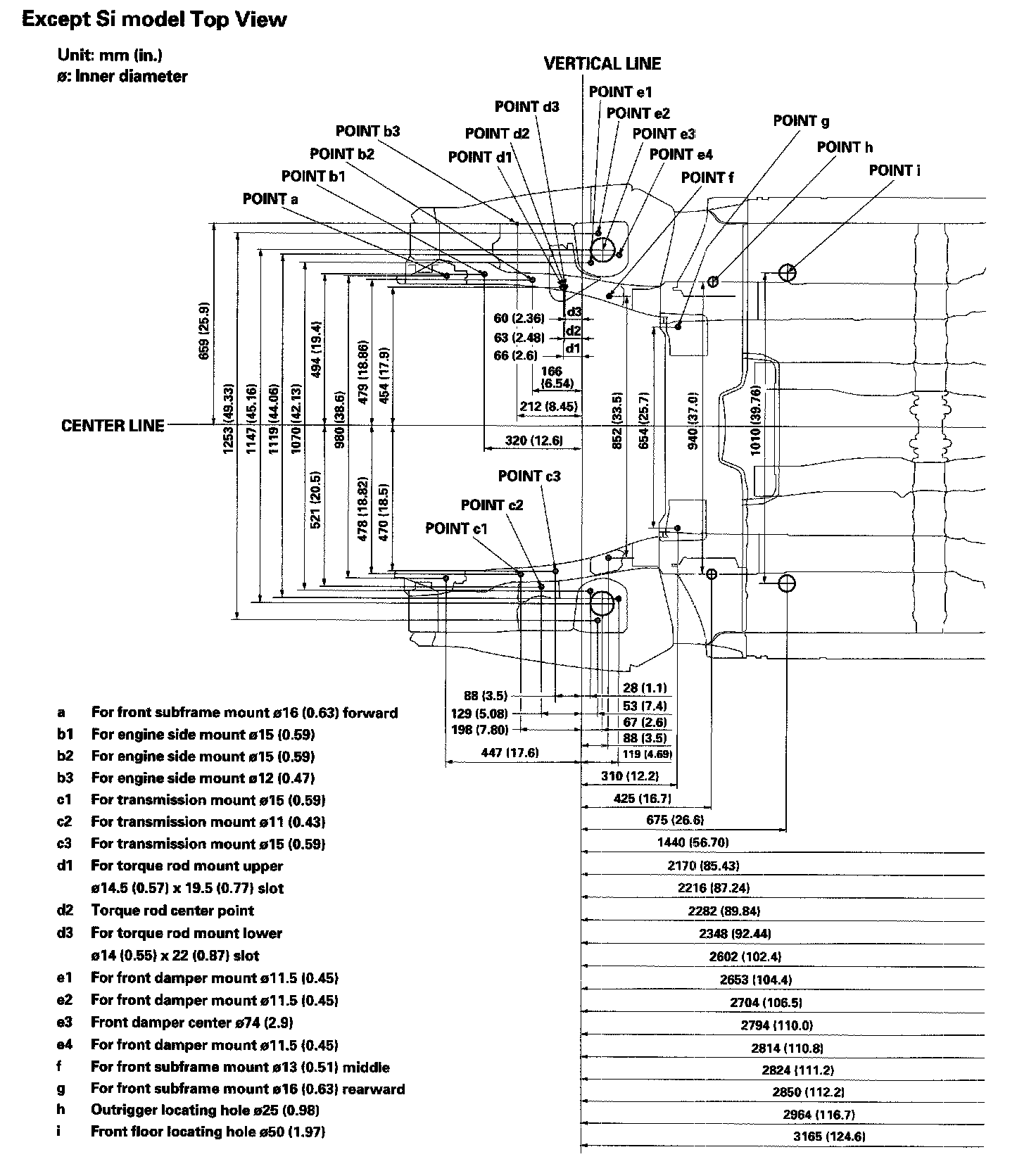

Frame Repair Chart, Top View (Part 1):



Frame Repair Chart, Top View (Part 2):

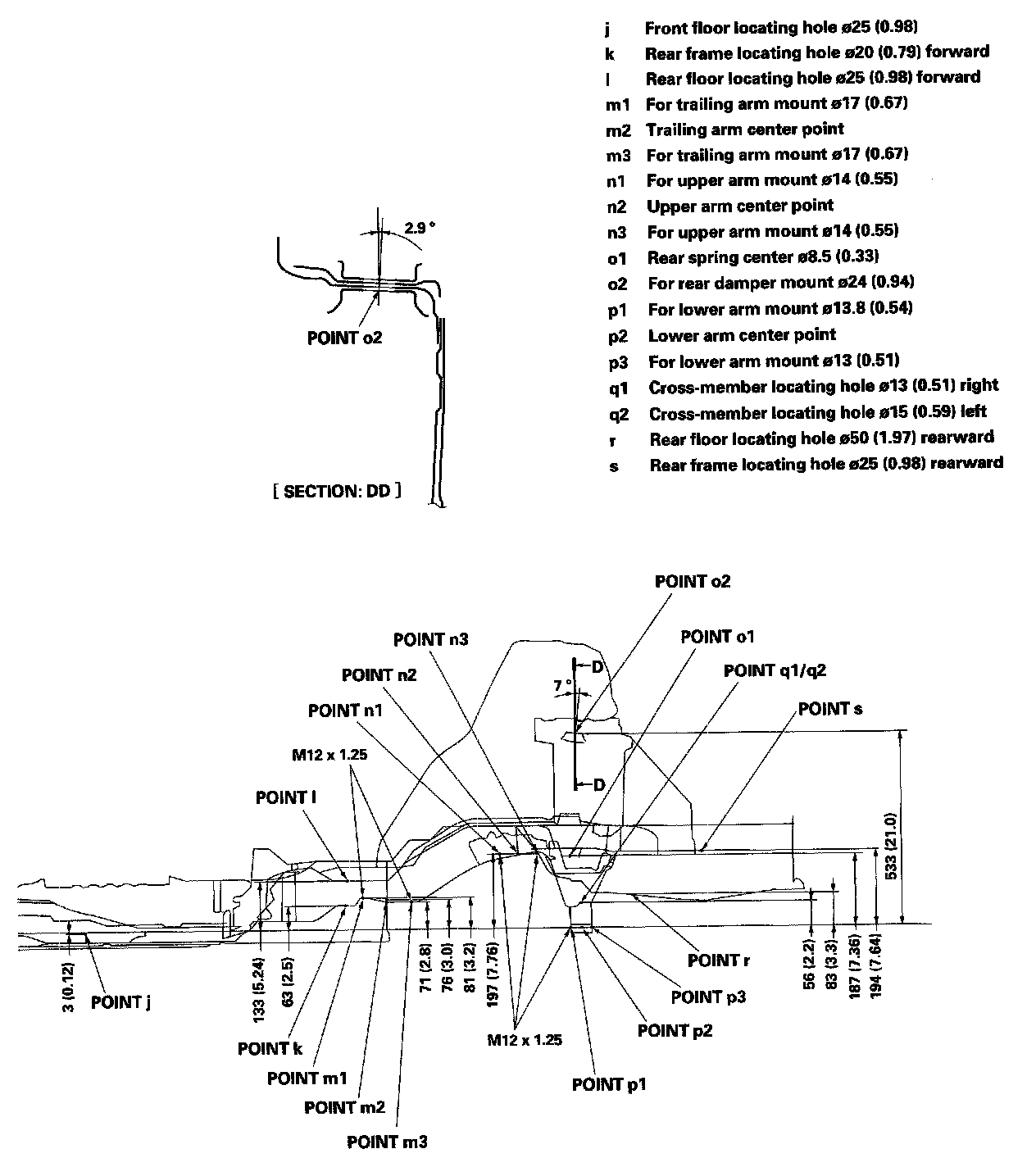

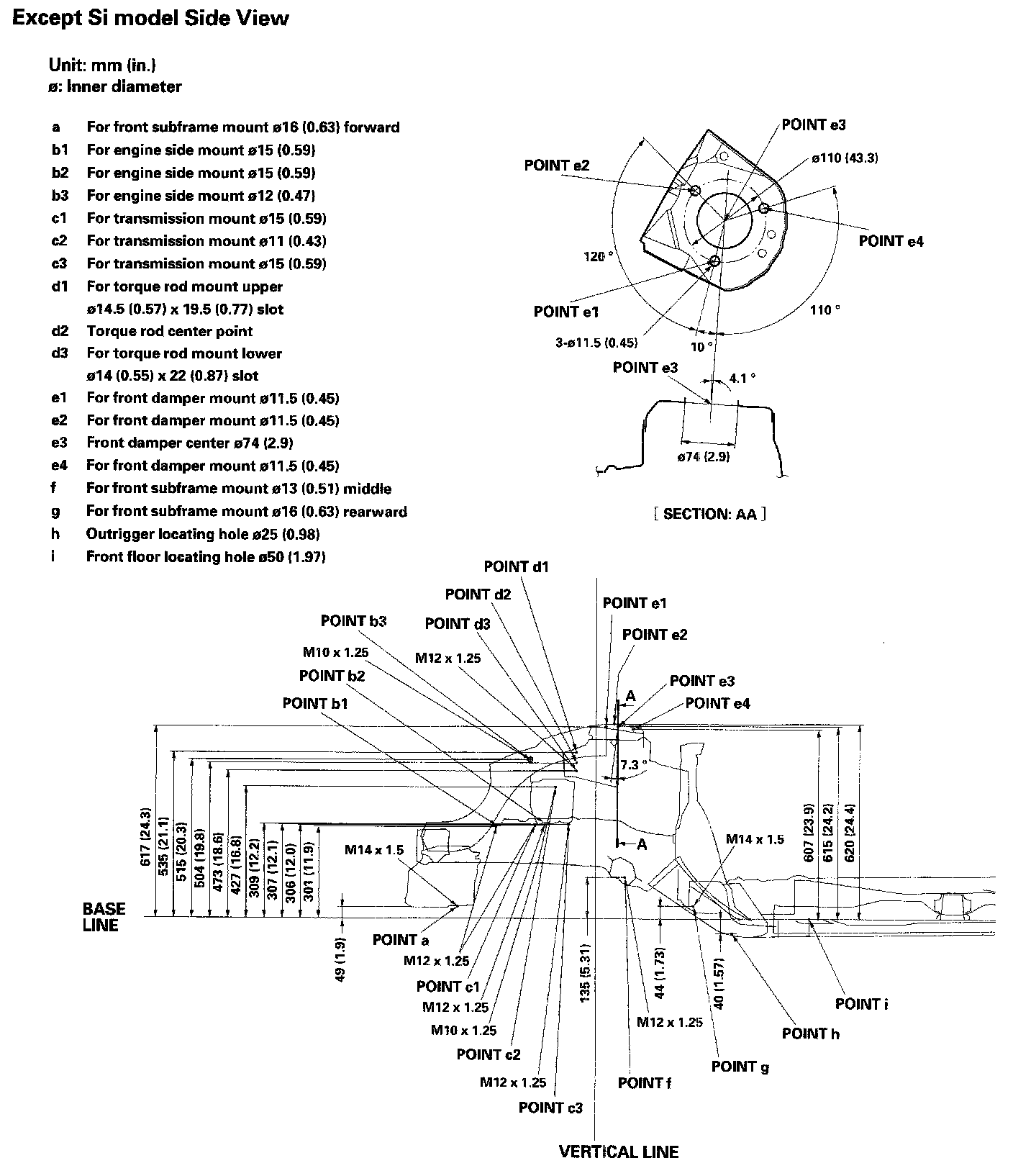

Frame Repair Chart, Side View (Part 1):



Frame Repair Chart, Side View (Part 2):
