Control Module Pinout Values, VSA
VSA Modulator-
Control Unit
Inputs and Outputs for 37P Connector

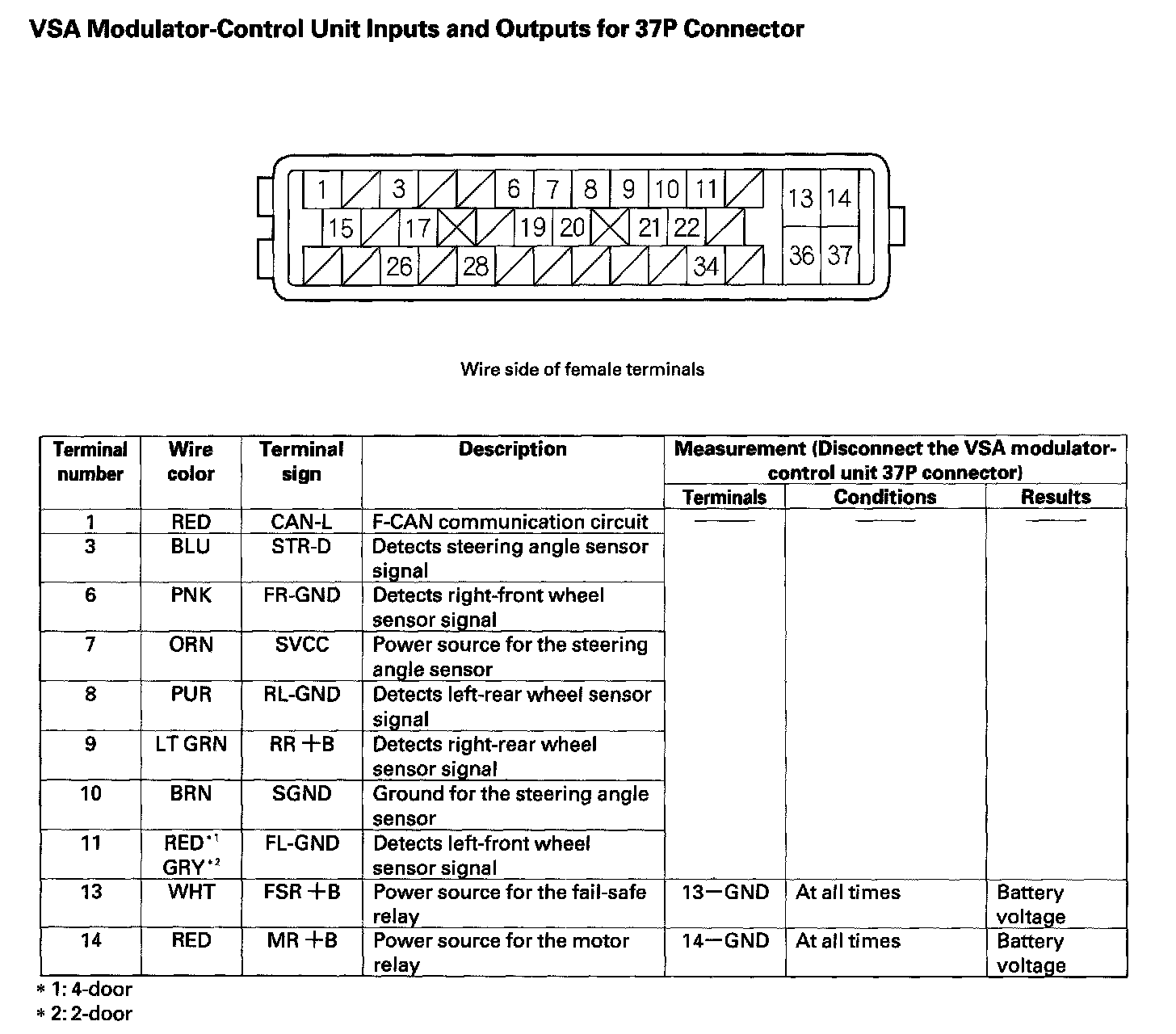

VSA Modulator-Control Unit Inputs And Outputs For 37P Connector (Part 1):

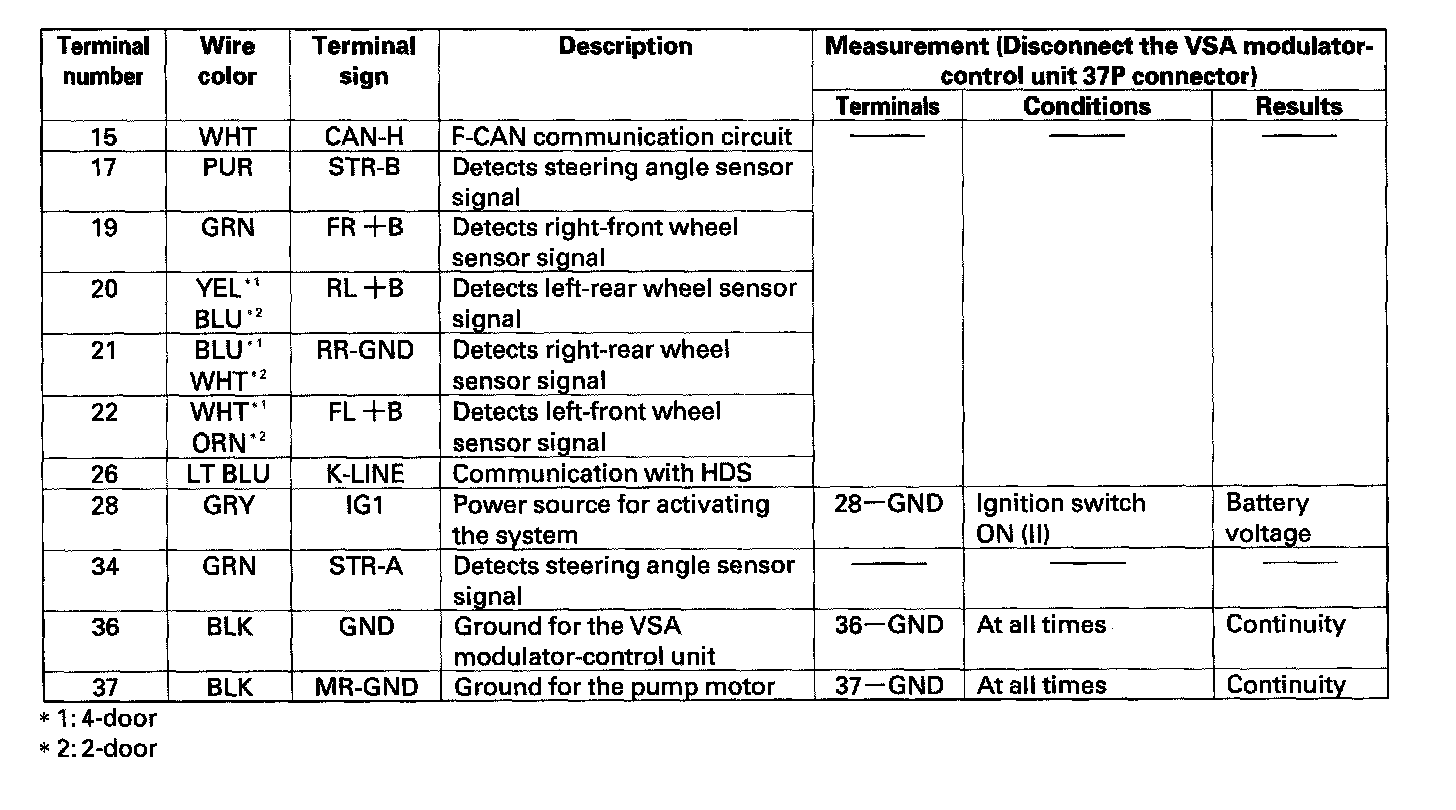

VSA Modulator-Control Unit Inputs And Outputs For 37P Connector (Part 2):
