Fuse Block

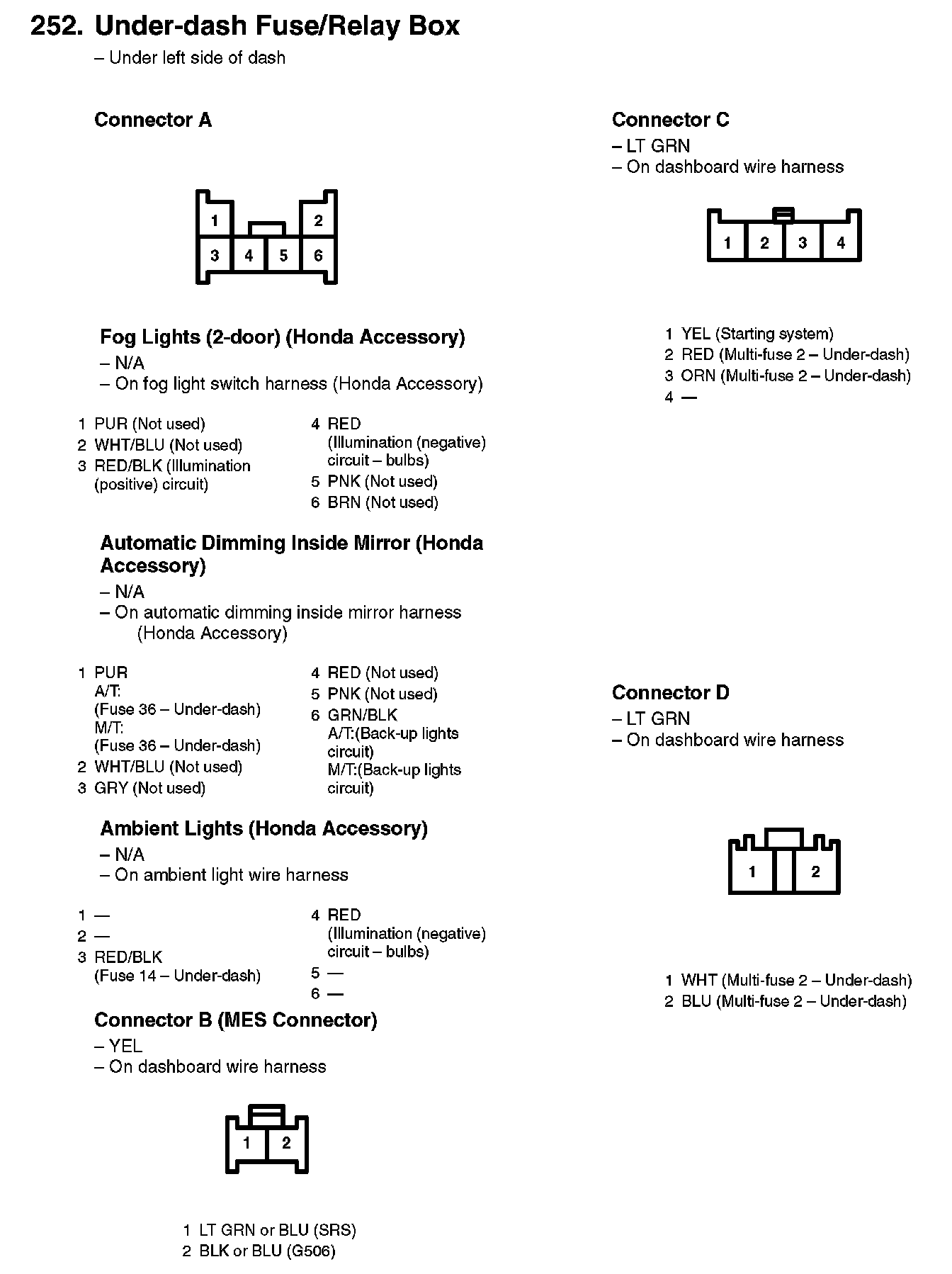

252. Under-dash Fuse/Relay Box:

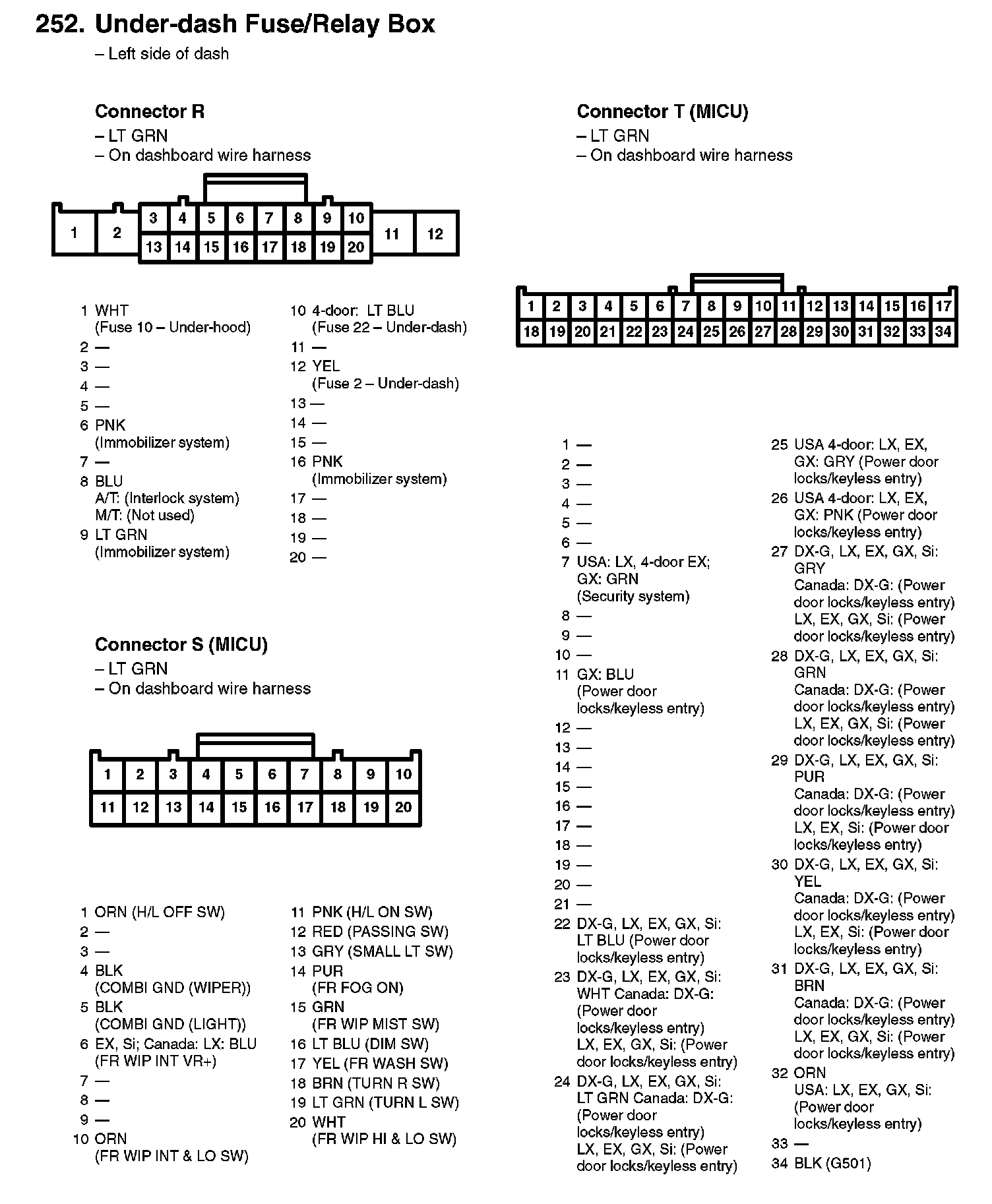

252. Under-dash Fuse/Relay Box:

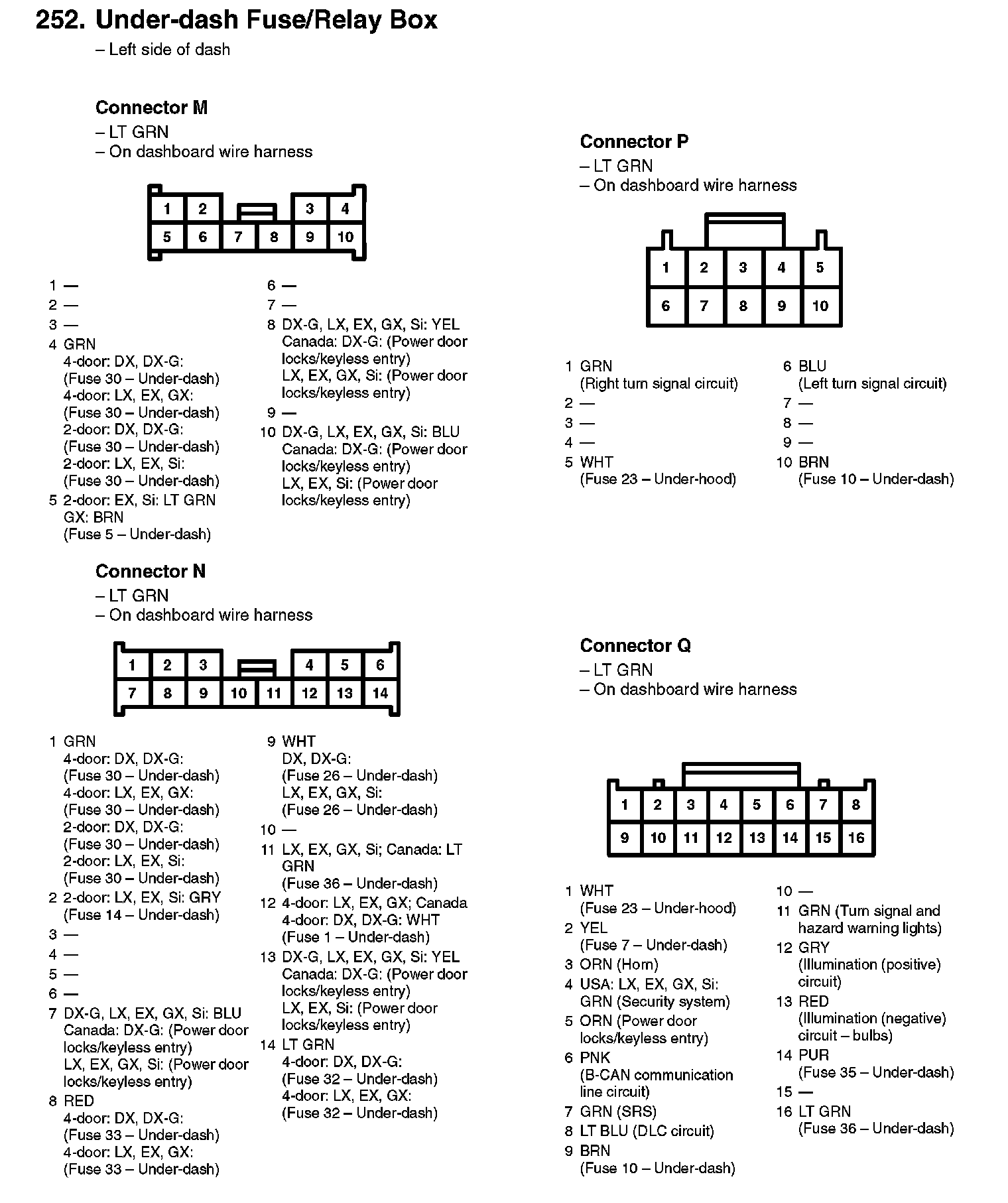

252. Under-dash Fuse/Relay Box:

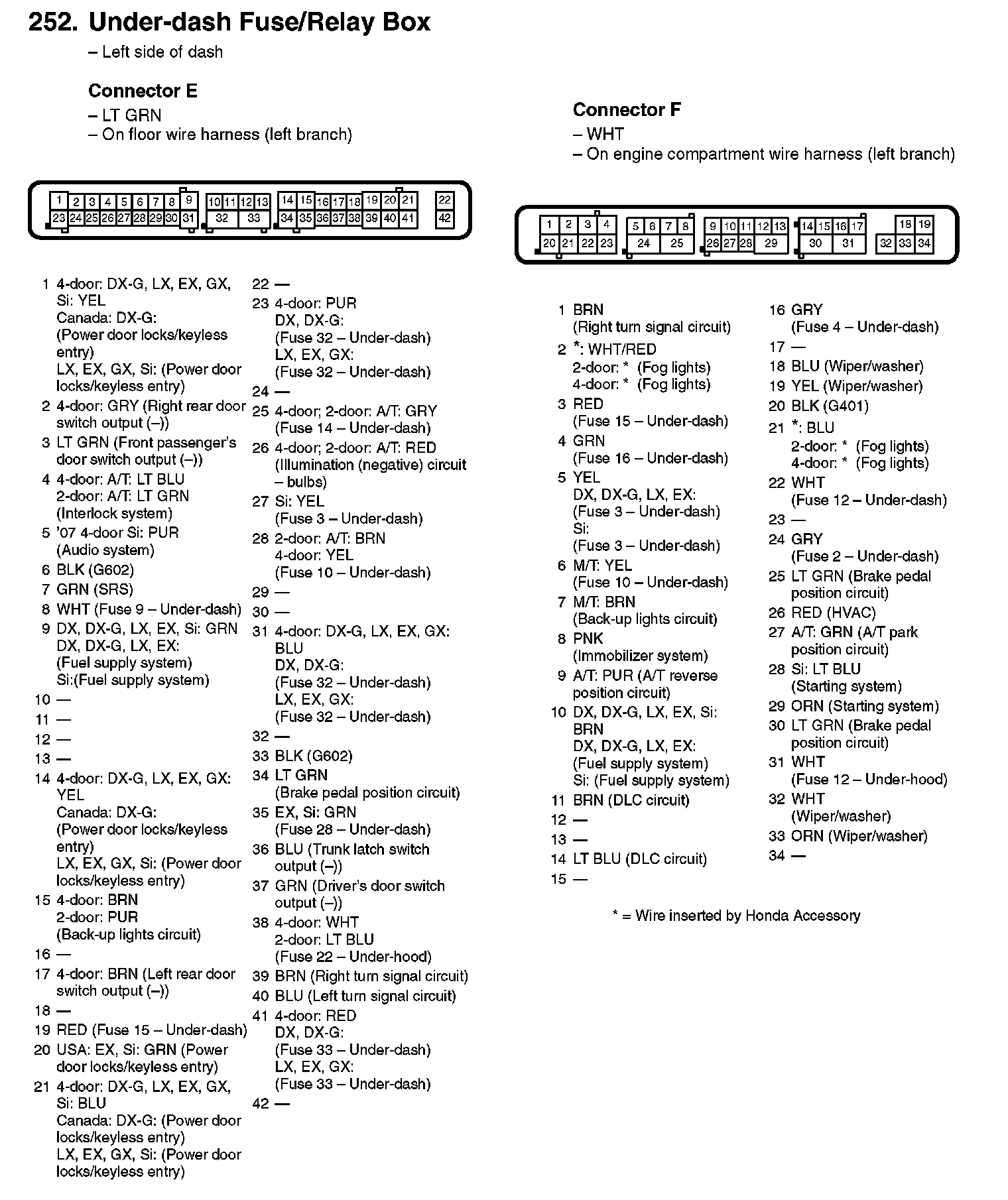

252. Under-dash Fuse/Relay Box:

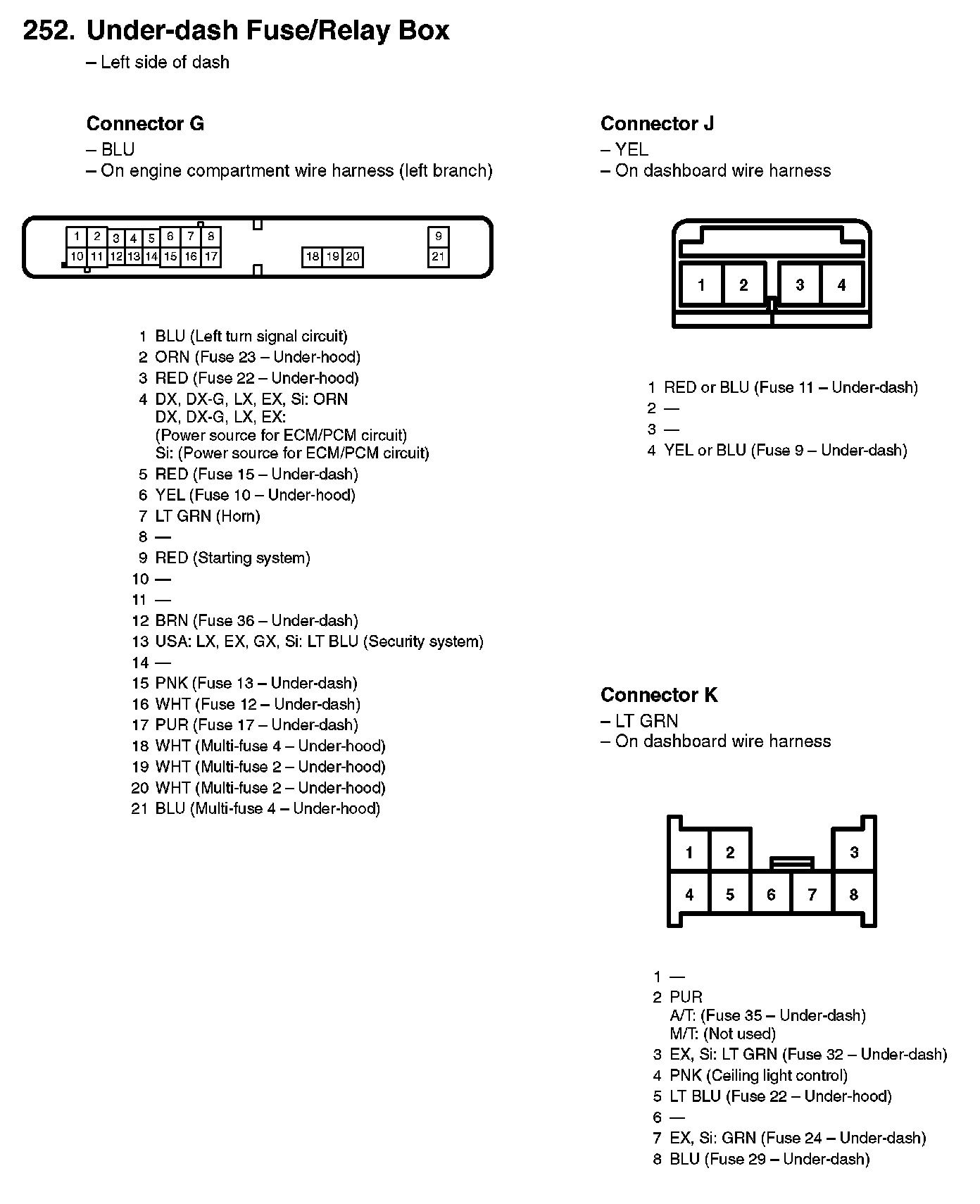

252. Under-dash Fuse/Relay Box:

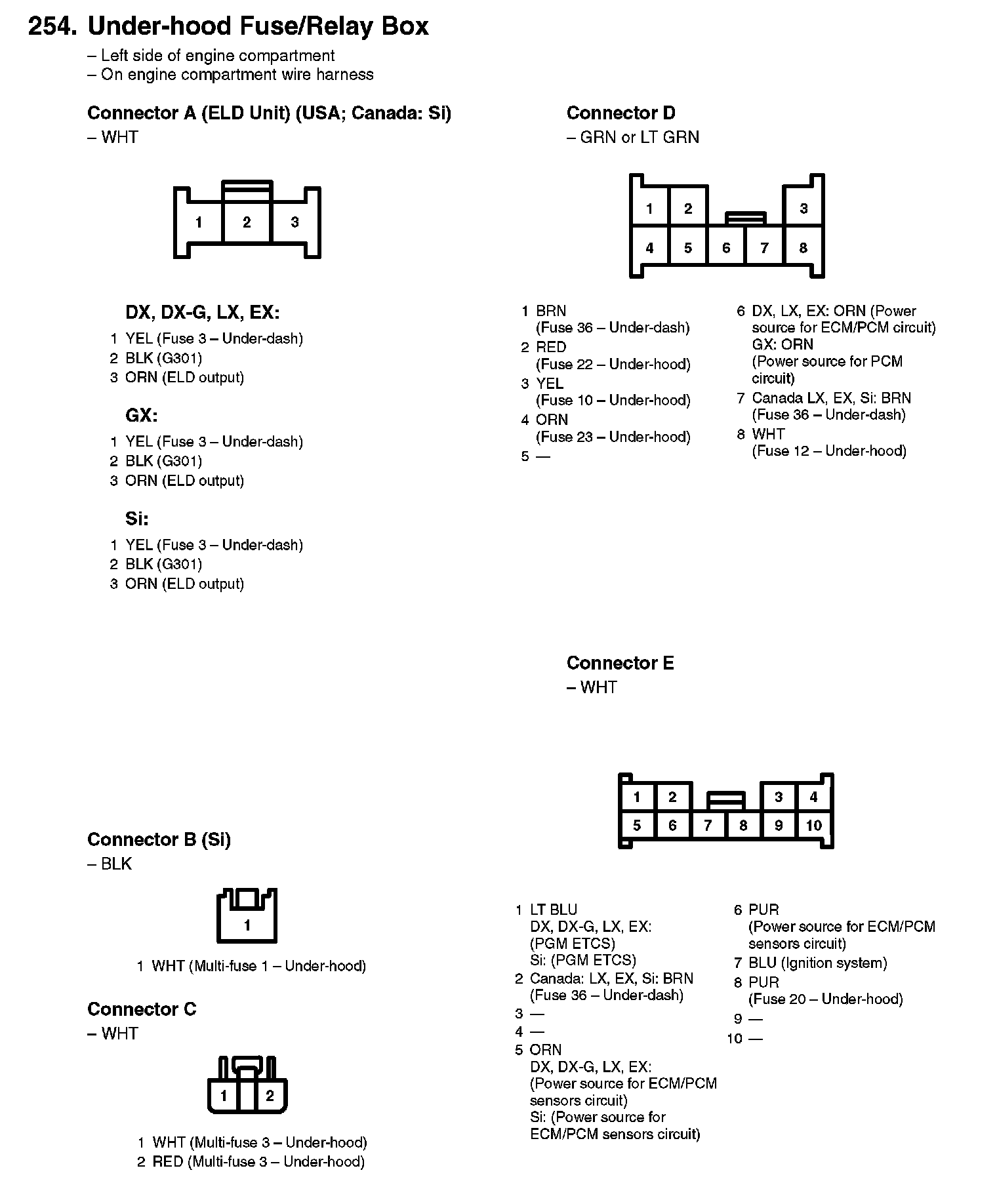

254. Under-hood Fuse/Relay Box:

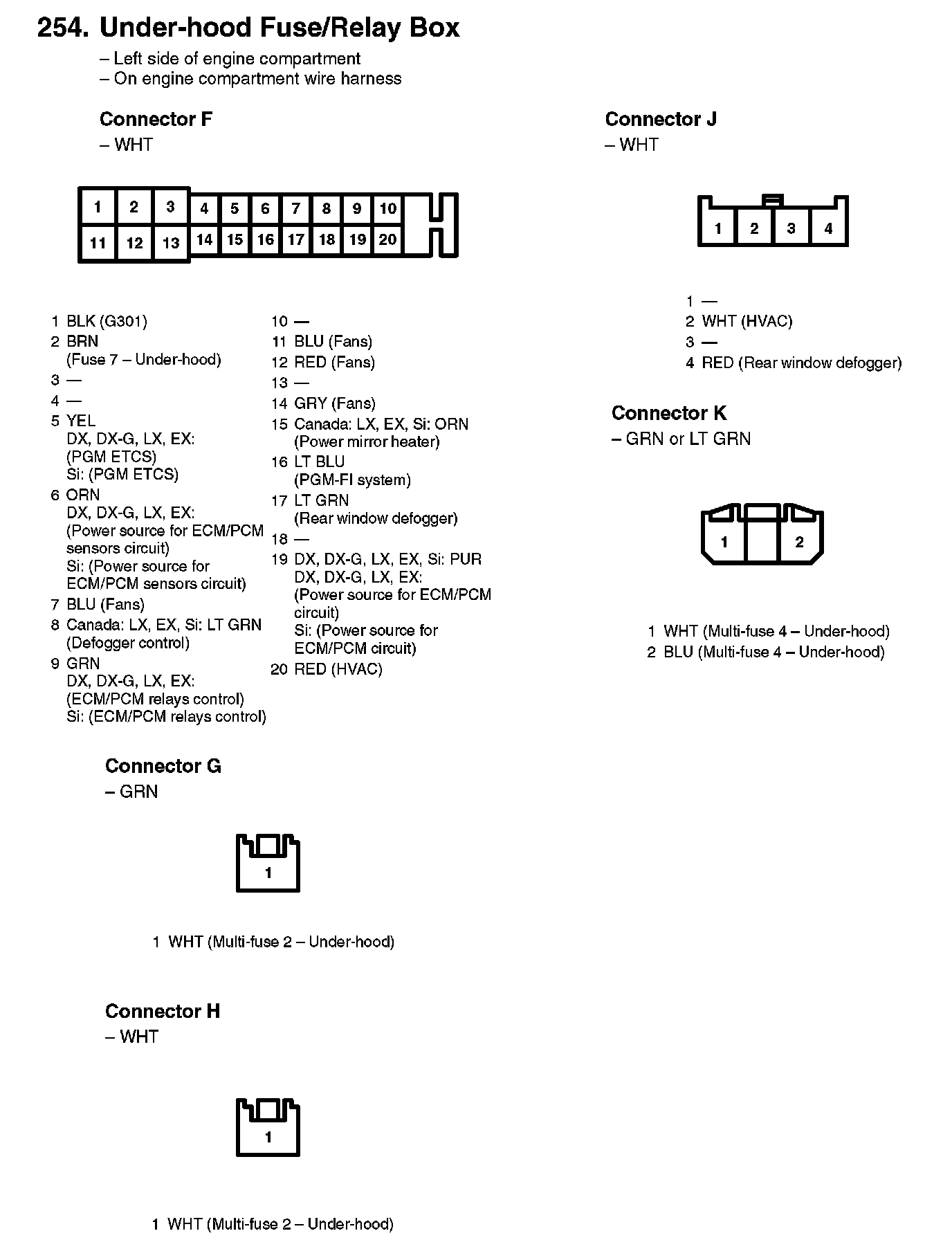

254. Under-hood Fuse/Relay Box:
