Cylinder Block Assembly

Component Location Index

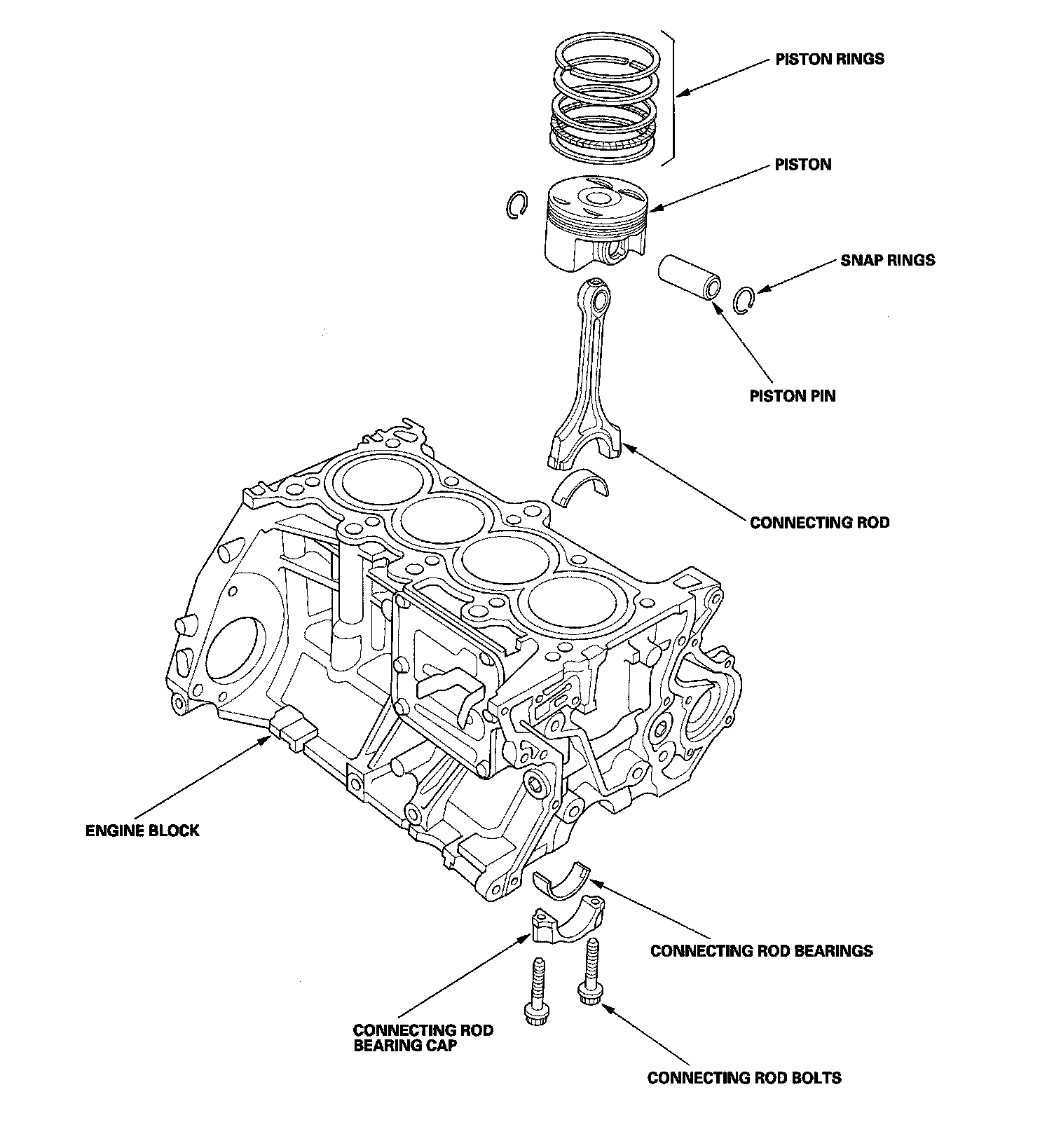

Engine Block Component Location Index (Part 1):

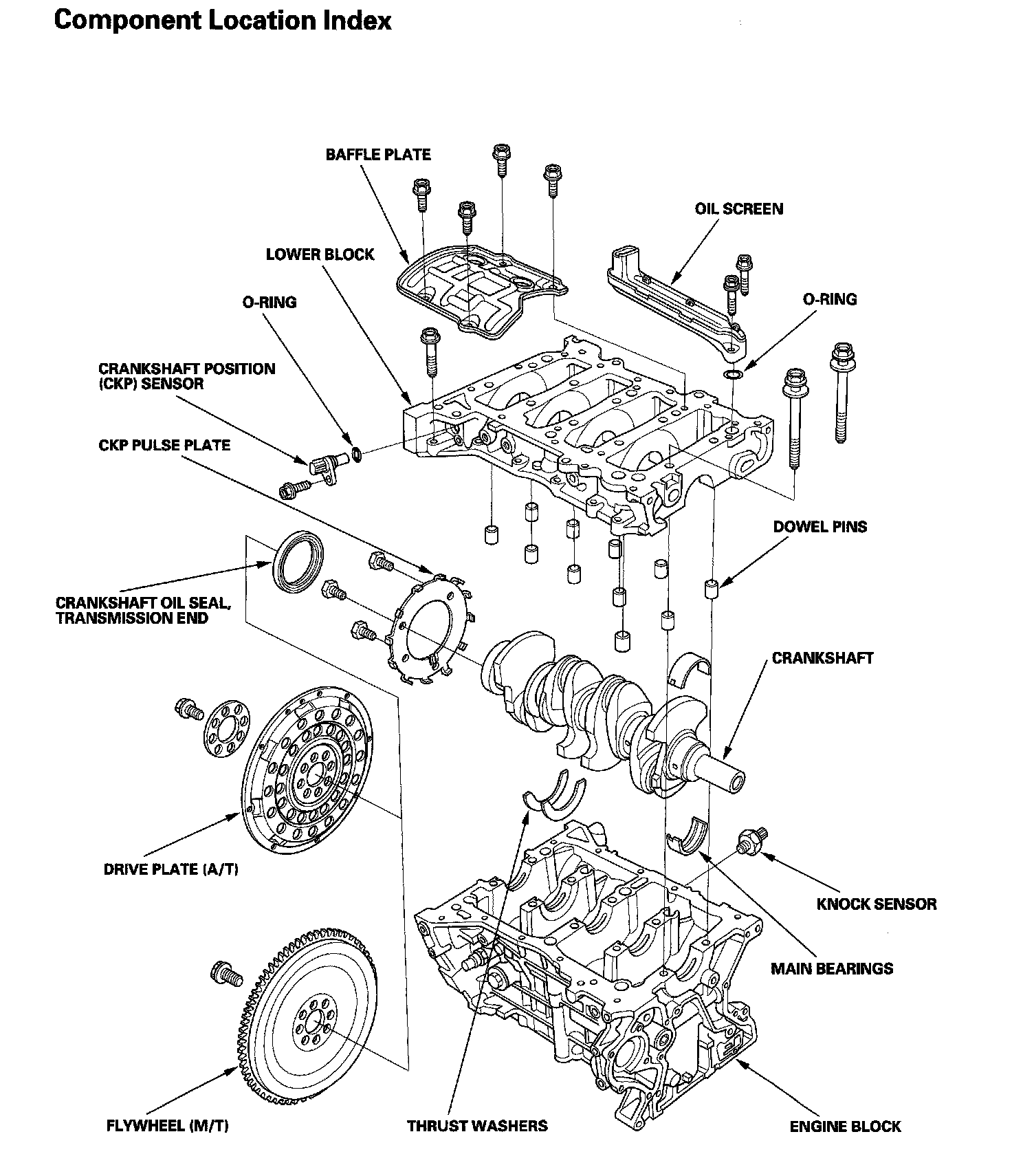

Engine Block Component Location Index (Part 2):
