ECM/PCM Inputs and Outputs

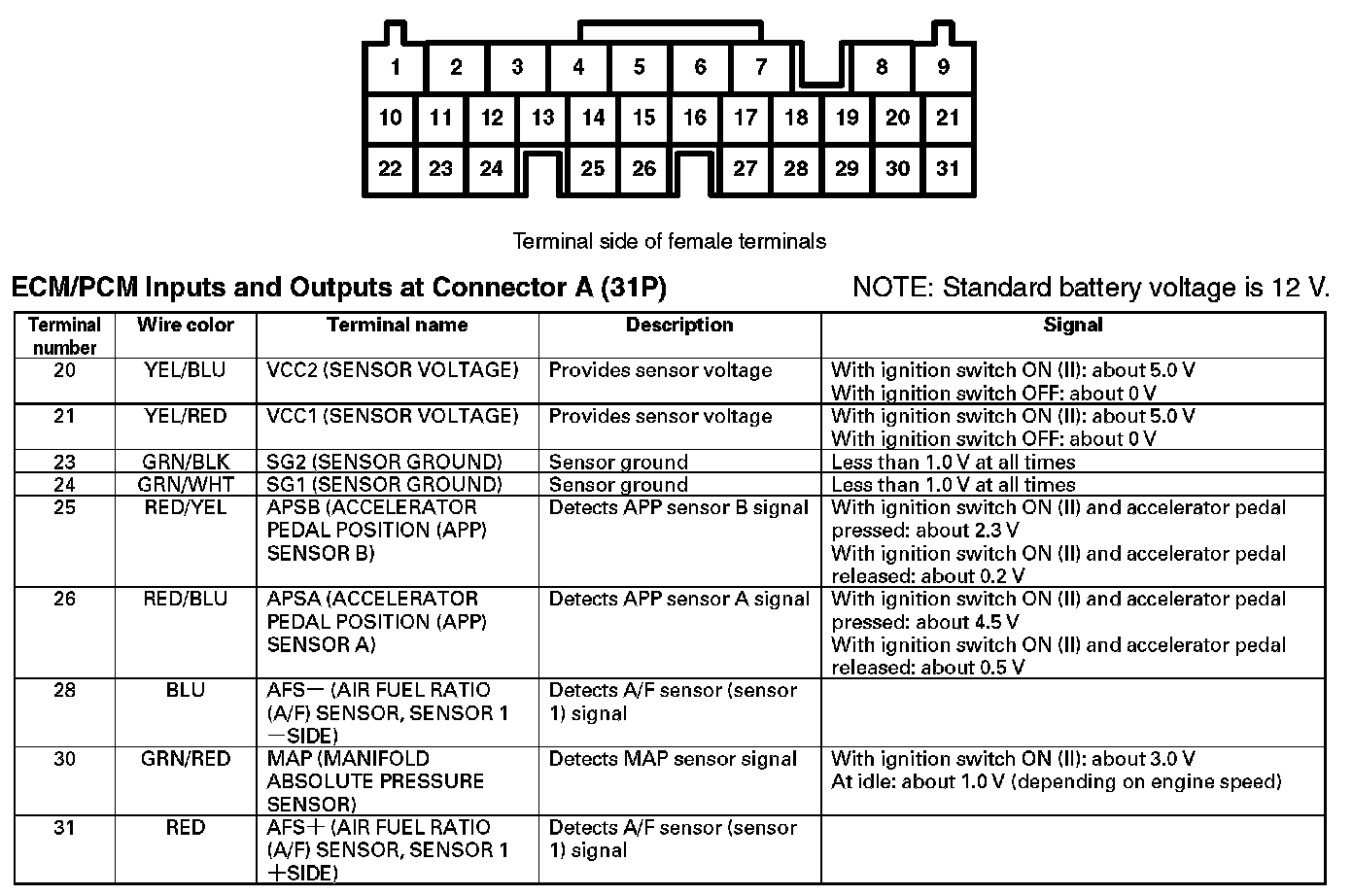

ECM/PCM Inputs And Outputs At Connector A (31P) (Part 1):

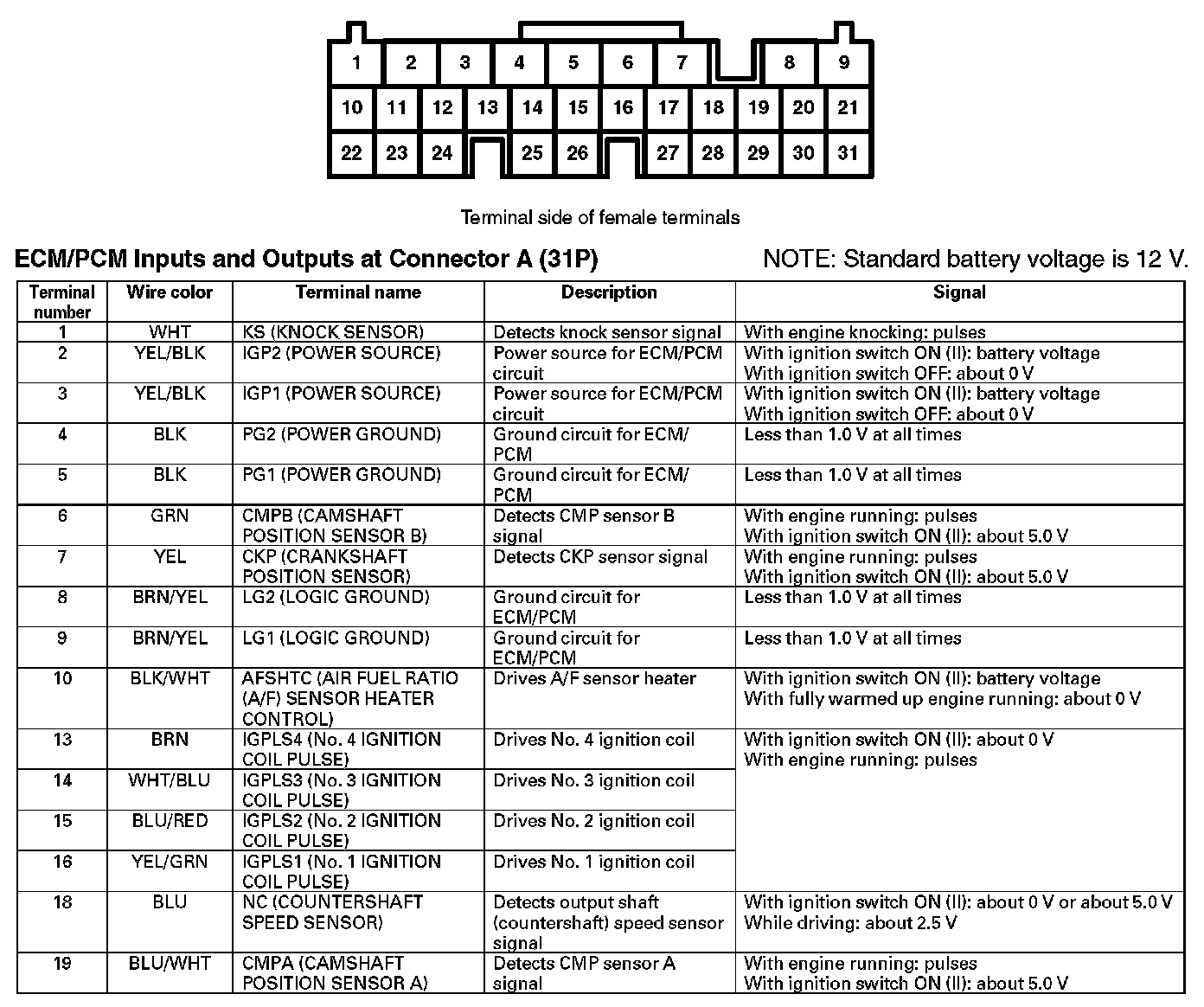

ECM/PCM Inputs And Outputs At Connector A (31P) (Part 2):

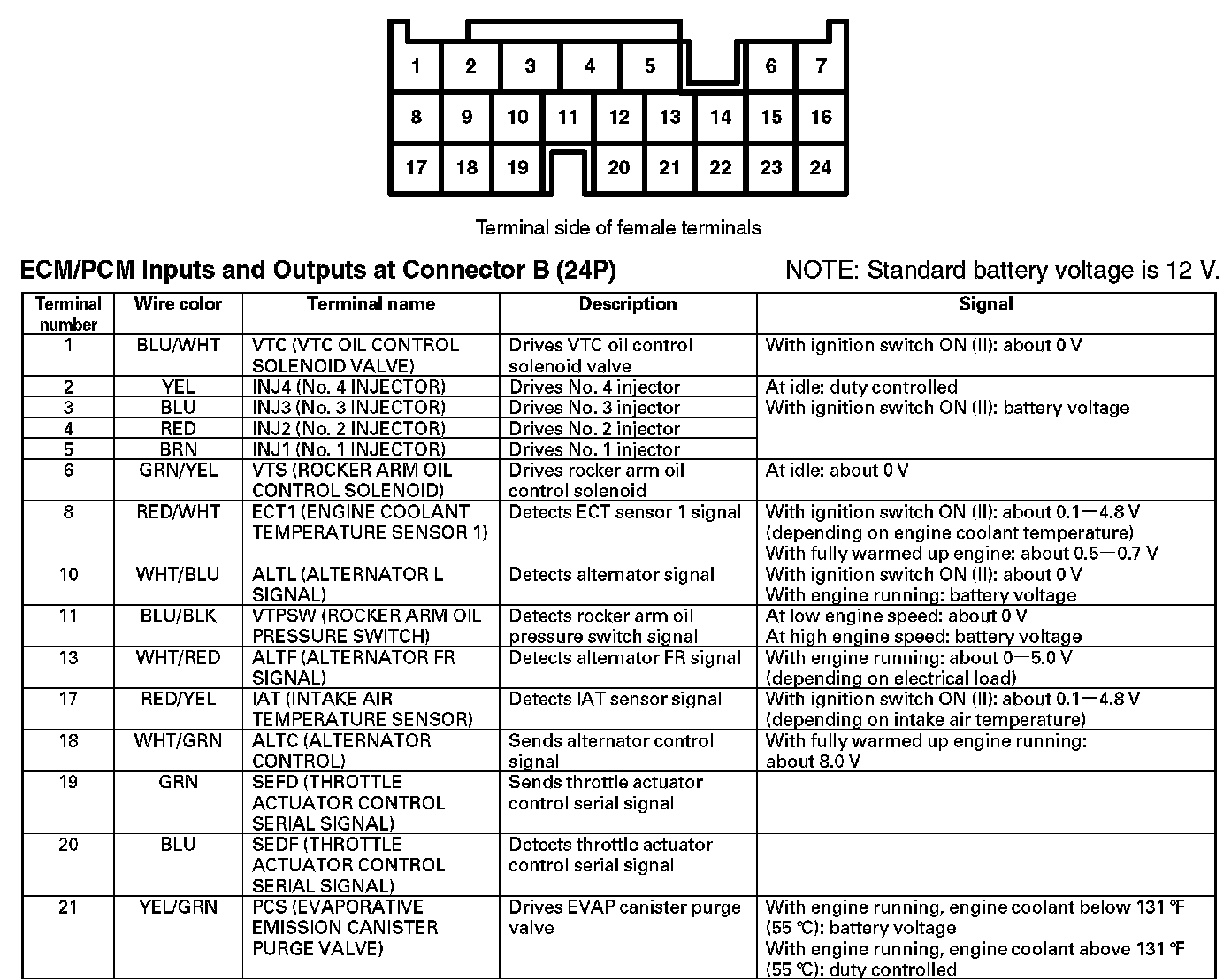

ECM/PCM Inputs And Outputs At Connector B (24P):

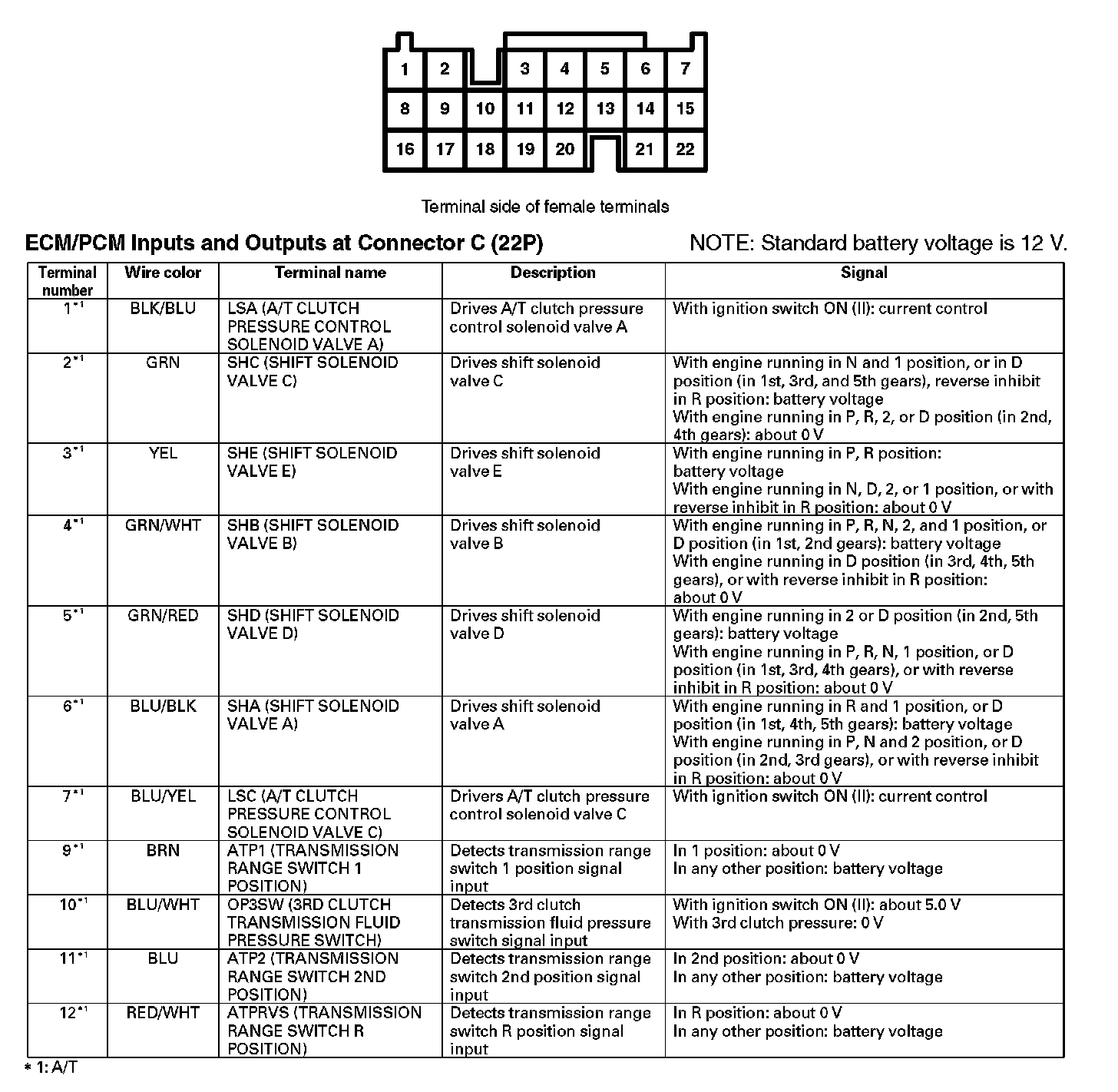

ECM/PCM Inputs And Outputs At Connector C (22P) (Part 1):

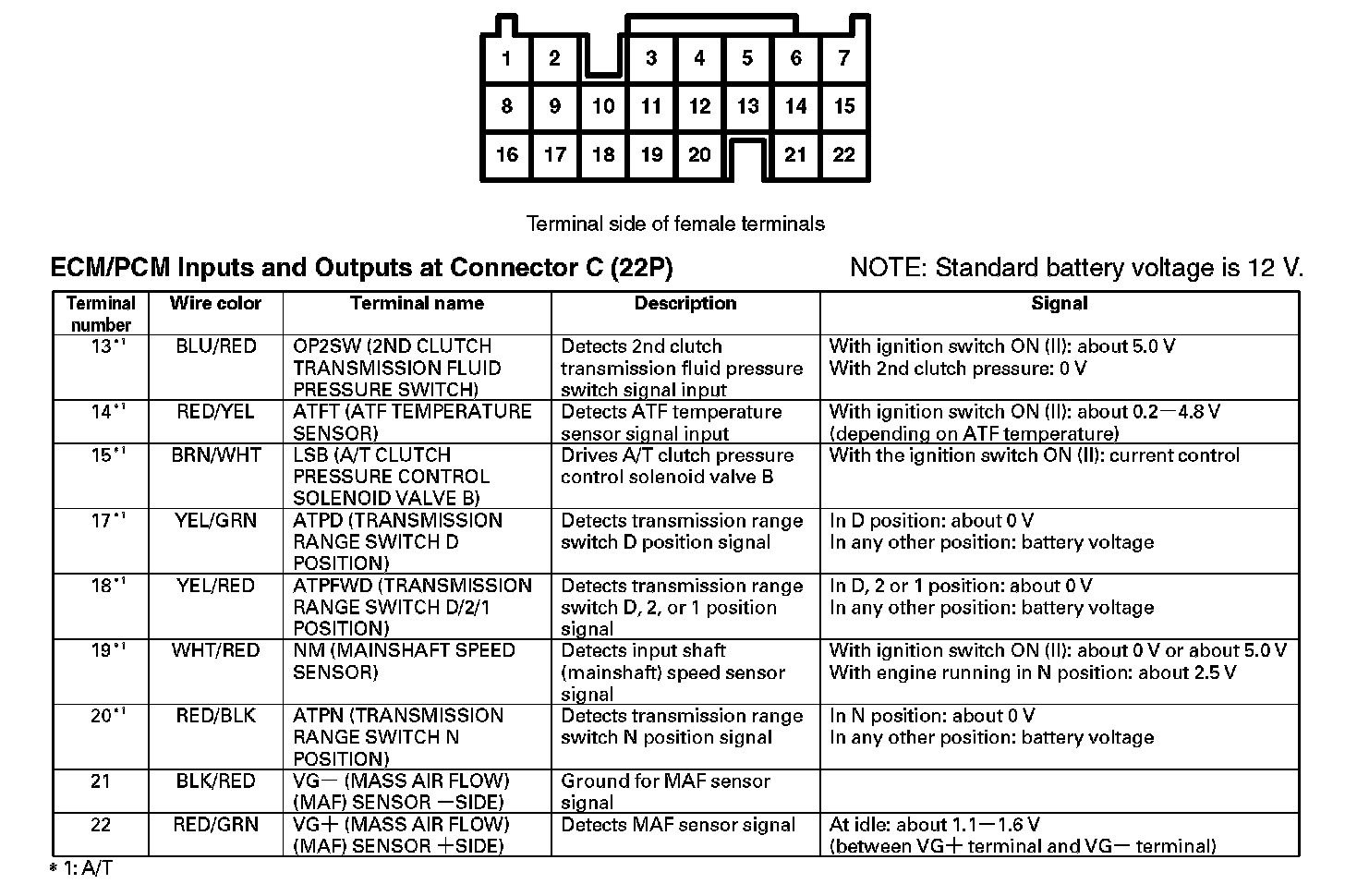

ECM/PCM Inputs And Outputs At Connector C (22P) (Part 2):

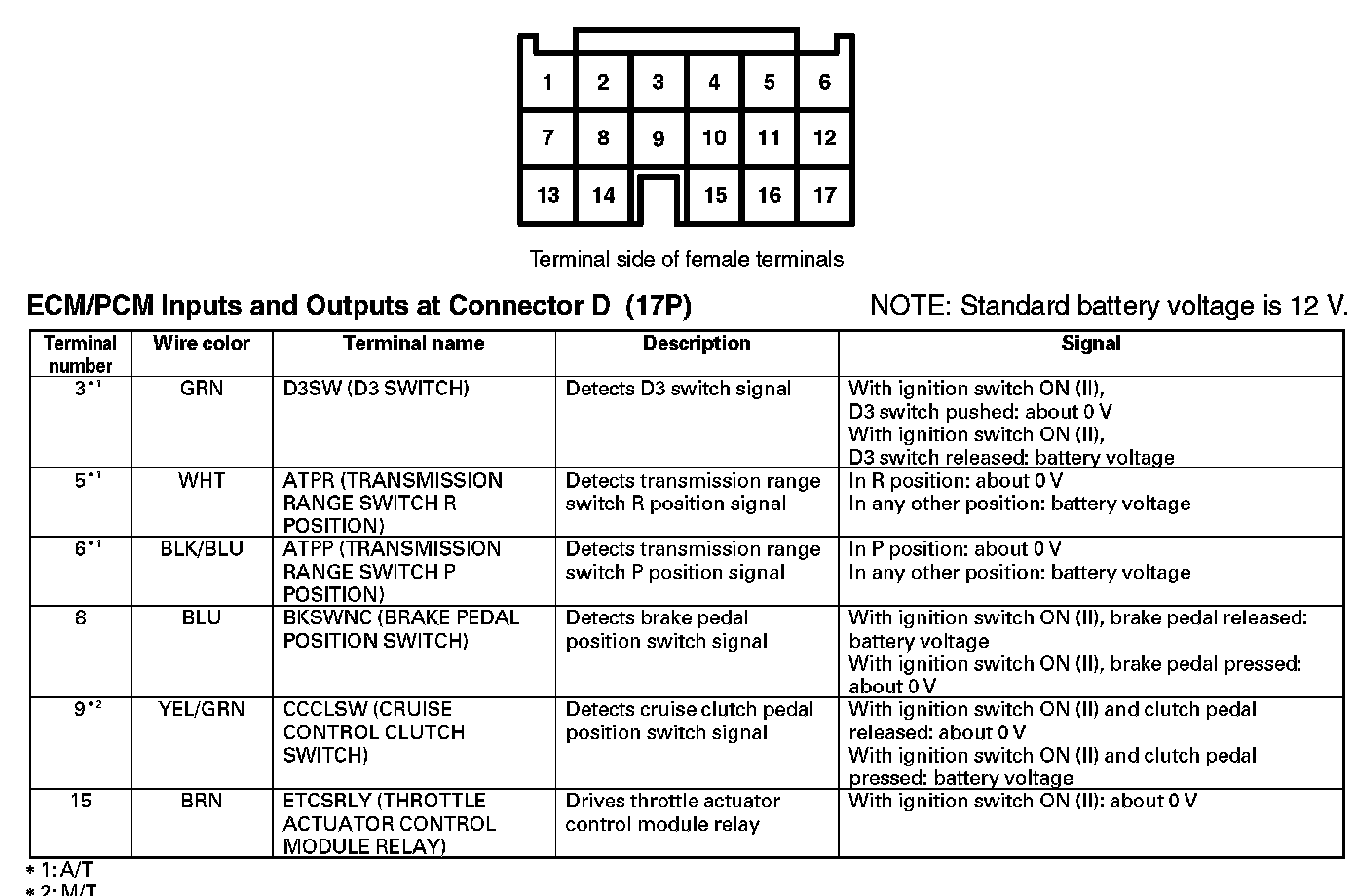

ECM/PCM Inputs And Outputs At Connector D (17P):

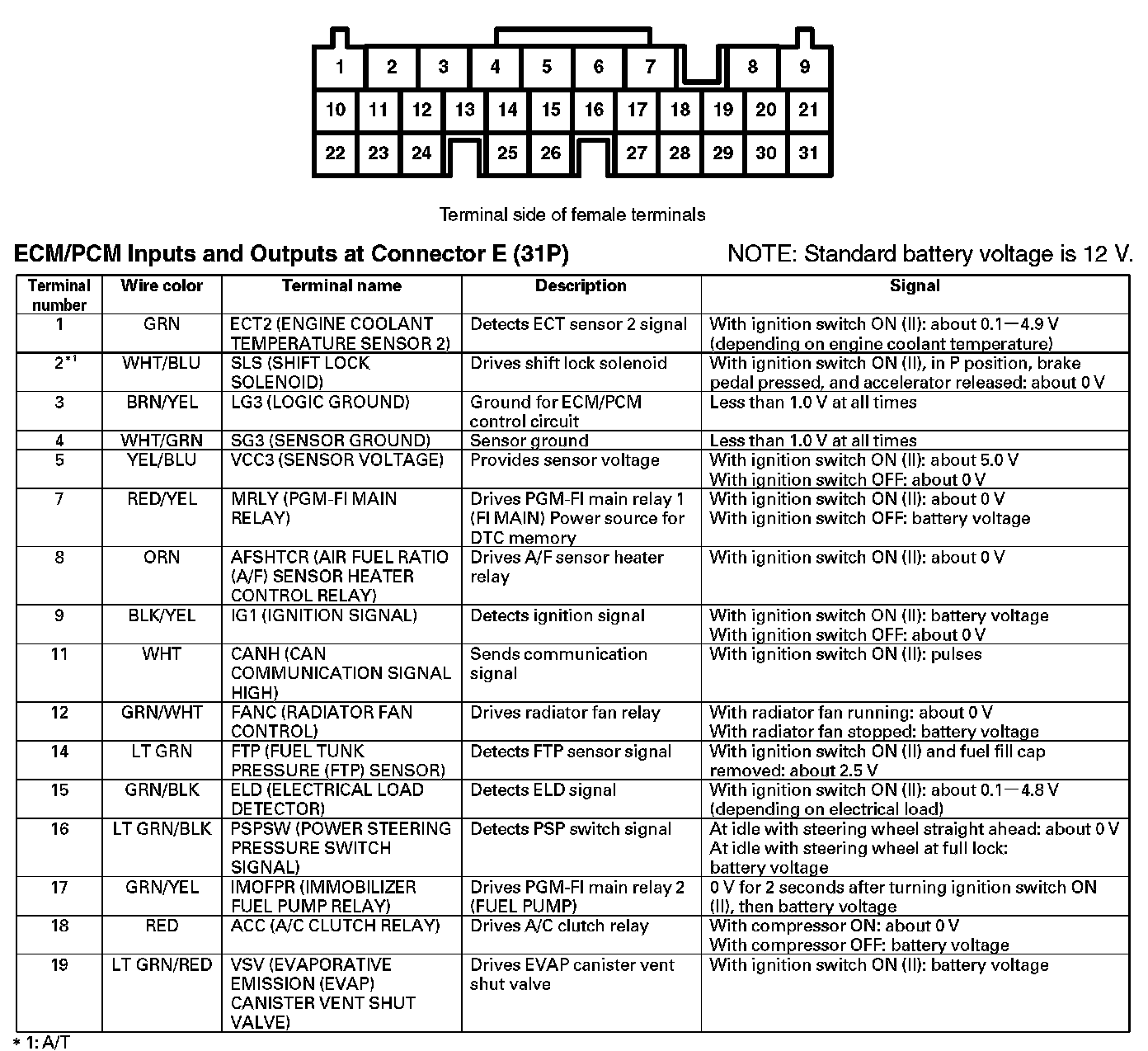

ECM/PCM Inputs And Outputs At Connector E (31P) (Part 1):

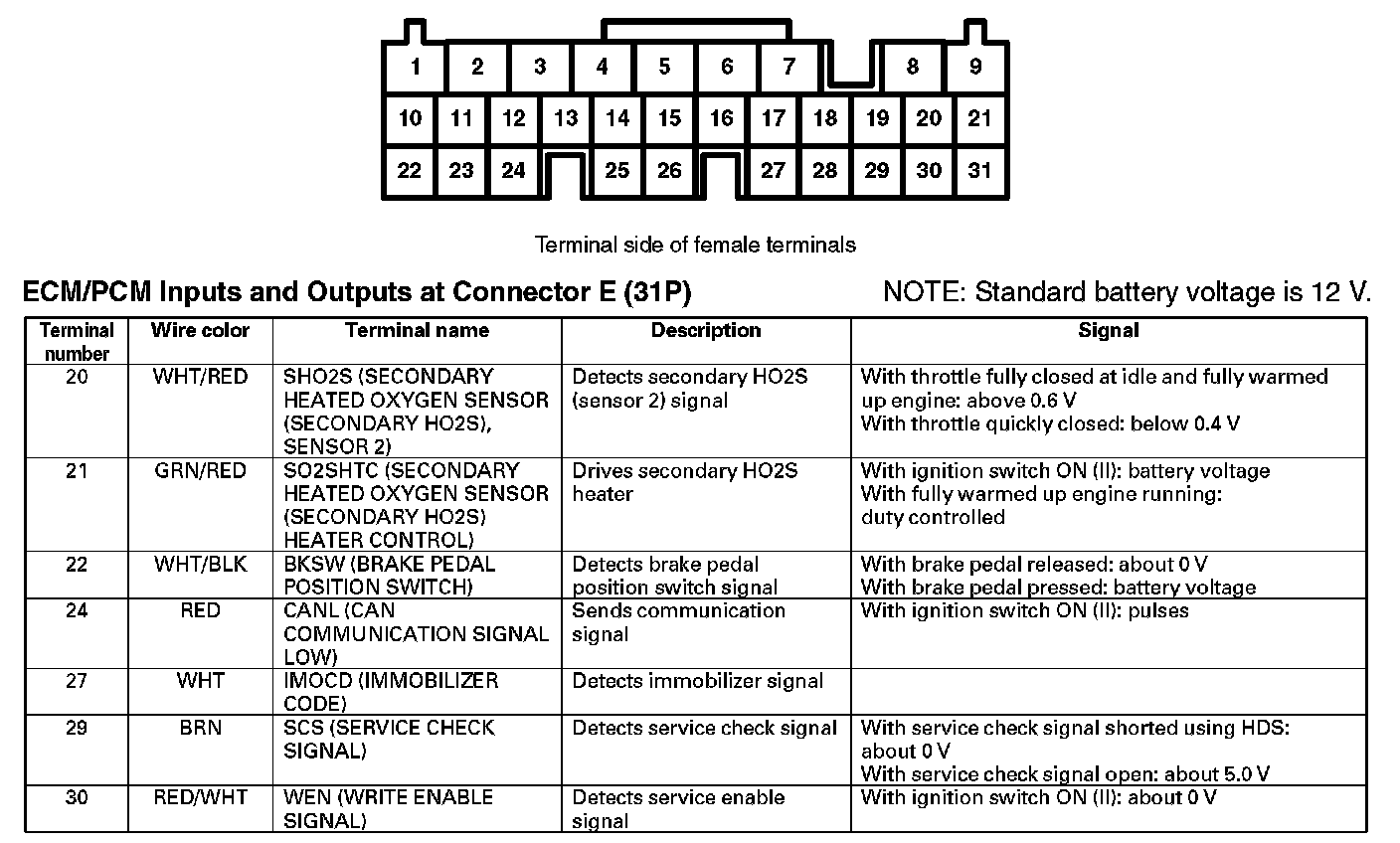

ECM/PCM Inputs And Outputs At Connector E (31P) (Part 2):
