Home >> Honda >> 2007 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Receiver

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

Keyless Entry Receiver

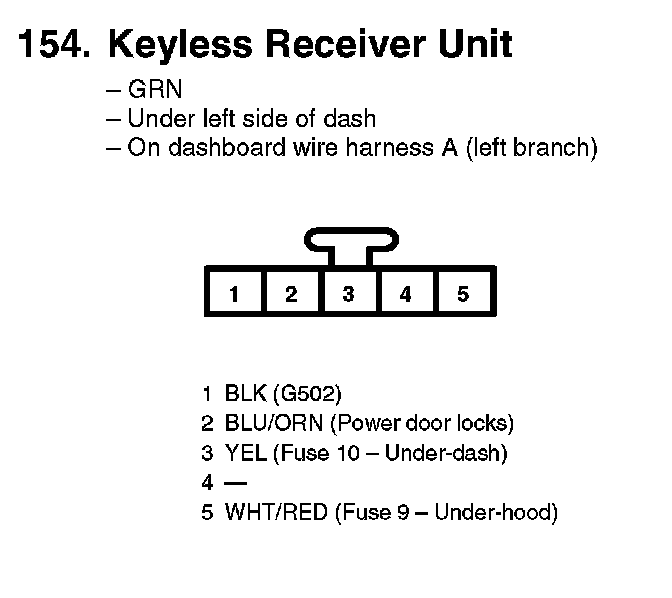

154. Keyless Receiver Unit:
