Pinout Values and Diagnostic Parameters

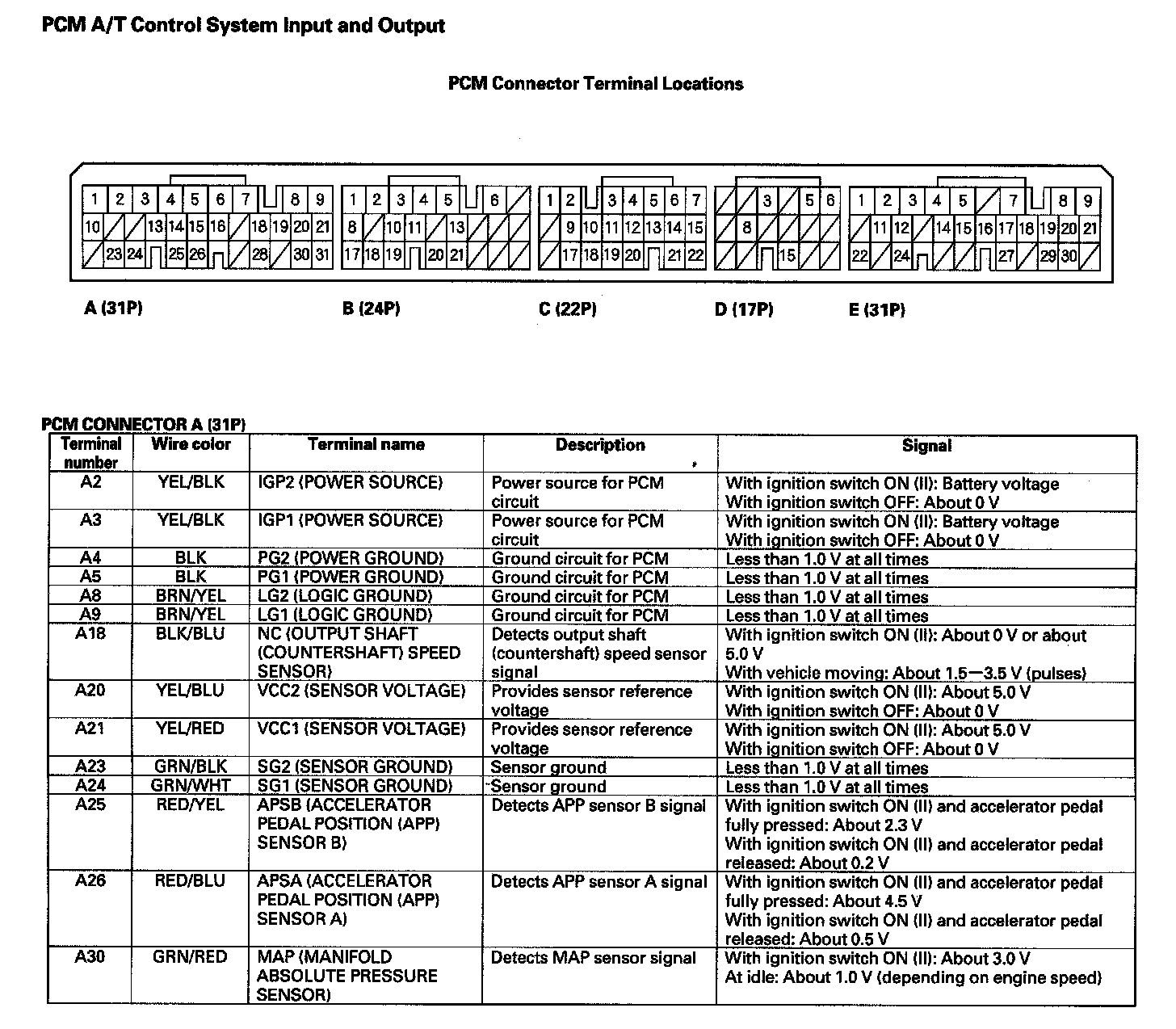

PCM A/T Control System Input and Output (Part 1):

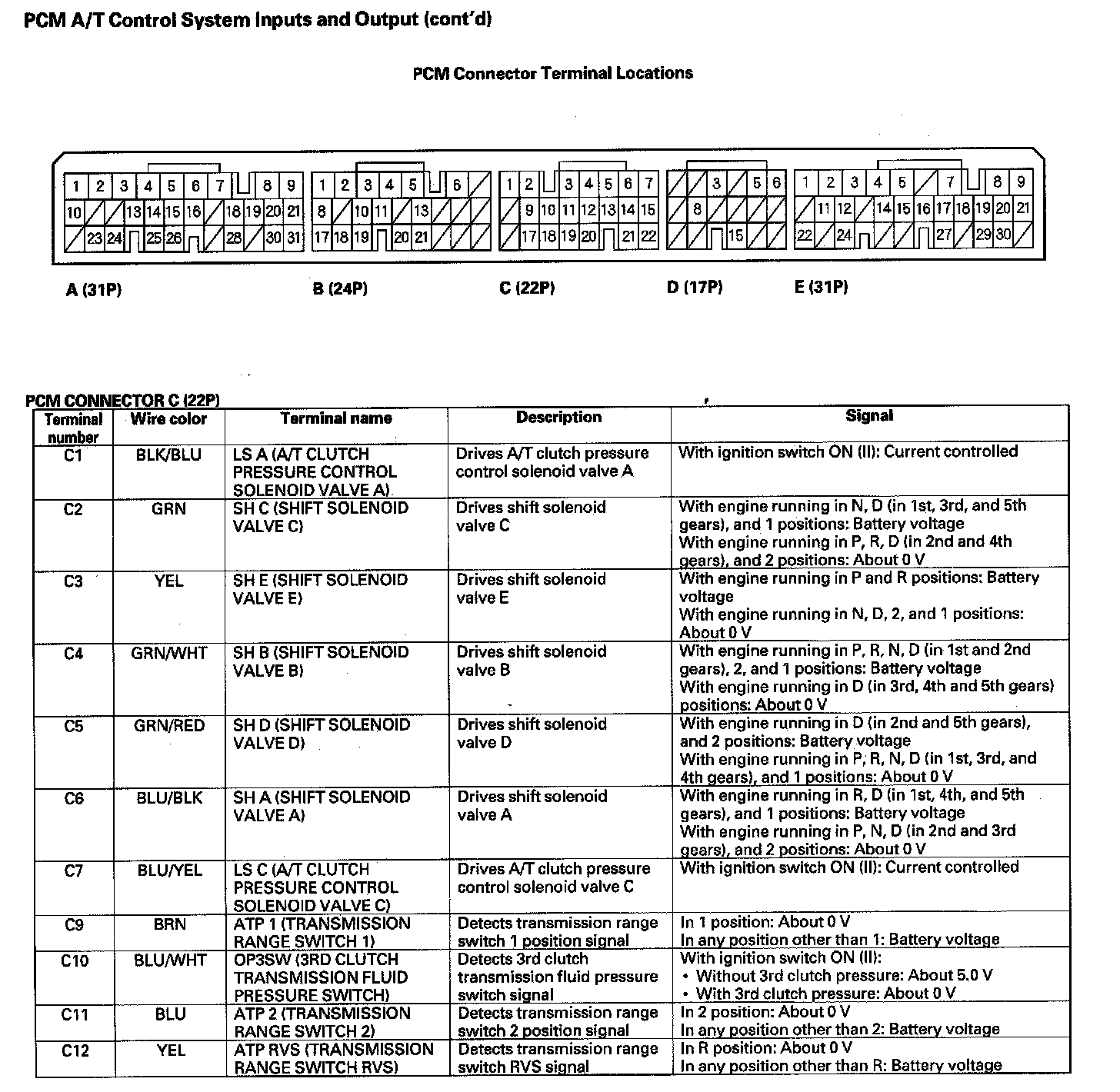

PCM A/T Control System Input and Output (Part 2):

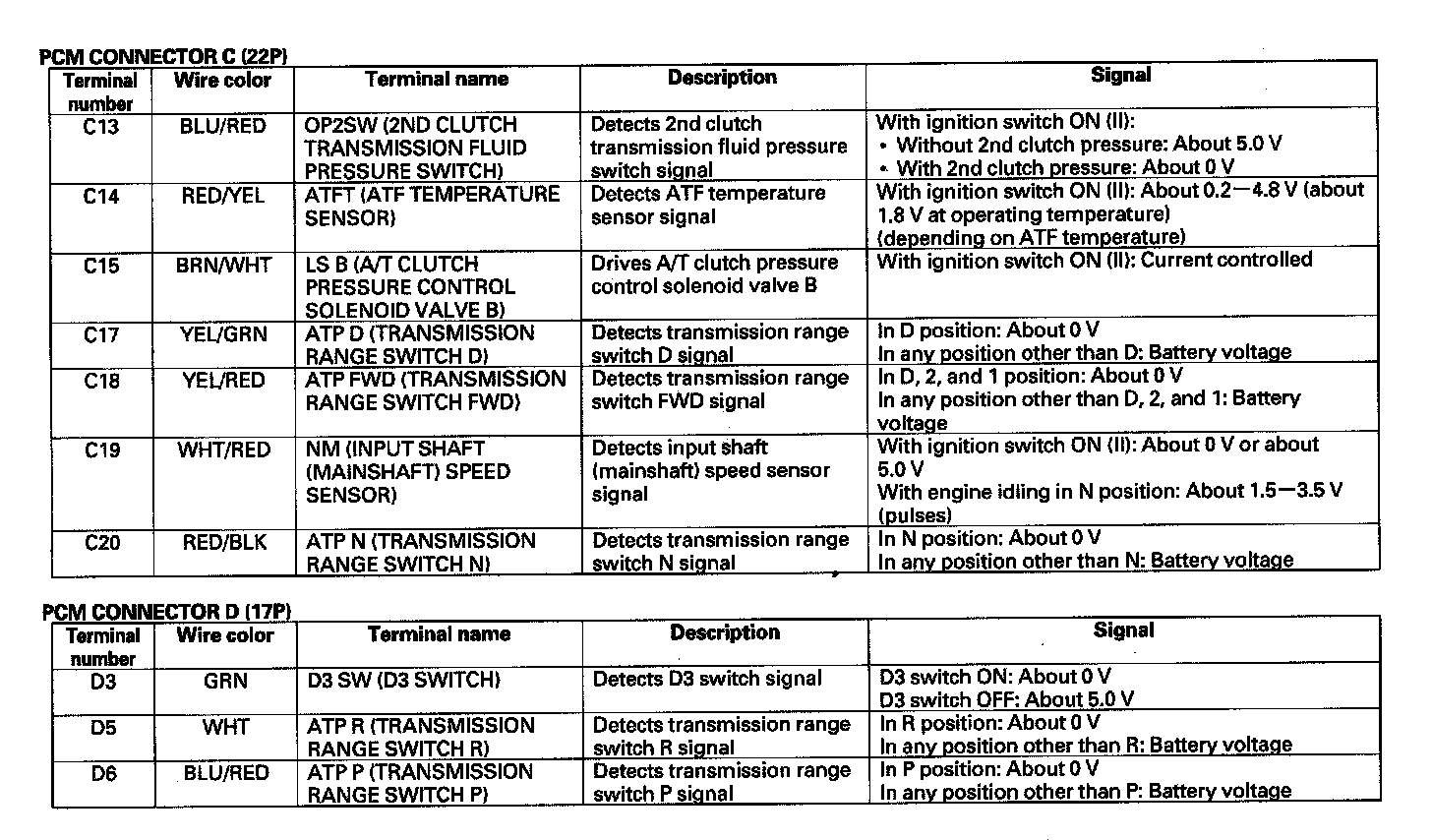

PCM A/T Control System Input and Output (Part 3):

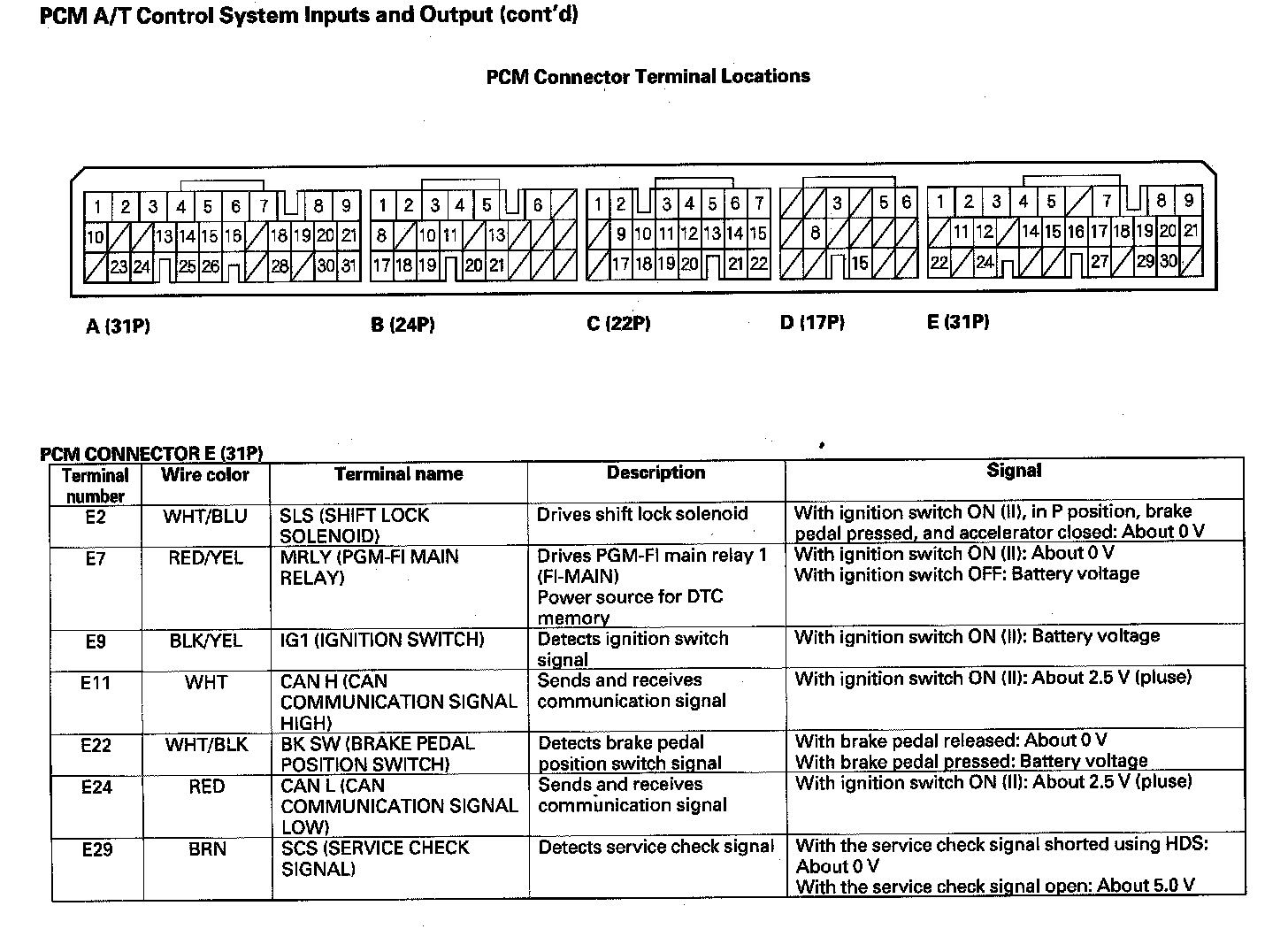

PCM A/T Control System Input and Output (Part 4):
