System Specifications

Crankshaft Pulley
Tightening Torque 49 Nm (5.0 kgf-m, 36 lbf-ft) + an additional 90°

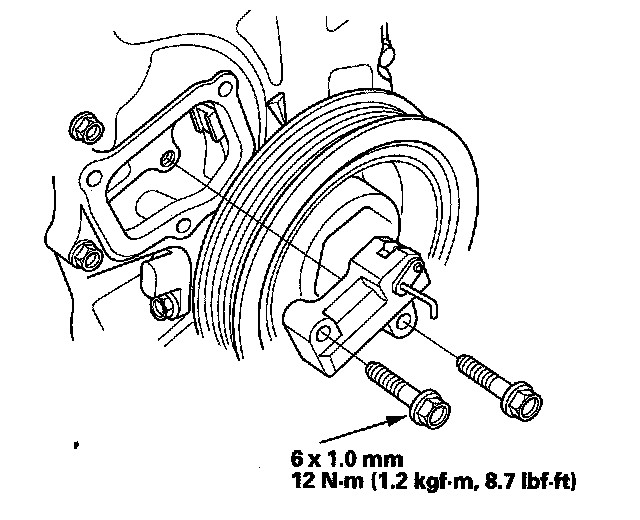

Auto-tensioner





Chain Case





Chain Case Cover
