Driver's Power Seat Motor Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Disconnect the 6P or 5P connector from each power seat motor.
NOTE: For the recline motor, remove the seat-back cover (see REAR SEAT-BACK COVER REPLACEMENT ).

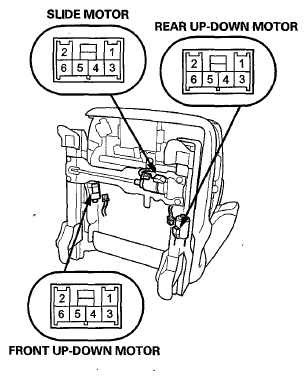

Fig 1: Identifying Power Seat Motor 6P And 5P Connector
Courtesy of ABLE BODY CORP.

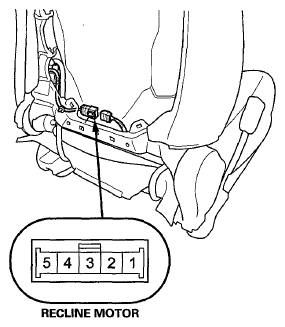

Fig 2: Identifying Recline Motor Connector Terminals
Courtesy of ABLE BODY CORP.
Test each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.

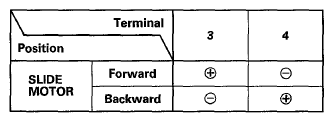

Fig 3: Slide Motor Terminals Chart
Courtesy of ABLE BODY CORP.

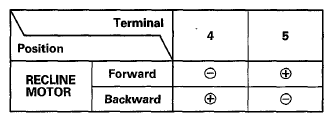

Fig 4: Recline Motor Terminals Chart
Courtesy of ABLE BODY CORP.

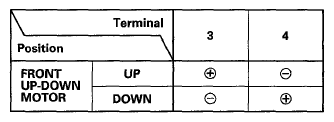

Fig 5: Front Up-Down Motor Terminals Chart
Courtesy of ABLE BODY CORP.

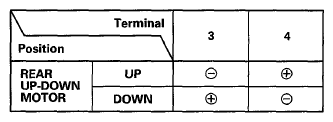

Fig 6: Rear Up-Down Motor Terminals Chart
Courtesy of ABLE BODY CORP.
If the motor does not run or fails to run smoothly, replace:
- Slide motor (see FRONT SEAT SLIDE MOTOR REPLACEMENT )
- Front up-down motor/seat frame (see FRONT SEAT FRAME REPLACEMENT )
- Rear up-down motor/seat frame (see FRONT SEAT FRAME REPLACEMENT )
- Recline motor (see FRONT SEAT RECLINE MOTOR REPLACEMENT )
  NOTE: The front and rear up-down motors are part of the seat frame.
