Circuit Diagram

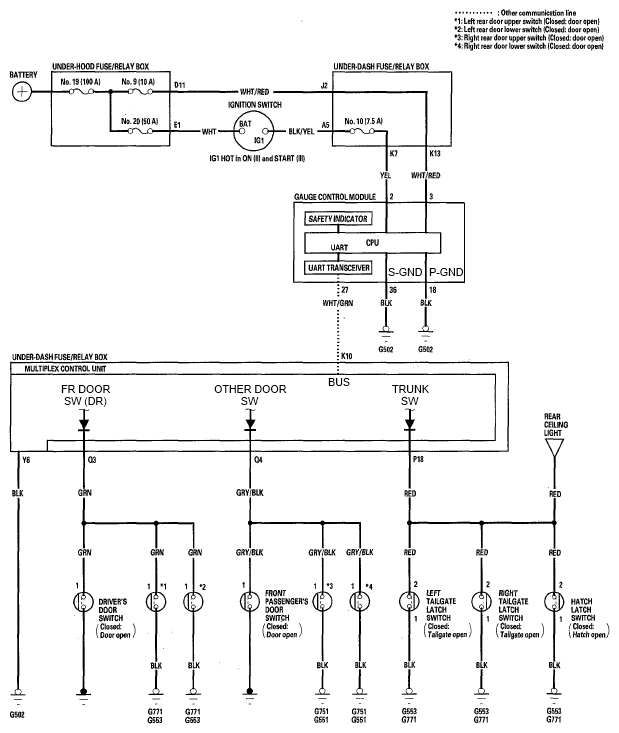

Fig 1: Identifying Safety Indicator System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
