A/F Sensor Relay/Rear Window Defogger Relay Connector End View

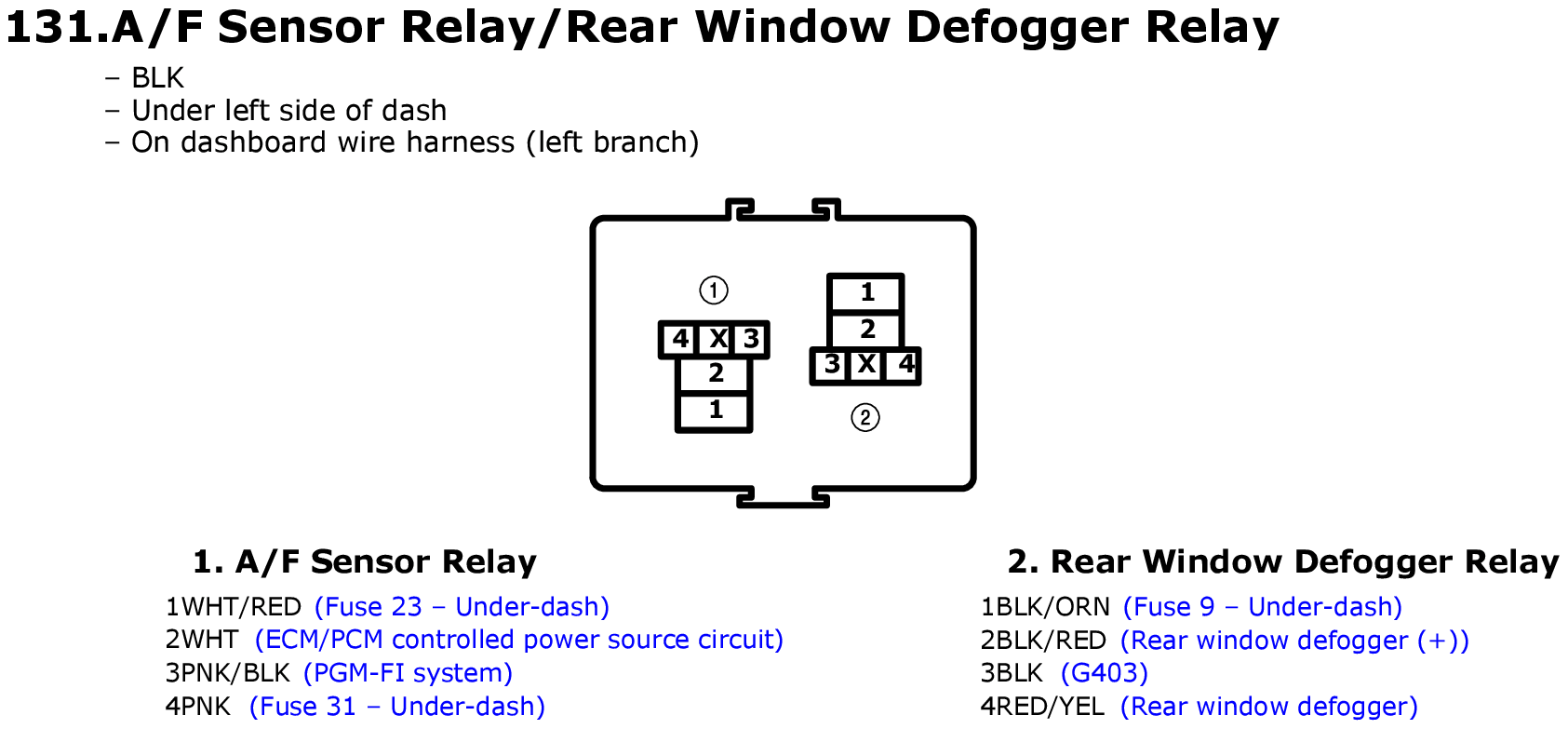

Fig 1: A/F Sensor Relay/Rear Window Defogger Relay Connector End View
GHHW4080Courtesy of AMERICAN HONDA MOTOR CO., INC.
