Charging System
>>
Alternator Overhaul
>>
Exploded View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Exploded View

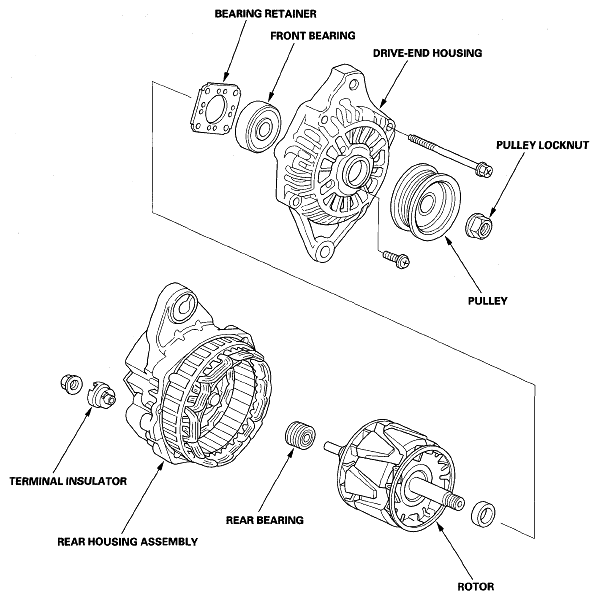

Fig 1: Exploded View Of Alternator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
