Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

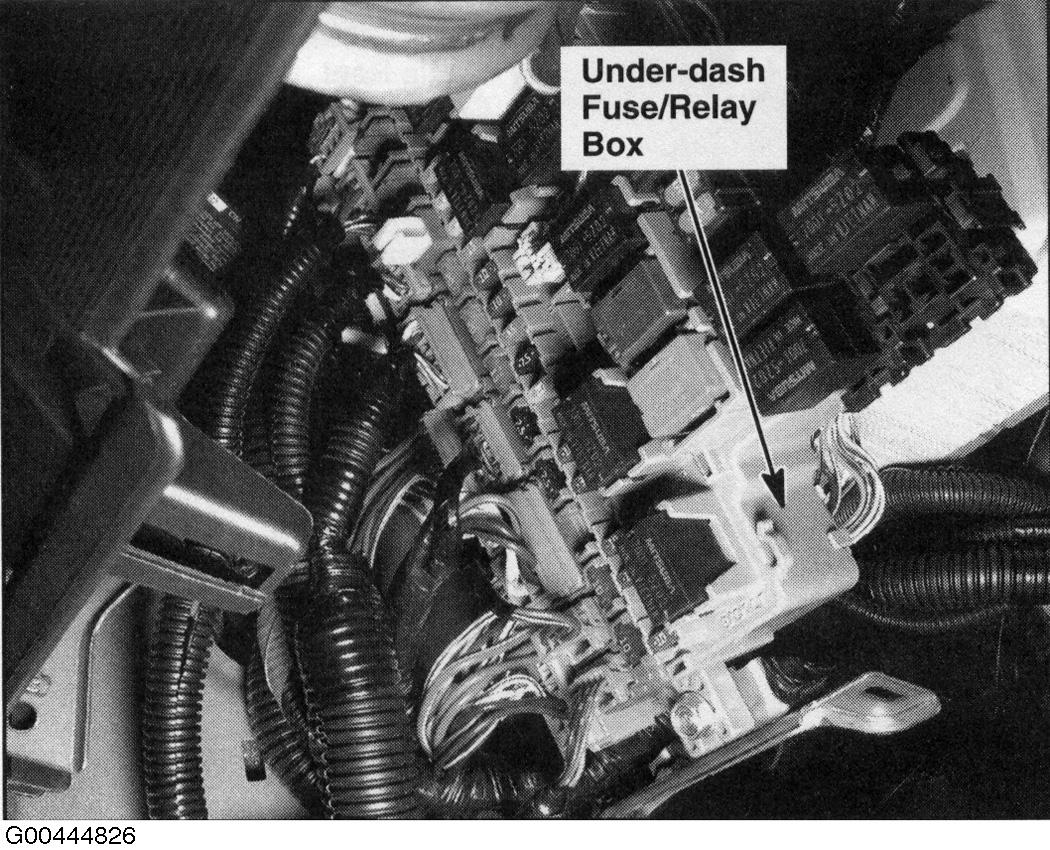

Under-Dash Fuse/Relay Box Under left side of dash, right of steering column. See Figure.

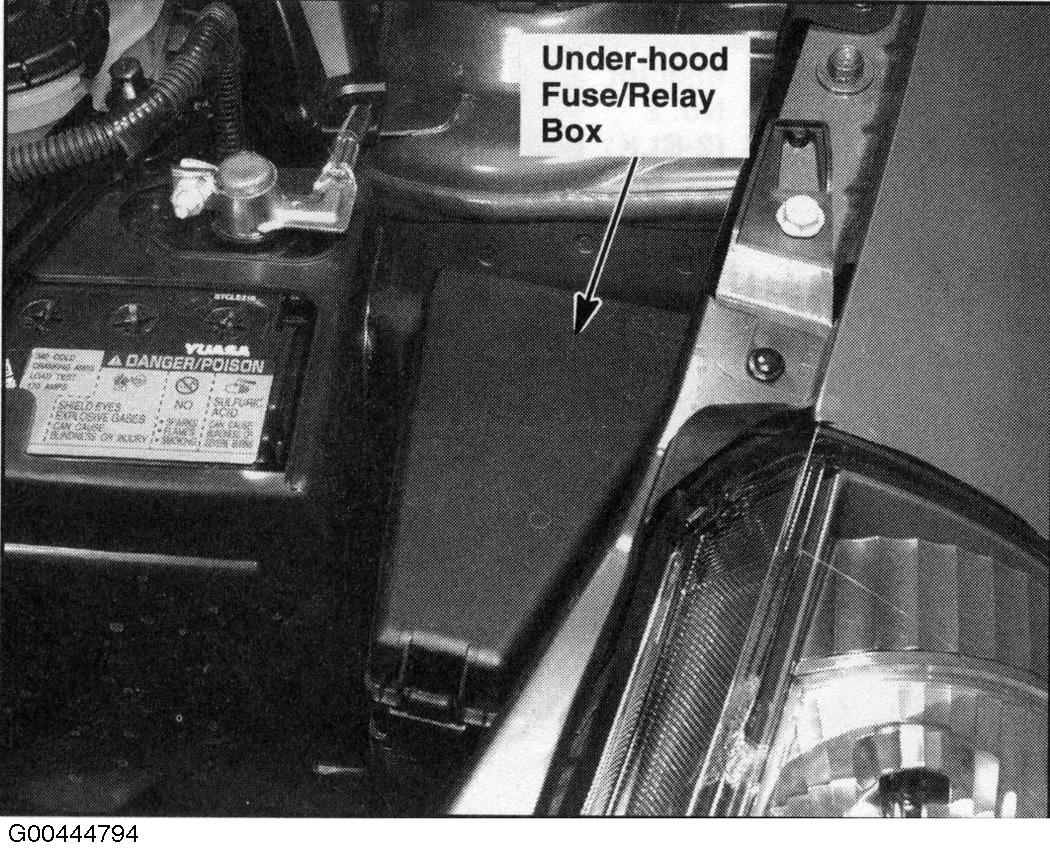

Under-Hood Fuse/Relay Box At left rear of engine compartment. See Figure.
