Power Mirror Actuator Test

  1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 3P connector (A) from the power mirror actuator

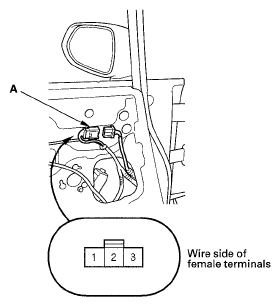

    Fig 1: Identifying Power Mirror Actuator 3P Connector Terminals
    G05456733
  3. Check actuator operation by connecting power and ground according to the table.
    Fig 2: Battery Power And Ground Connection Reference Chart
    G05456734
  4. If the mirror fails to work properly, replace the mirror actuator.
