Component Location Index

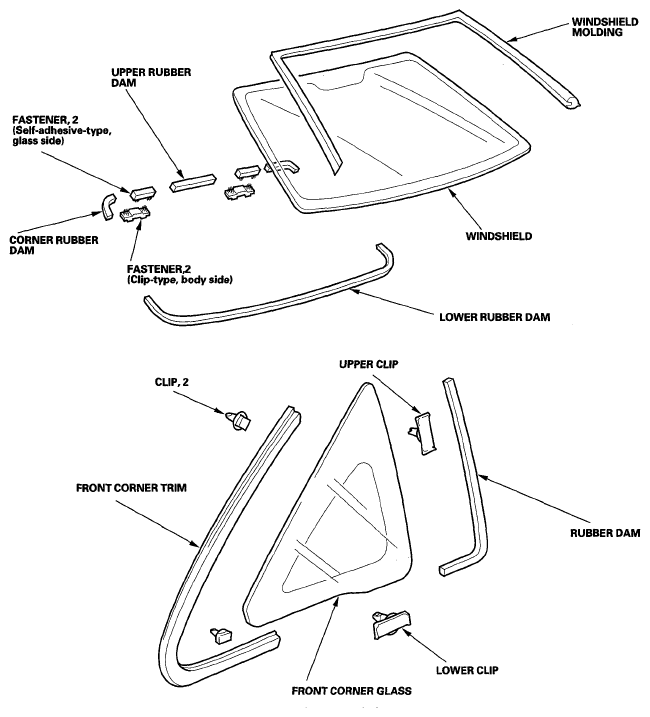

Fig 1: Identifying Glass Components (1 Of 2)
G05456157Courtesy of AMERICAN HONDA MOTOR CO., INC.

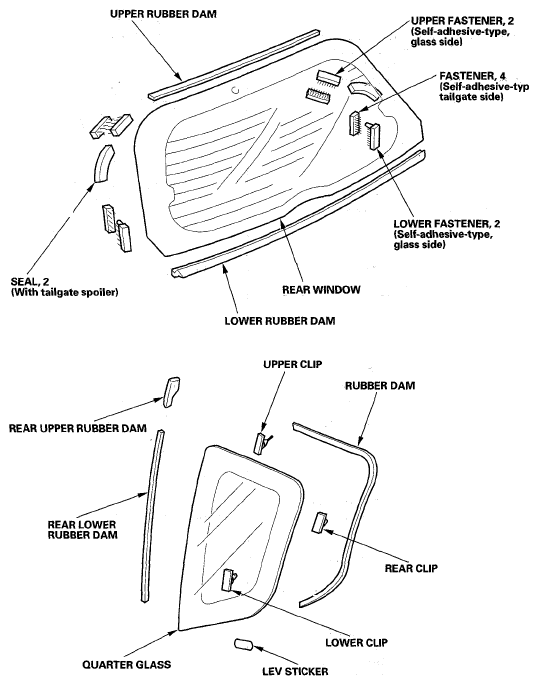

Fig 2: Identifying Glass Components (2 Of 2)
G05456158Courtesy of AMERICAN HONDA MOTOR CO., INC.
