CMP Sensor Replacement

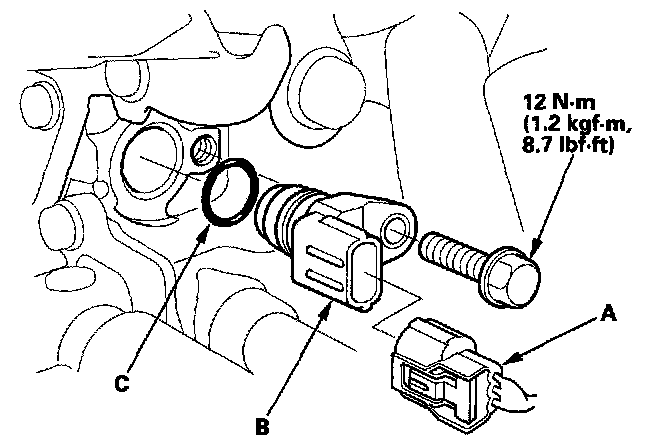

CMP Sensor Replacement1. Remove the air cleaner.
2. Disconnect the CMP sensor 3P connector (A).
3. Remove the CMP sensor (B).
4. Install the parts in the reverse order of removal with a new O-ring (C).
1. Remove the air cleaner.
2. Disconnect the CMP sensor 3P connector (A).
3. Remove the CMP sensor (B).
4. Install the parts in the reverse order of removal with a new O-ring (C).
