Variable Valve Timing Pressure Switch: Service and Repair

Rocker Arm Oil Pressure Switch Removal/Installation

1. Remove the rocker arm oil control solenoid assembly.

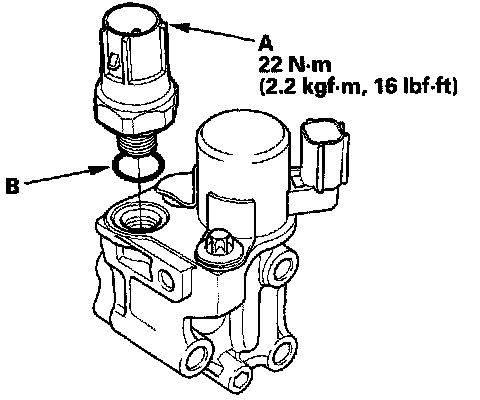

2. Remove the rocker arm oil pressure switch (A).
3. Install the parts in the reverse order of removal with a new O-ring (B).
