Ignition Coil: Service and Repair

Ignition Coil Removal/Installation

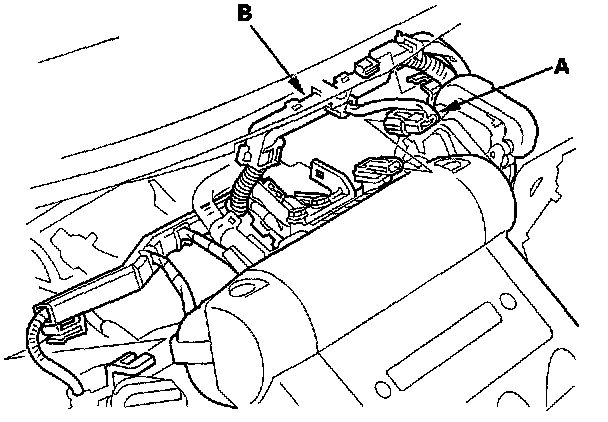

1. Remove the MAP sensor connector (A), then remove the harness holder (B) from the brackets.

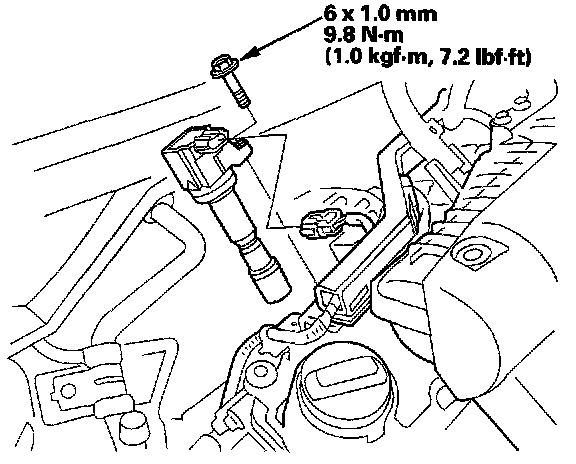

2. Disconnect the ignition coil connector, then remove the ignition coils.
3. Install the ignition coils in the reverse order of removal.
