Driving Position Memory Switch Test/Replacement

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 10P connector from the memory switch (A).

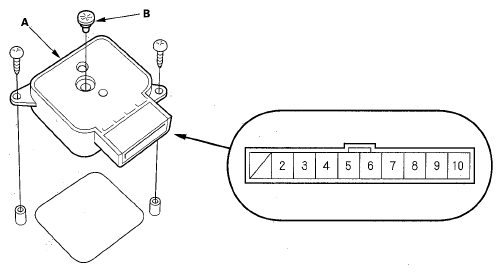

Fig 1: Identifying Memory Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws, then remove the switch from the door panel.
Check for continuity between the terminals in each switch position according to Fig 2.

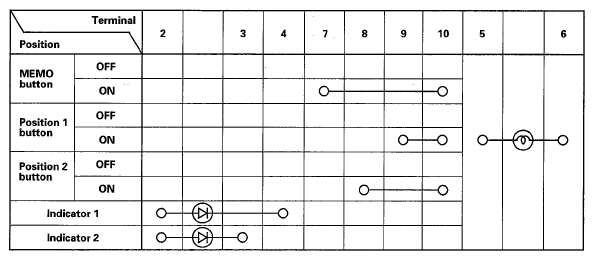

Fig 2: Checking For Continuity Between Terminals In Each Switch Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the illumination bulb (B) or the switch.
