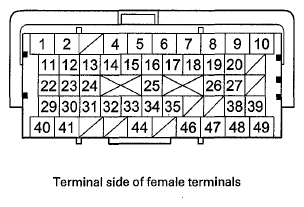

PCM A/T Control System Inputs and Outputs at PCM Connector A □ (49P)
TERMINAL DESCRIPTION
| Terminal Number | Wire Color | Terminal Name | Description | Signal |
|---|---|---|---|---|
| A1 | YEL | VBSOL2 (POWER SOURCE FOR SOLENOID VALVES) | Power source for solenoid valves | With ignition switch ON (II): battery voltage |
| A2 | YEL/BLK | SLS (SHIFT LOCK SOLENOID) | Drives shift lock solenoid | With ignition switch ON (II), in P, brake pedal pressed, and accelerator released: about 0 V |
| A6 | RED/YEL | MRLY (PGM-FI MAIN RELAY 1 (FI MAIN)) |
|
With ignition switch ON (II): about 0 V With ignition switch LOCK (0): battery voltage |
| A8 | WHT/BLK | BKSW (BRAKE PEDAL POSITION SWITCH) | Detects brake pedal position switch signal | With brake pedal released: about 0 V With brake pedal pressed: battery voltage |
| A16 | BLU/BLK | ATPP (TRANSMISSION RANGE SWITCH P) | Detects transmission range switch P position signal | In P: about 0 V In any position other than P: battery voltage |
| A17 | GRN/BLK | D3SW (D3 SWITCH) | Detects D3 switch signal | D3 button released: battery voltage D3 button pressed: about 0 V |
| A23 | YEL/GRN | METINH (METER DISPLAY INHIBIT SIGNAL) | Sends inhibit signal | With ignition switch ON (II): battery voltage |
| A32 | BRN | SCS (SERVICE CHECK SIGNAL) | Detects service check signal | With the service check signal shorted with the HDS: about 0 V With the service check signal opened: about 5.0 V |
| A48 | WHT | CANH (CAN COMMUNICATION SIGNAL HIGH) | Sends and receives communication signal | With ignition switch ON (II): about 2.5 V (pulses) |
| A49 | RED | CANL (CAN COMMUNICATION SIGNAL LOW) | Sends and receives communication signal | With ignition switch ON (II): about 2.5 V (pulses) |
