View 26-50: 32

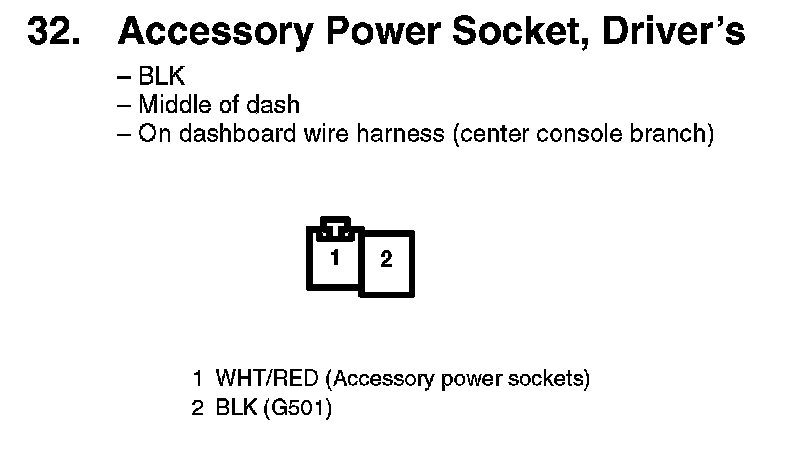

32. Accessory Power Socket, Driver's:

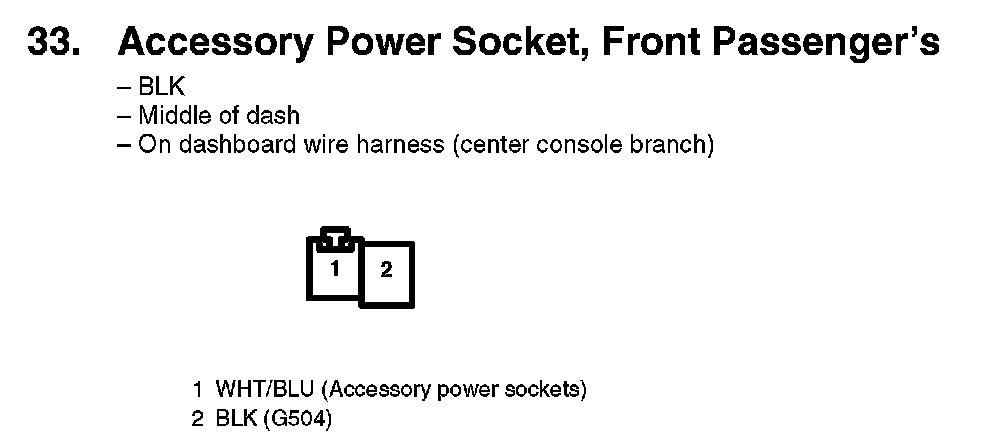

33. Accessory Power Socket, Front Passenger's:

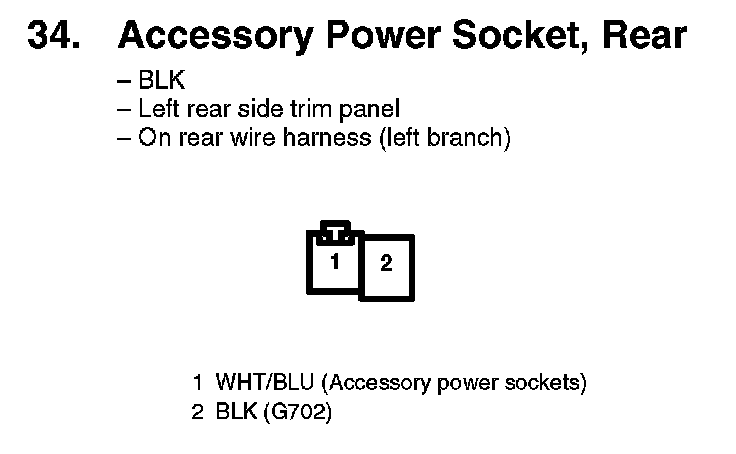

34. Accessory Power Socket, Rear:

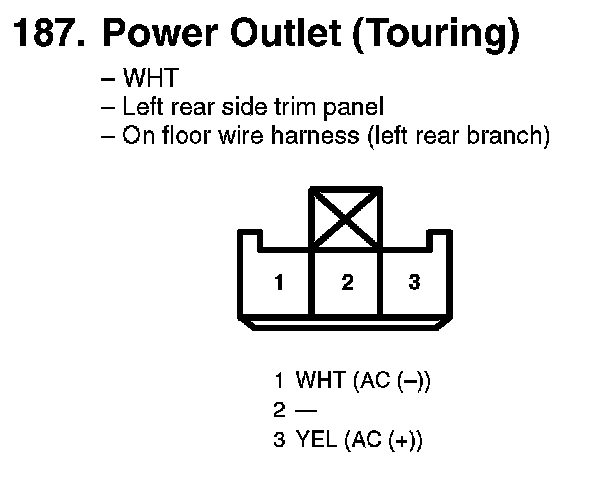

187. Power Outlet (Touring):



309. AC Inverter Unit (Touring):
