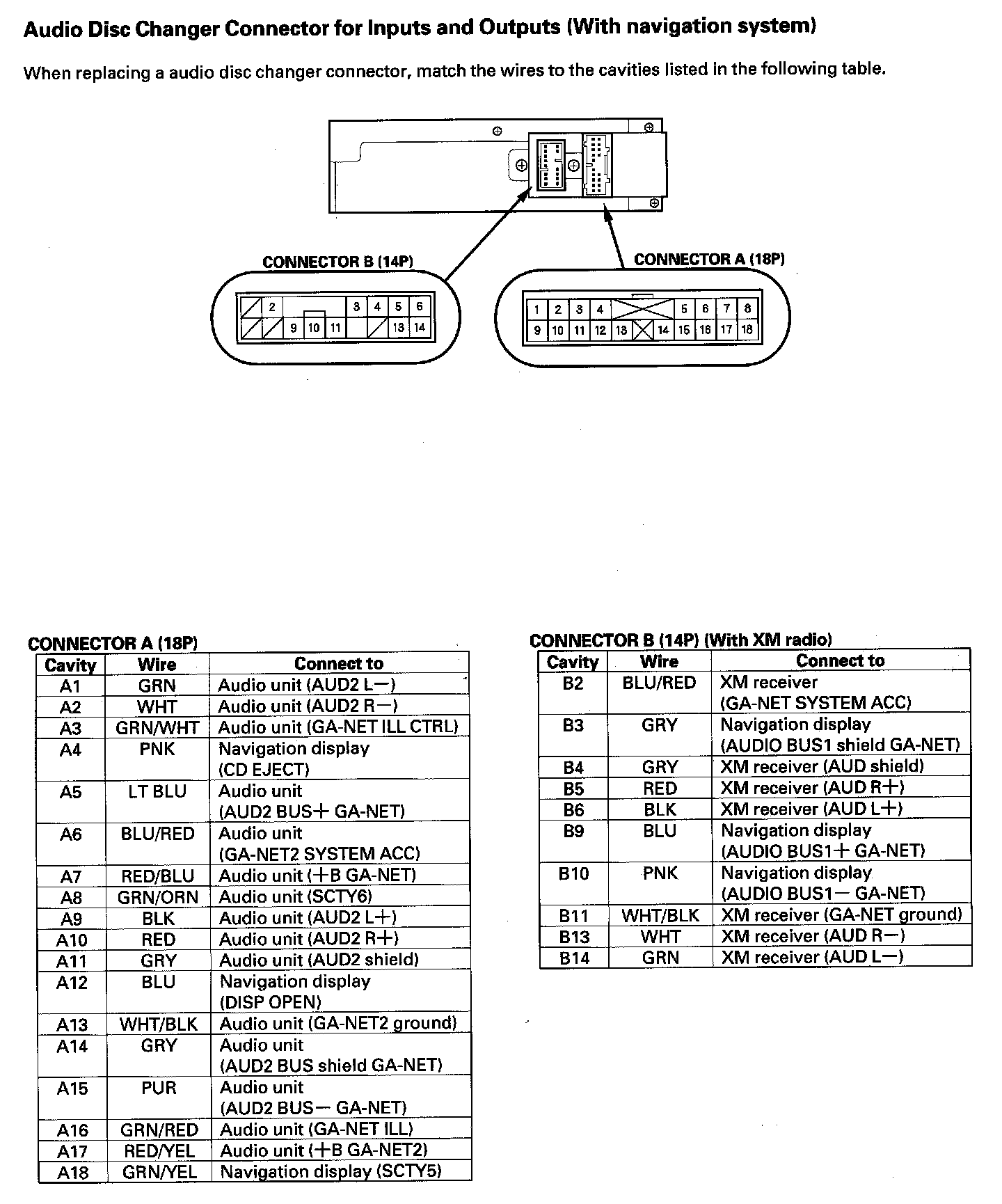

Audio Disc Charger Connector For Inputs and Outputs (With Navigation System)

Audio Disc Charger Connector For Inputs And Outputs (With Navigation System):
