Diagram Set 143 (DPMS (Driving Position Memory System))

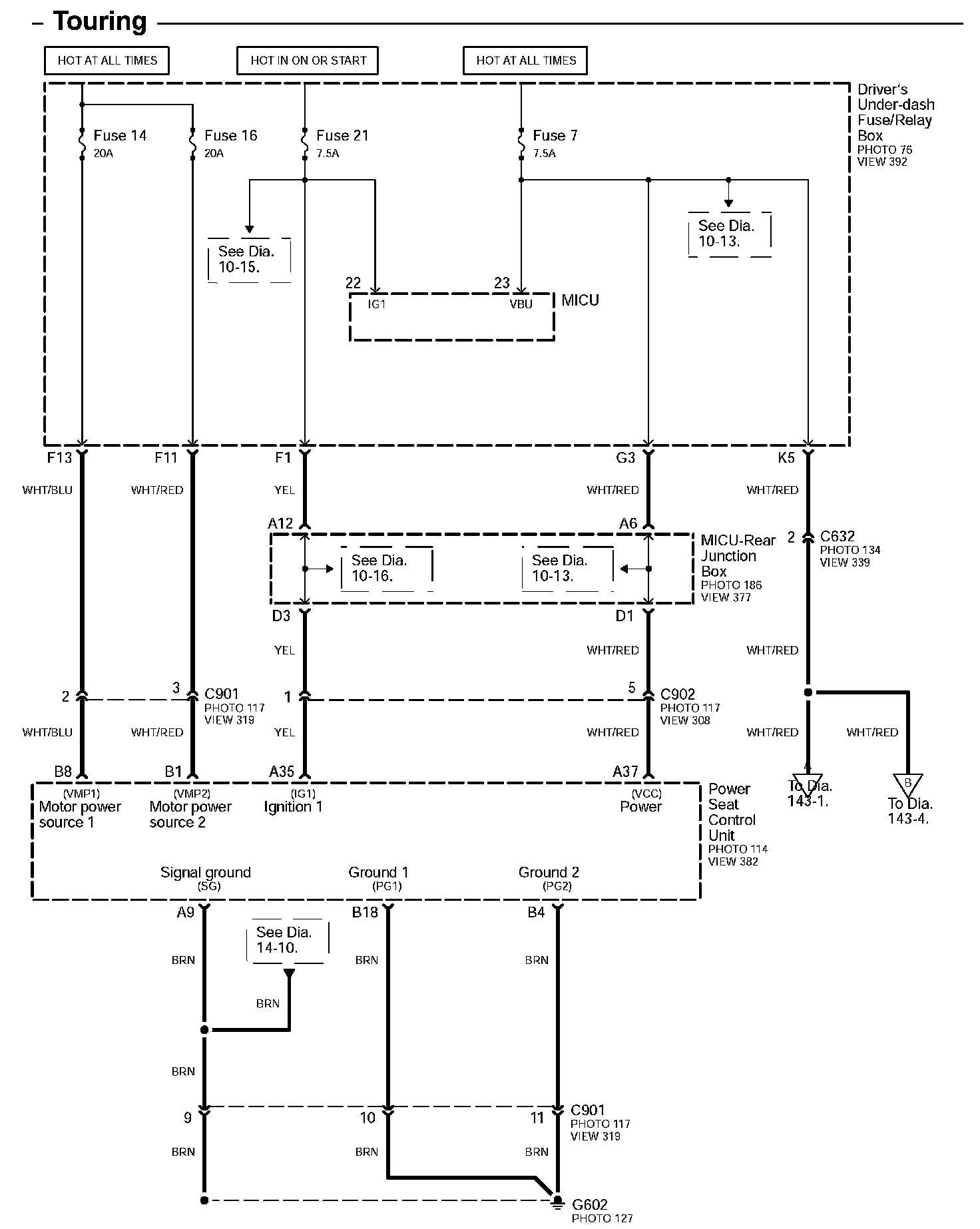

Diagram 143-0:

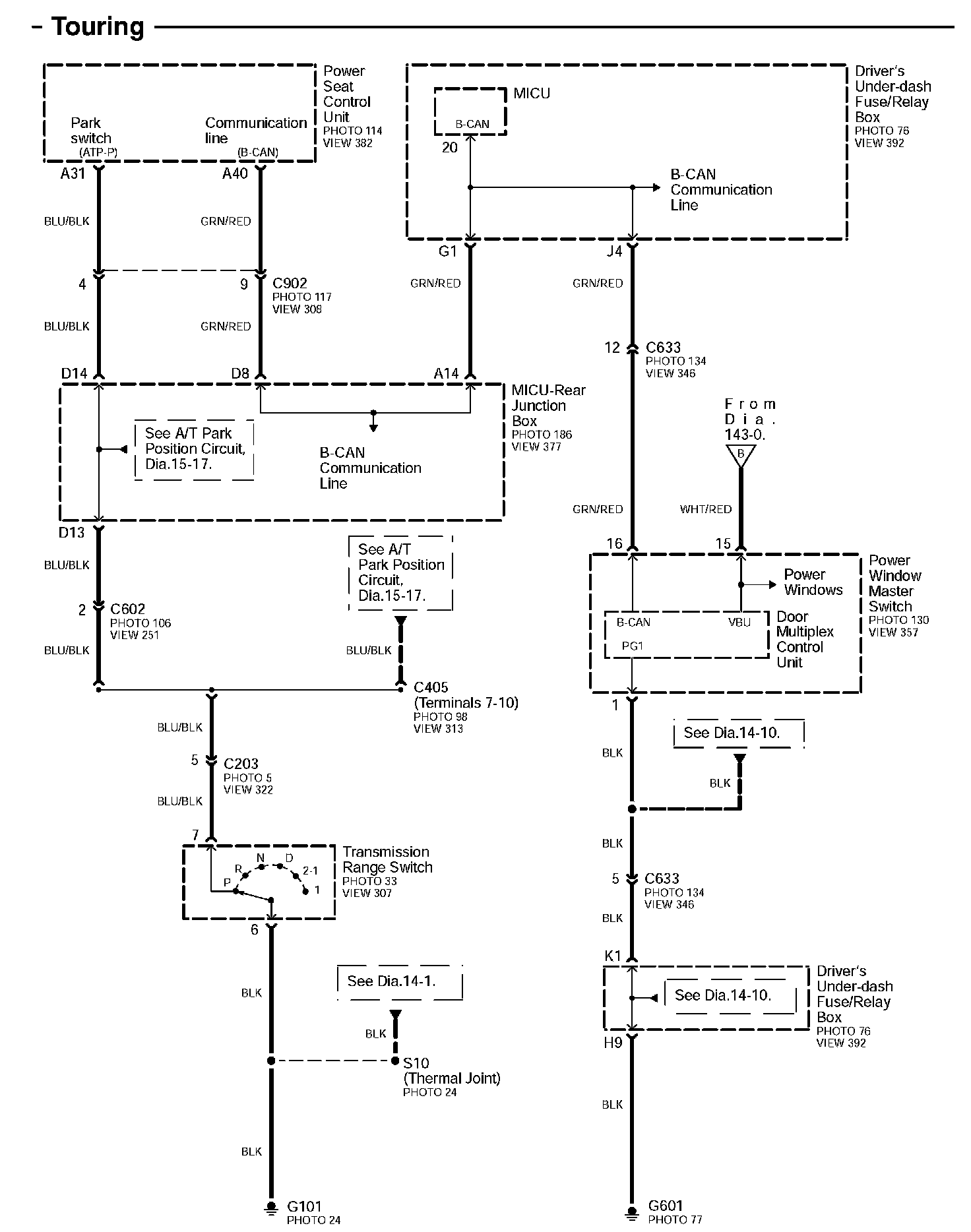

Diagram 143-1:

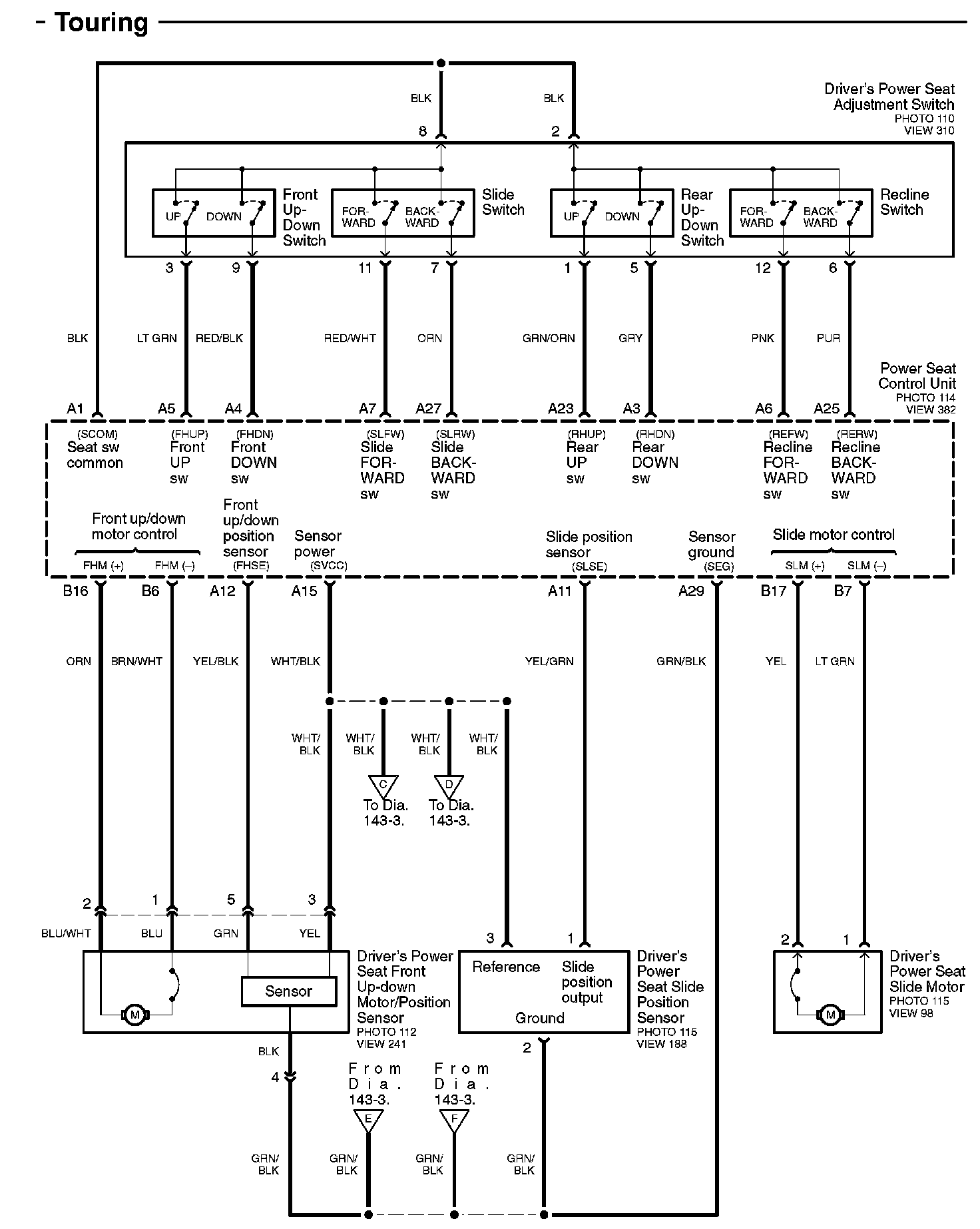

Diagram 143-2:

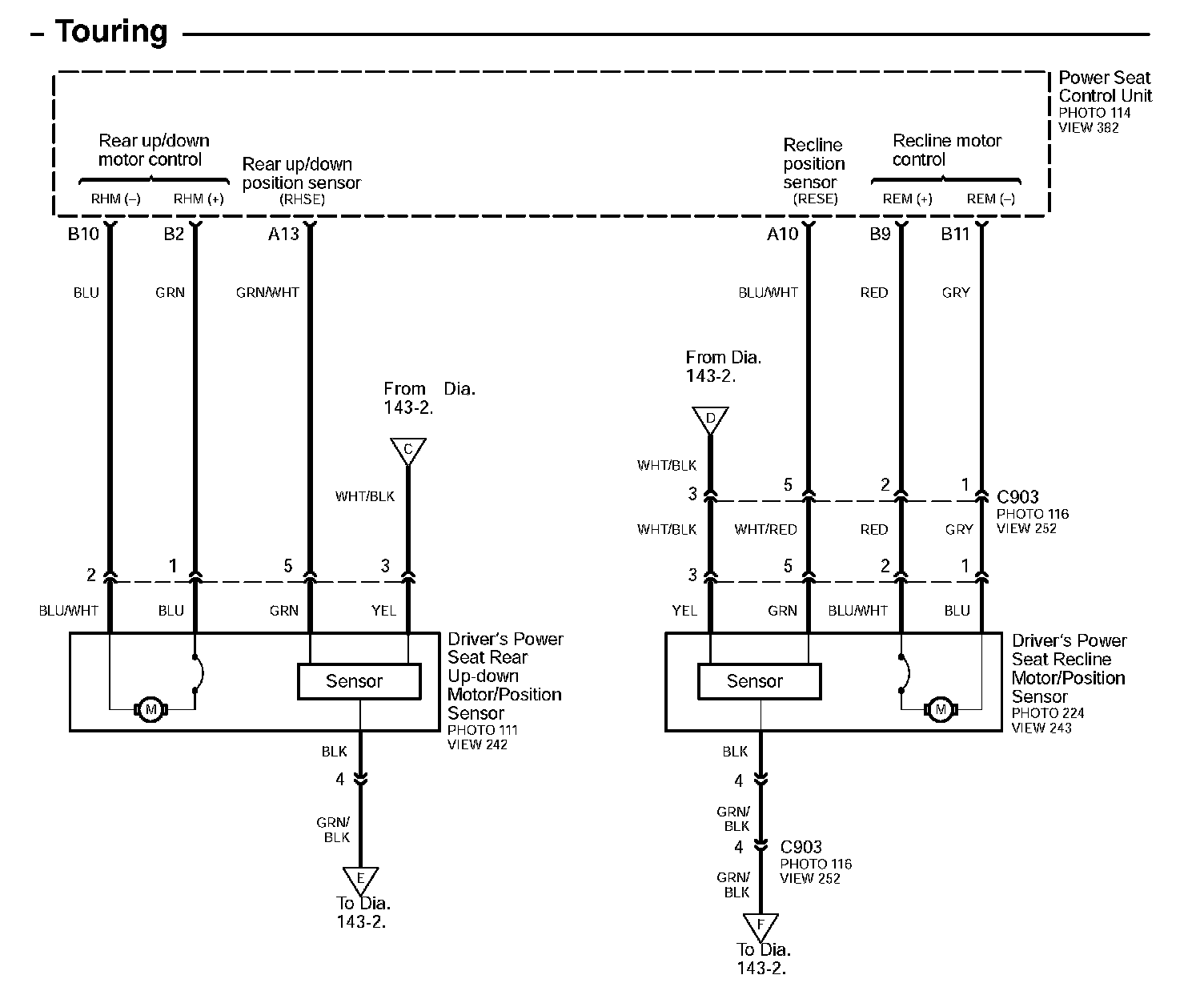

Diagram 143-3:

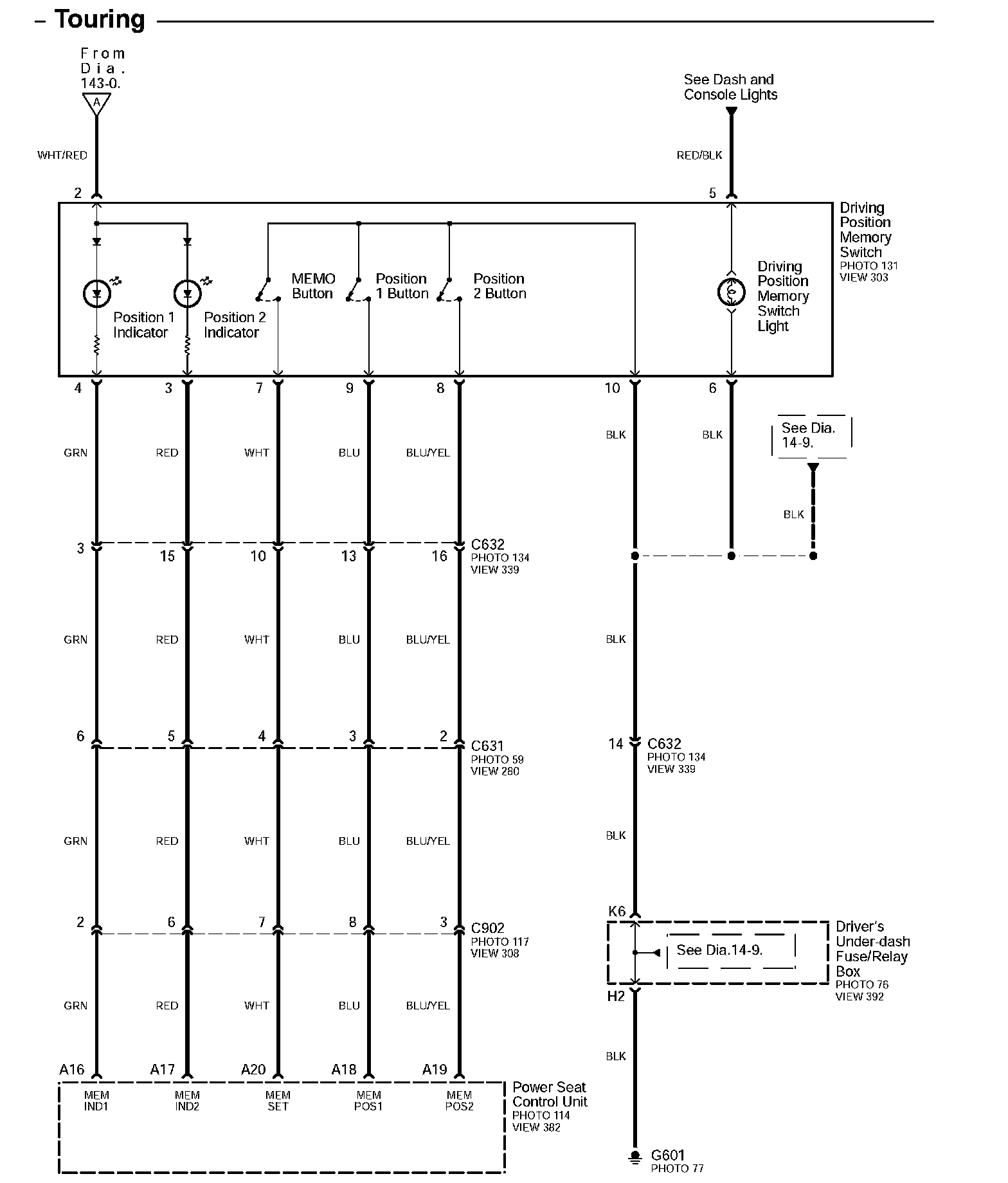

Diagram 143-4:
