Rear Air Conditioning

Rear Climate Control Unit Removal and Installation

1. Remove the right rear side trim panel.

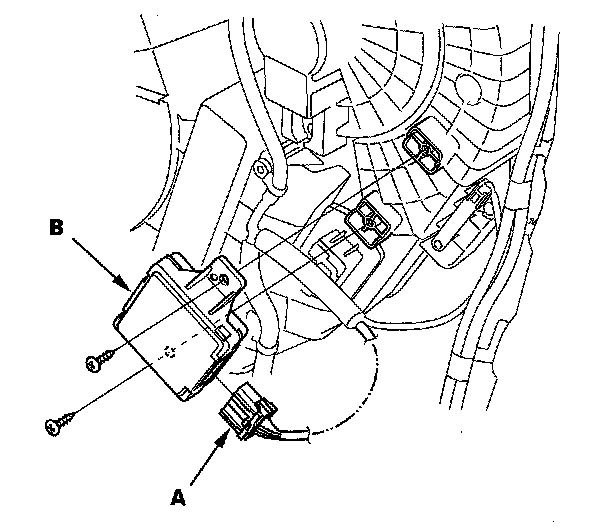

2. Disconnect the connector (A) from the rear climate control unit (B), then remove the self-tapping screws and the rear climate control unit.
3. Install the rear climate control unit in the reverse order of removal. After installation, operate the various functions to see whether works properly.
4. Run the self-diagnostic function to confirm that there are no problems in the system.
