Lamp Control Module: Locations

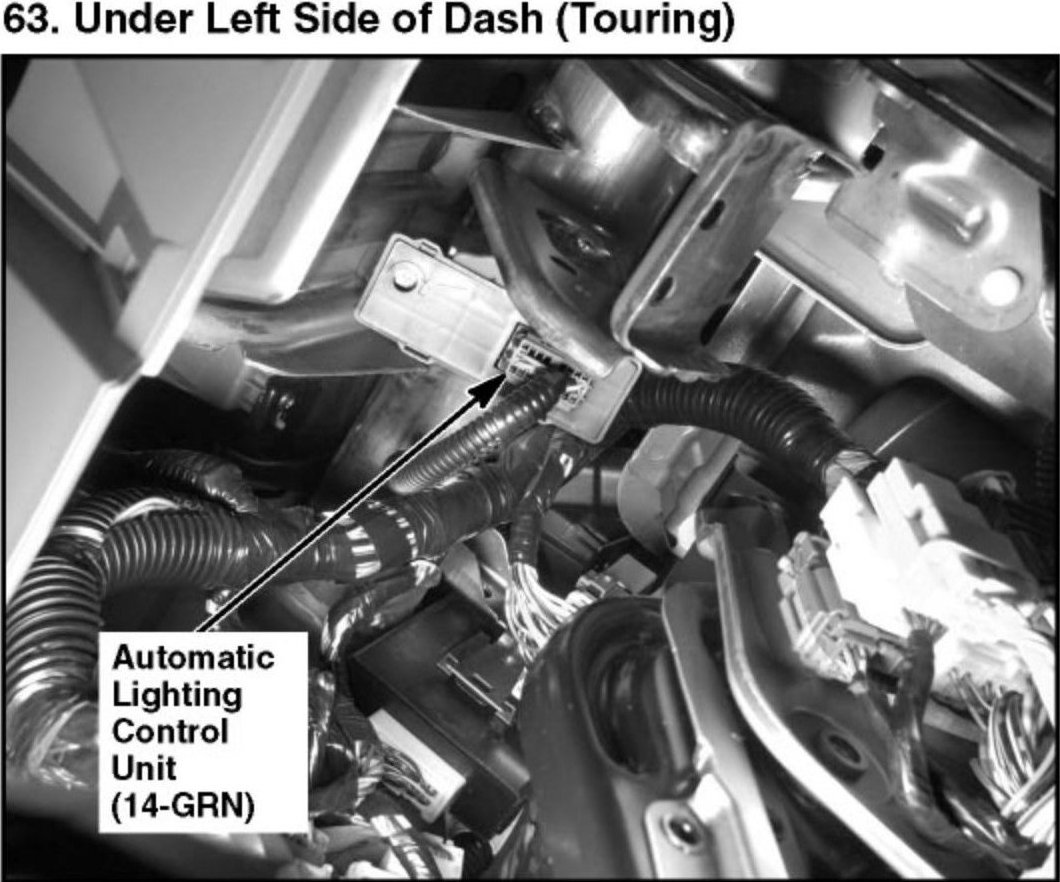

63. Under Left Side of Dash (Touring):

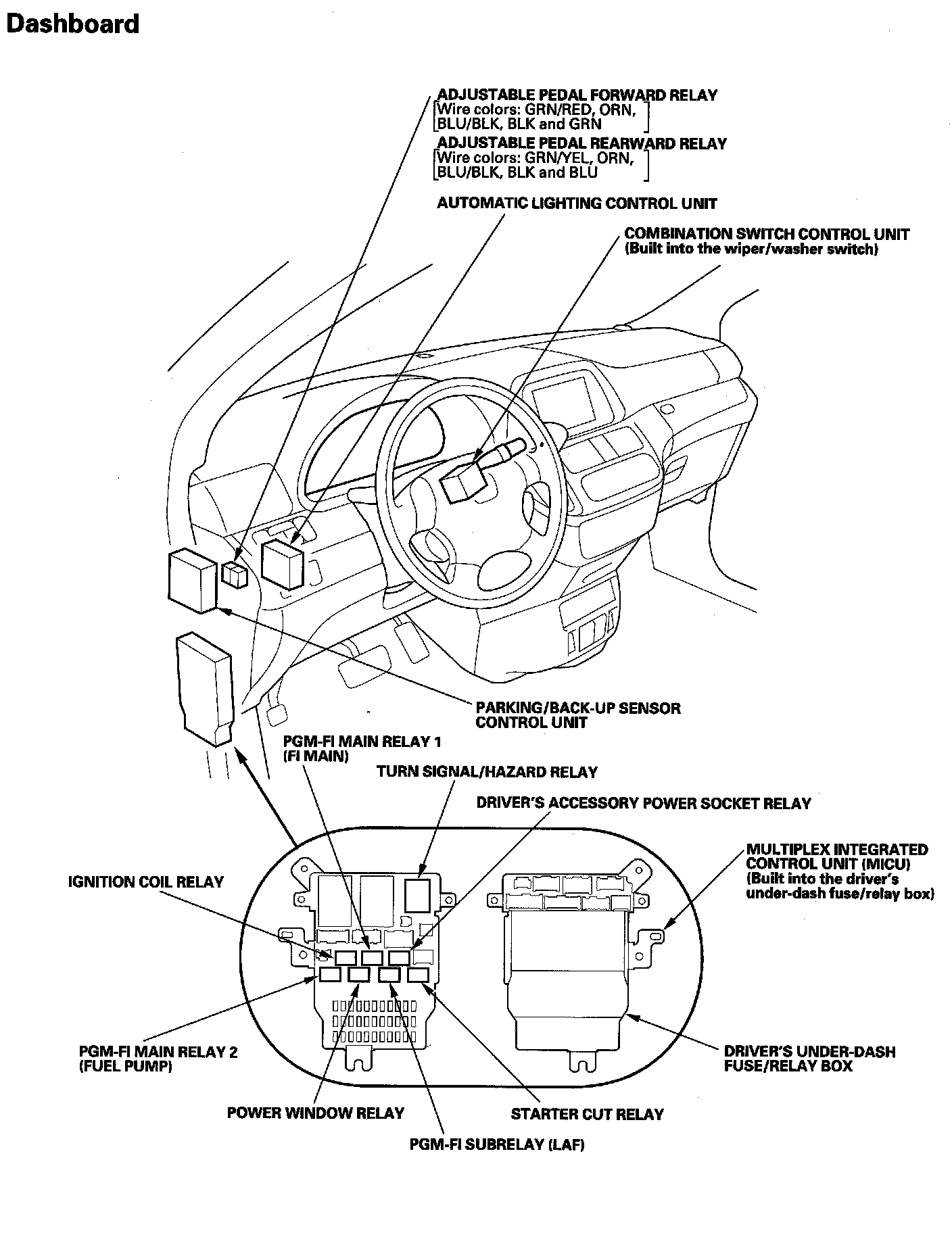

Relay And Control Unit Locations Dashboard:
