Air Flow Meter/Sensor: Service and Repair

MAF Sensor Replacement

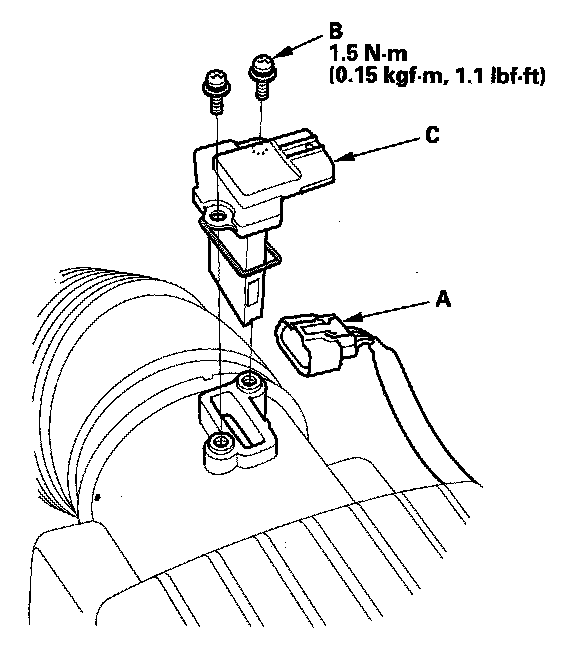

1. Disconnect the MAF sensor 5P connector (A).
2. Remove the screws (B).
3. Remove the MAF sensor (C).
4. Install the parts in the reverse order of removal.
