Computers and Control Systems: Locations

PGM-FI System Component Location Index:

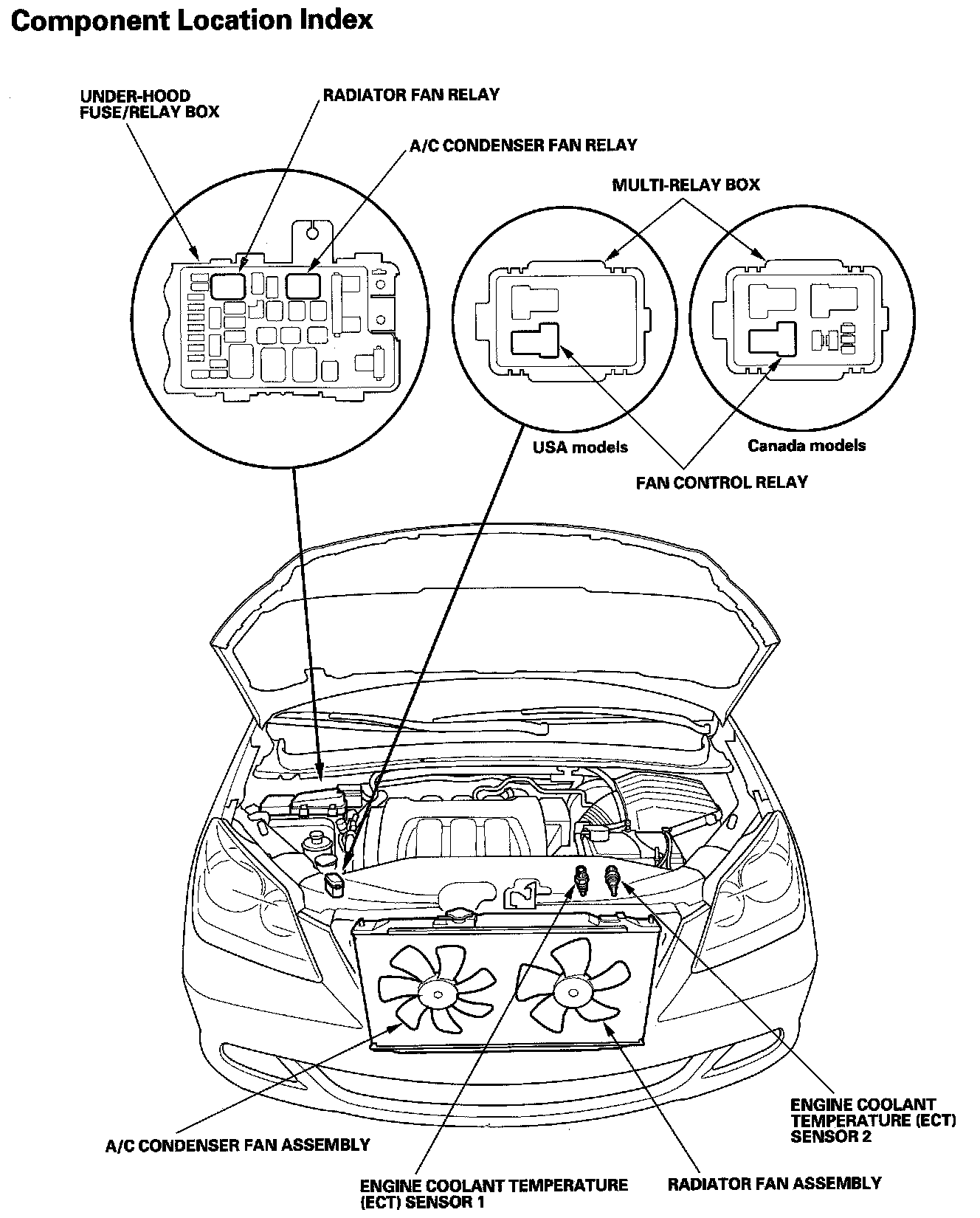

Fan Controls Component Location Index:

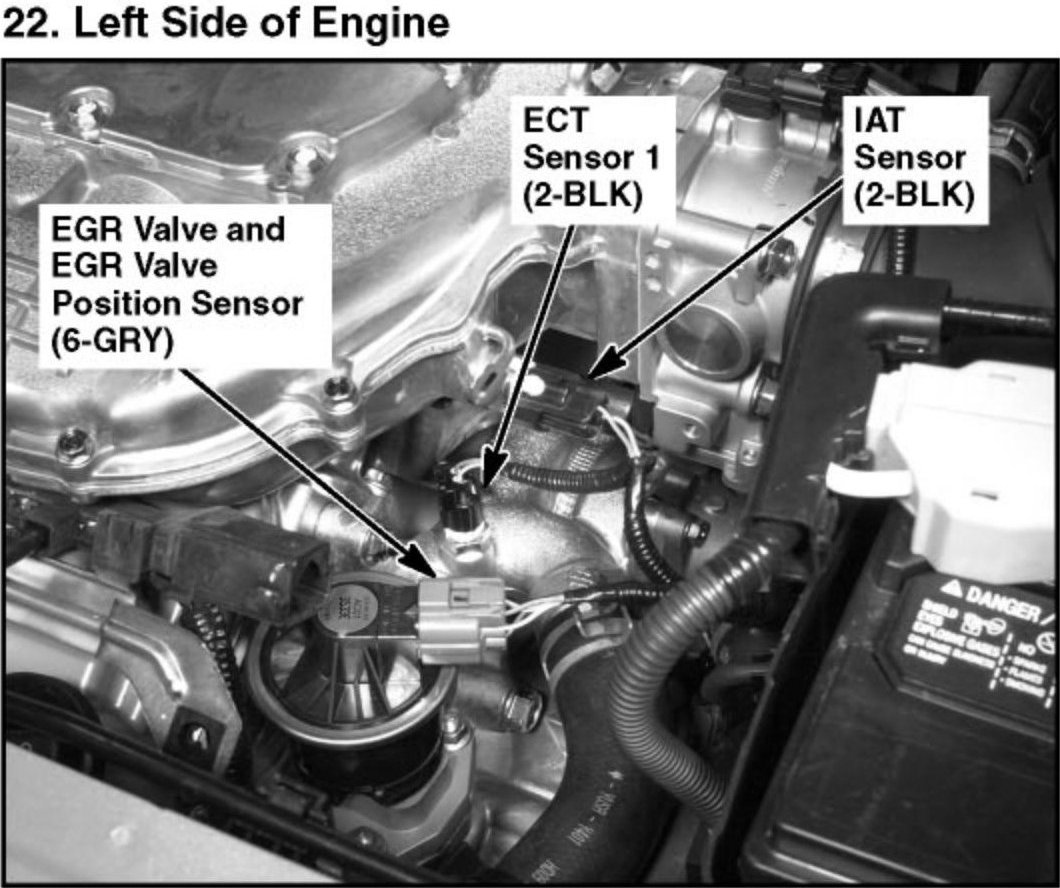

22. Left Side of Engine:

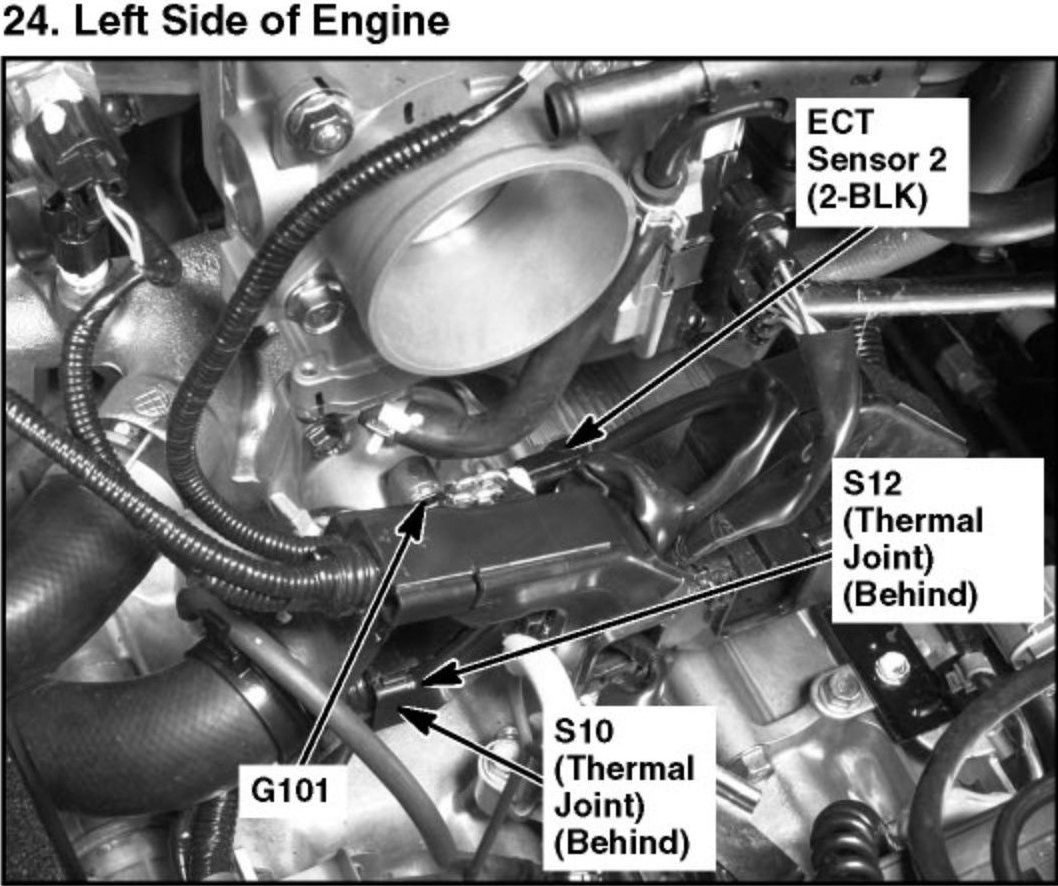

24. Left Side of Engine:
