Cruise Control Main Switch Test/Replacement

Cruise Control Main Switch Test/Replacement

1. Remove the switch panel.

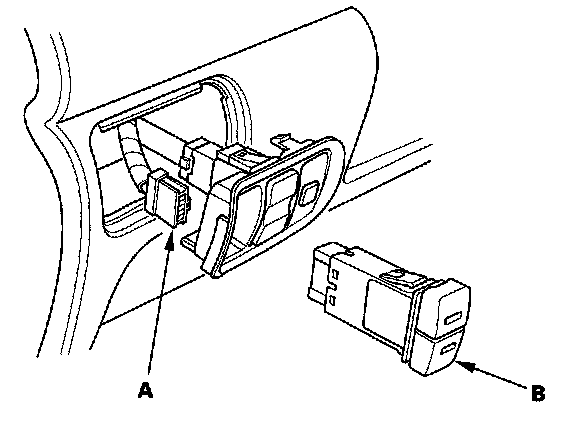

2. Disconnect the 13P connector (A), then release the clips of the cruise control main switch, and push the cruise control main switch (B) out of the panel.

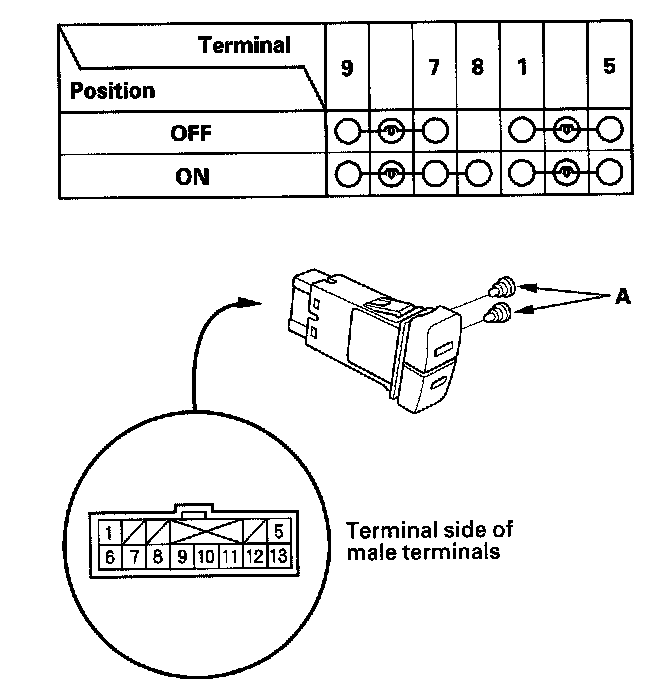

3. Check for continuity between the terminals in each switch position according to the table. If there is no continuity, replace indicator bulbs (A) or the switch.
