Electronic Throttle Control Module: Locations

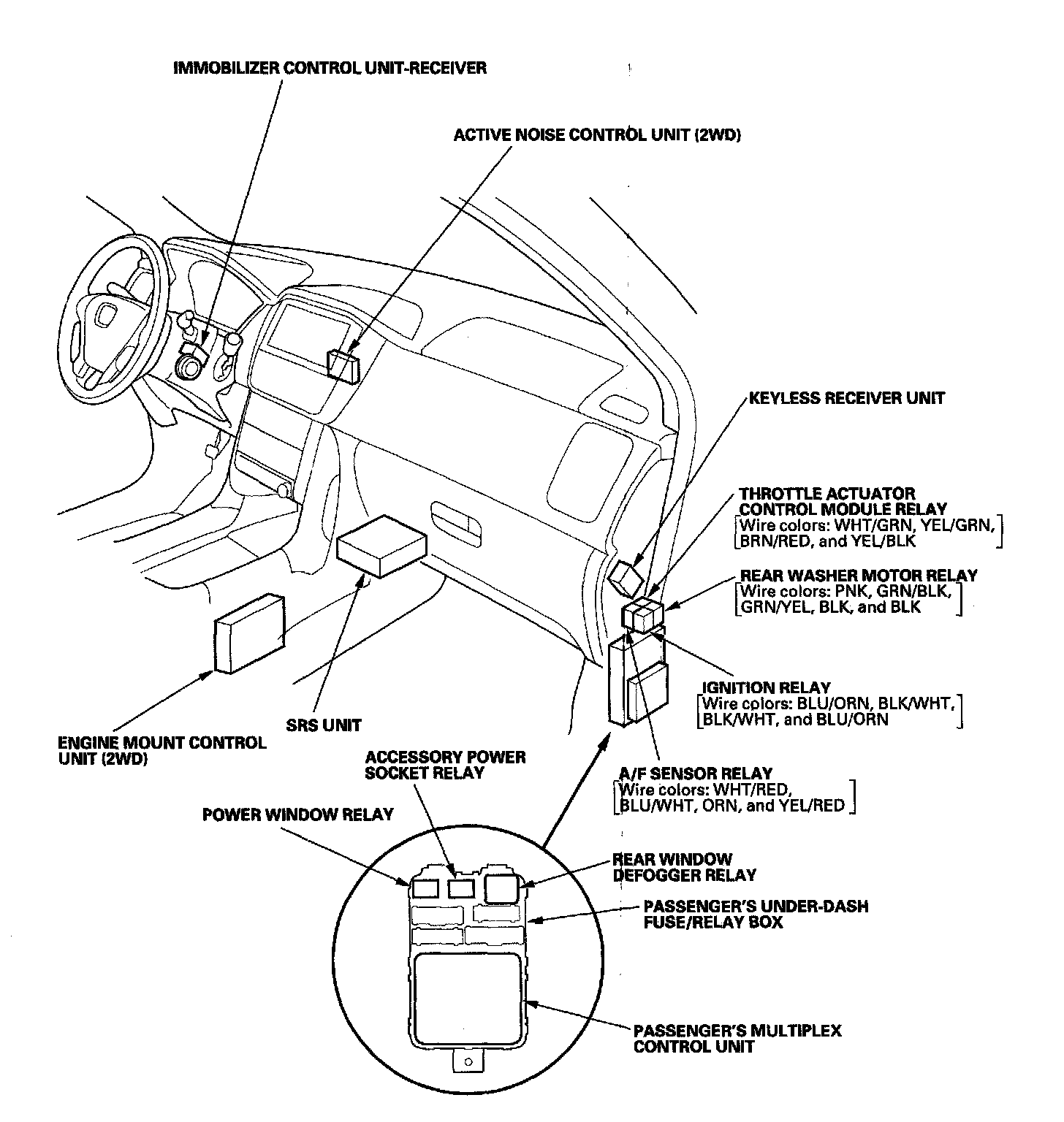

Relay And Control Unit Locations Dashboard:

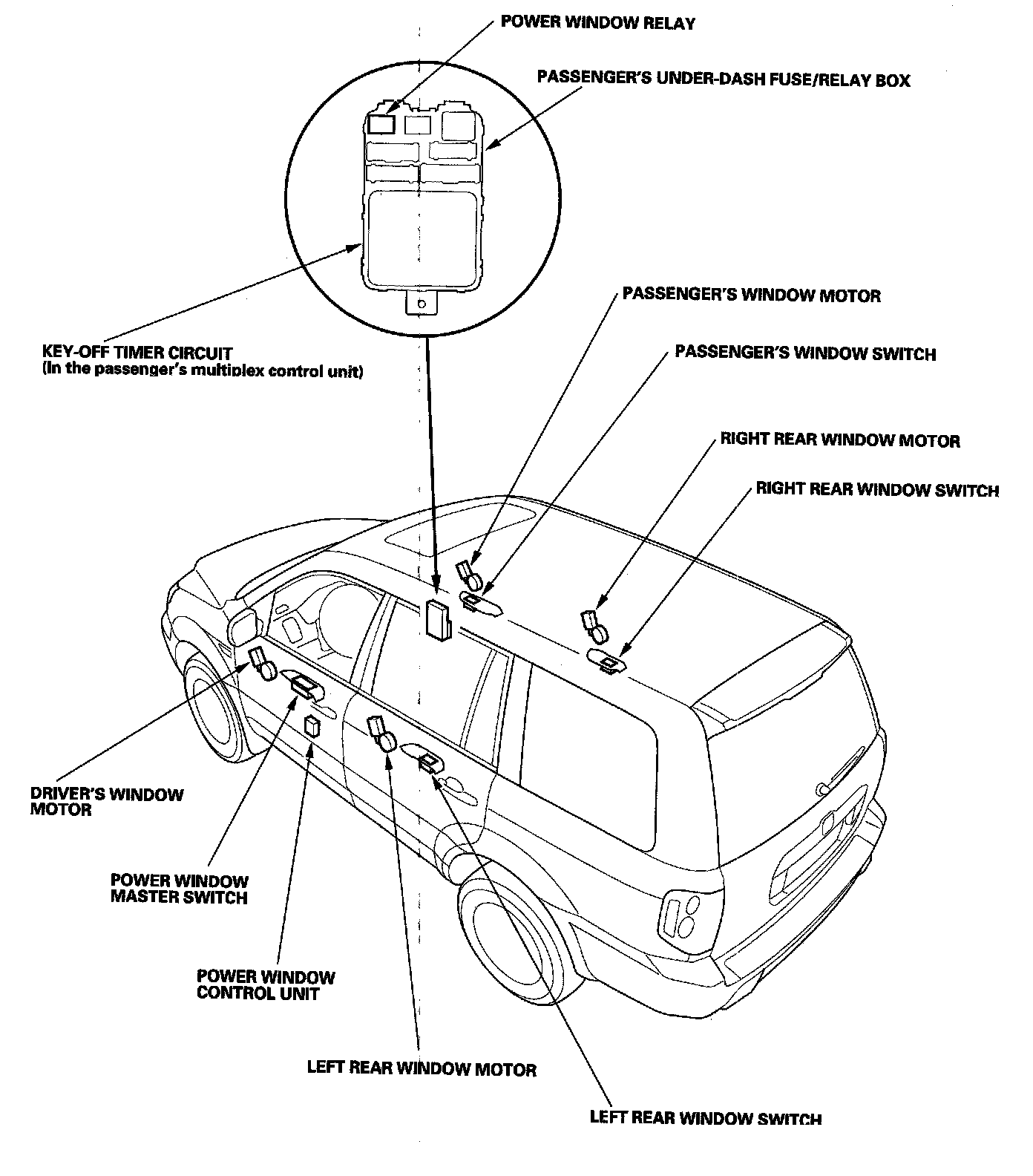

Power Windows Component Location Index:
