Pinout Values and Diagnostic Parameters

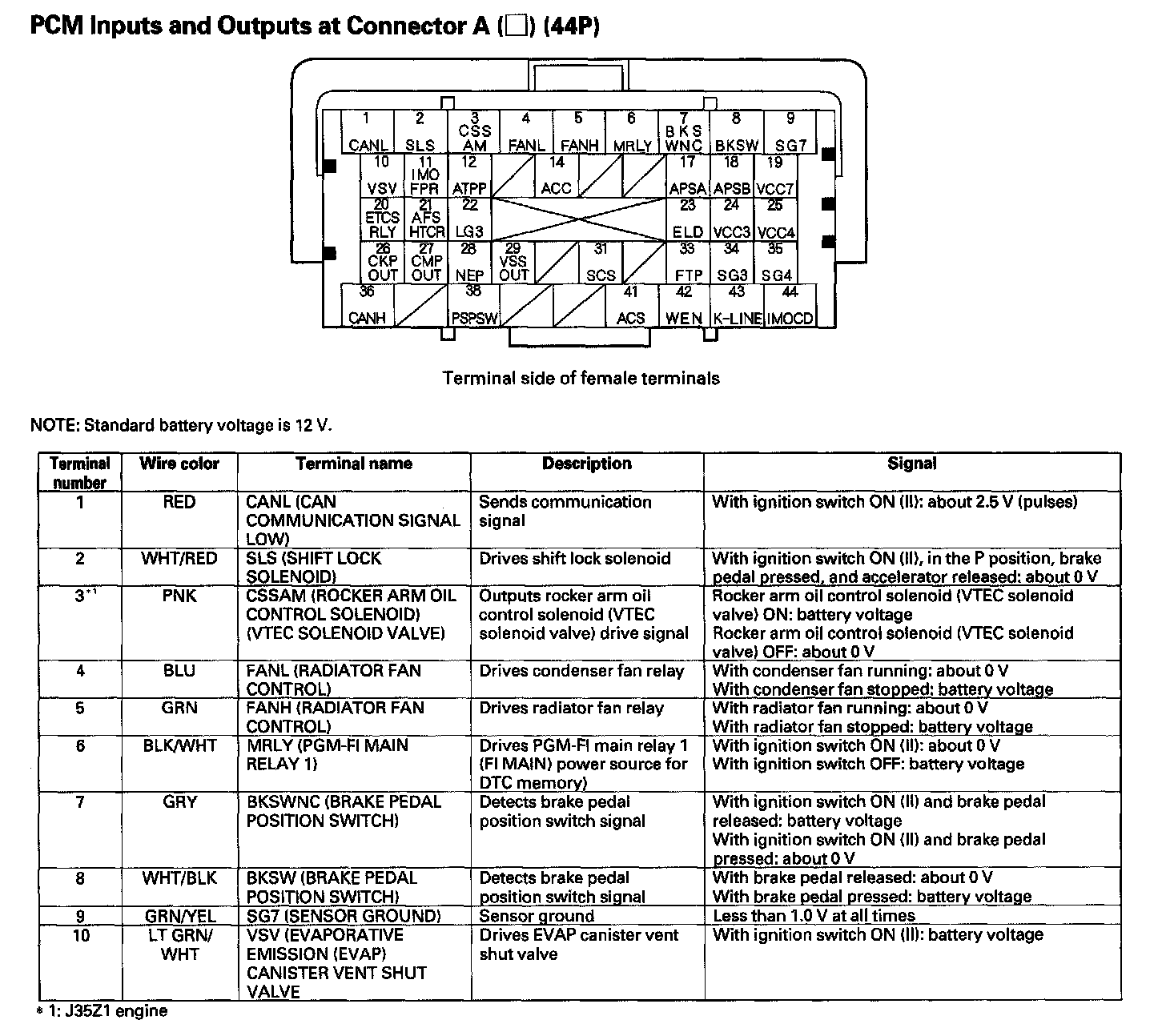

PCM Inputs And Outputs Connector A (44P) (Part 1):

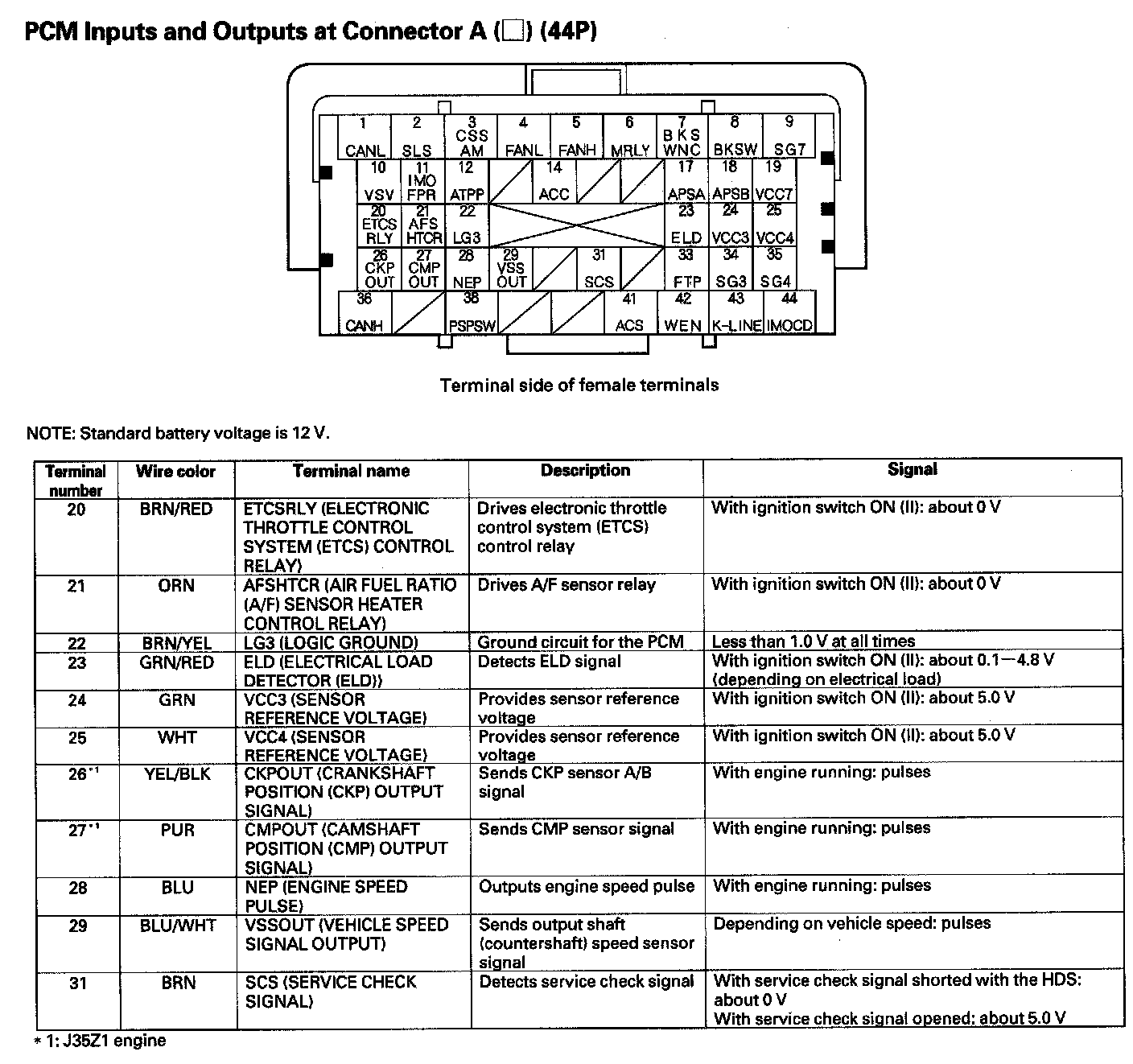

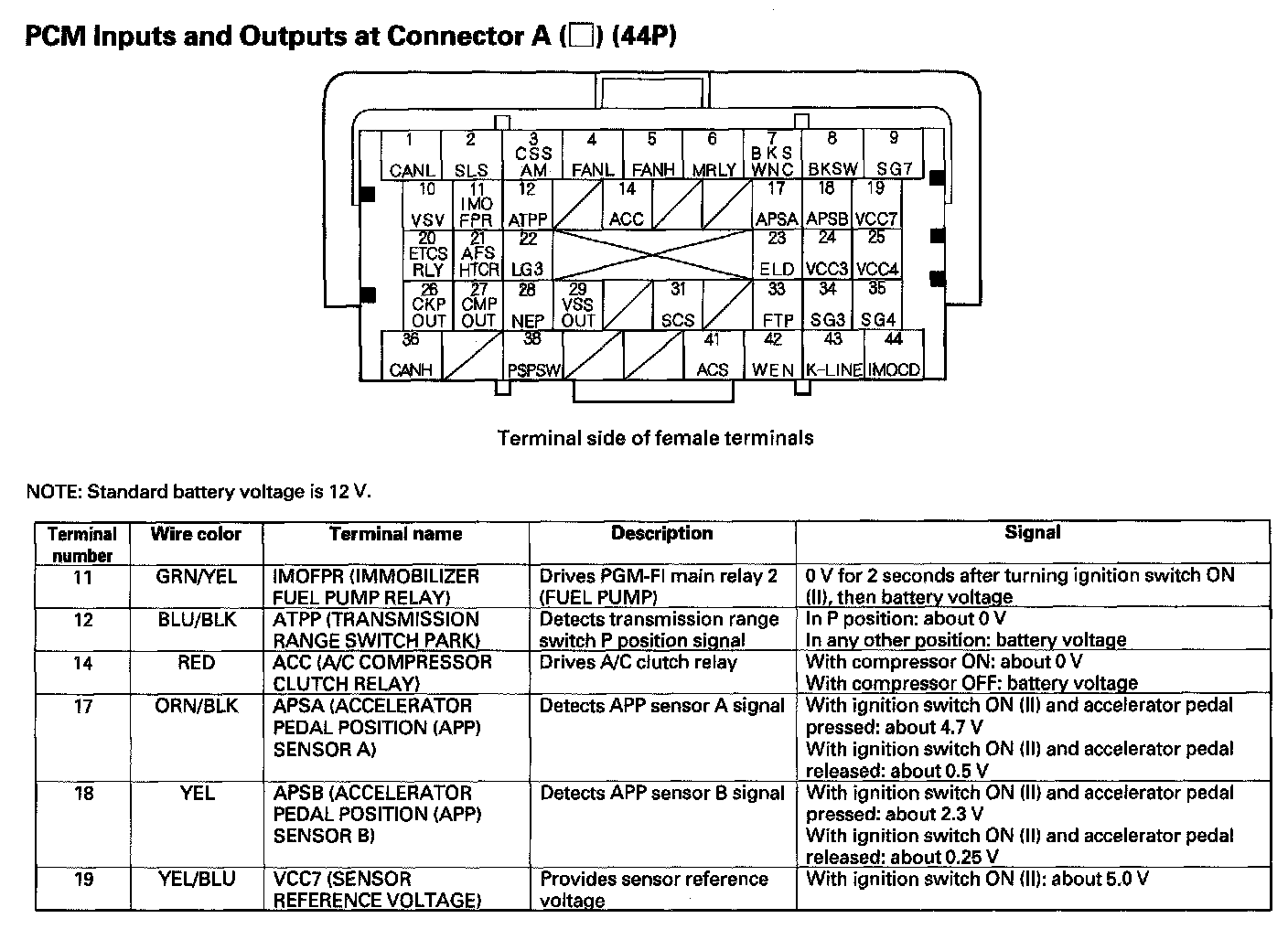

PCM Inputs And Outputs Connector A (44P) (Part 2):

PCM Inputs And Outputs Connector A (44P) (Part 3):

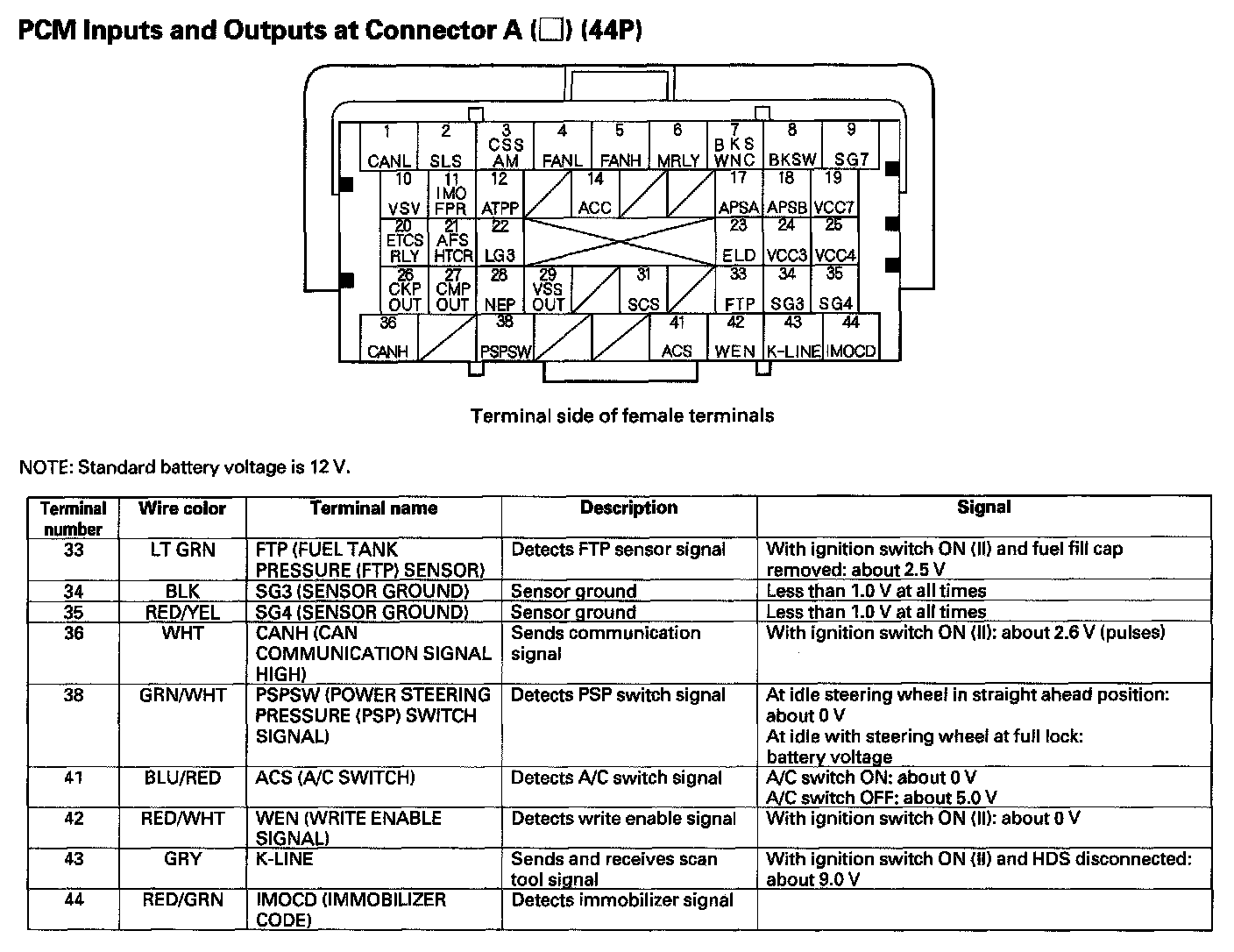

PCM Inputs And Outputs Connector A (44P) (Part 4):

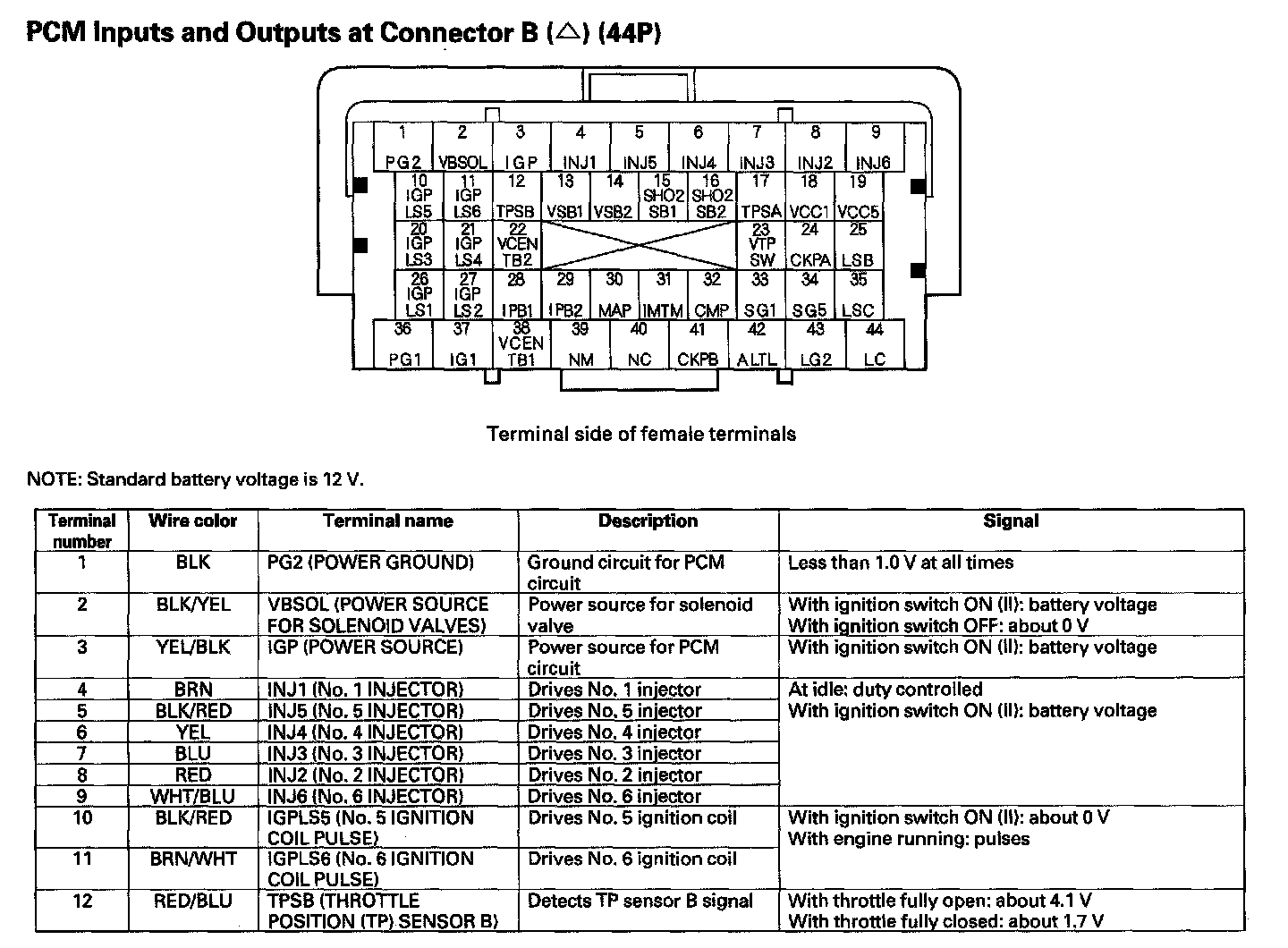

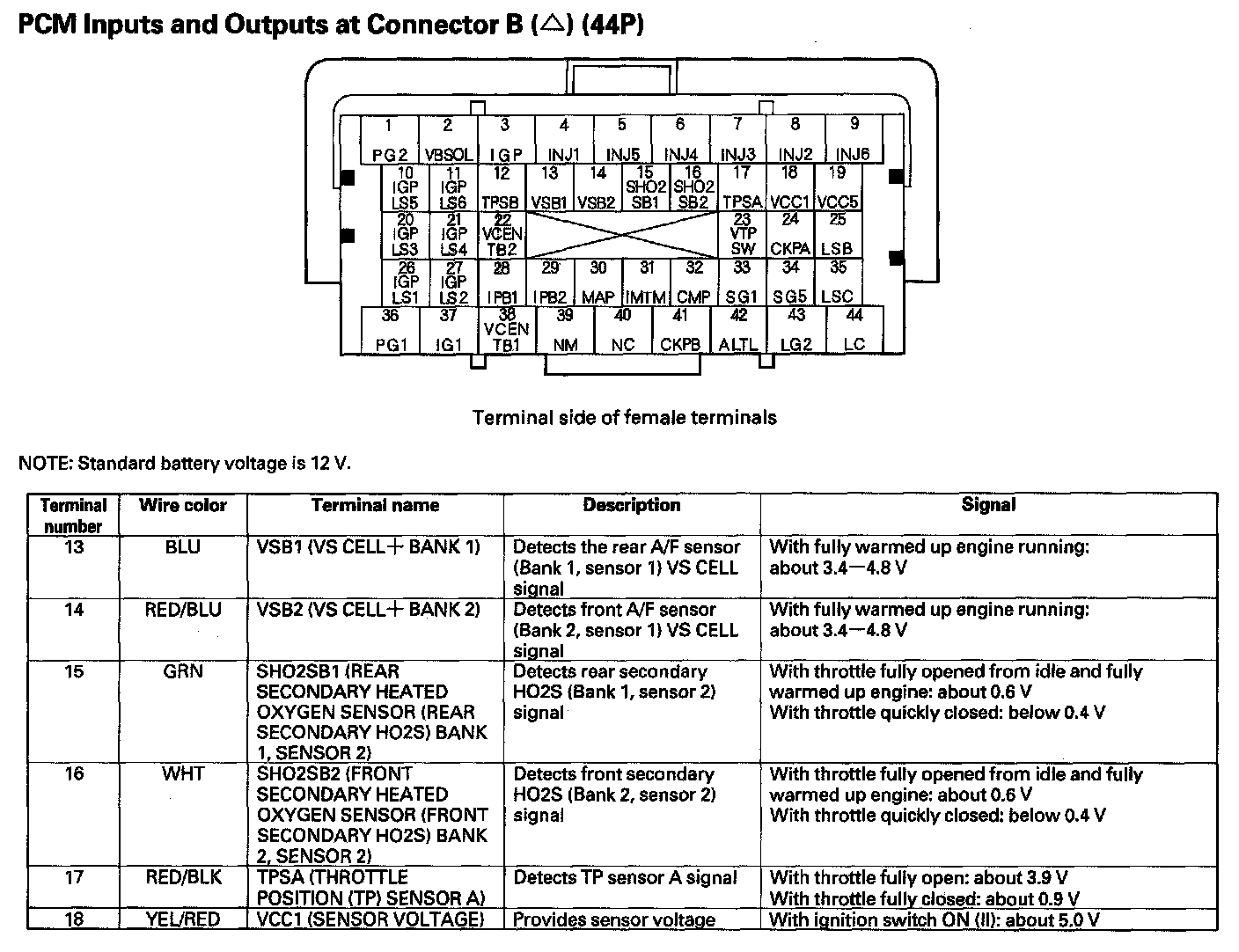

PCM Inputs And Outputs Connector B (44P) (Part 1):

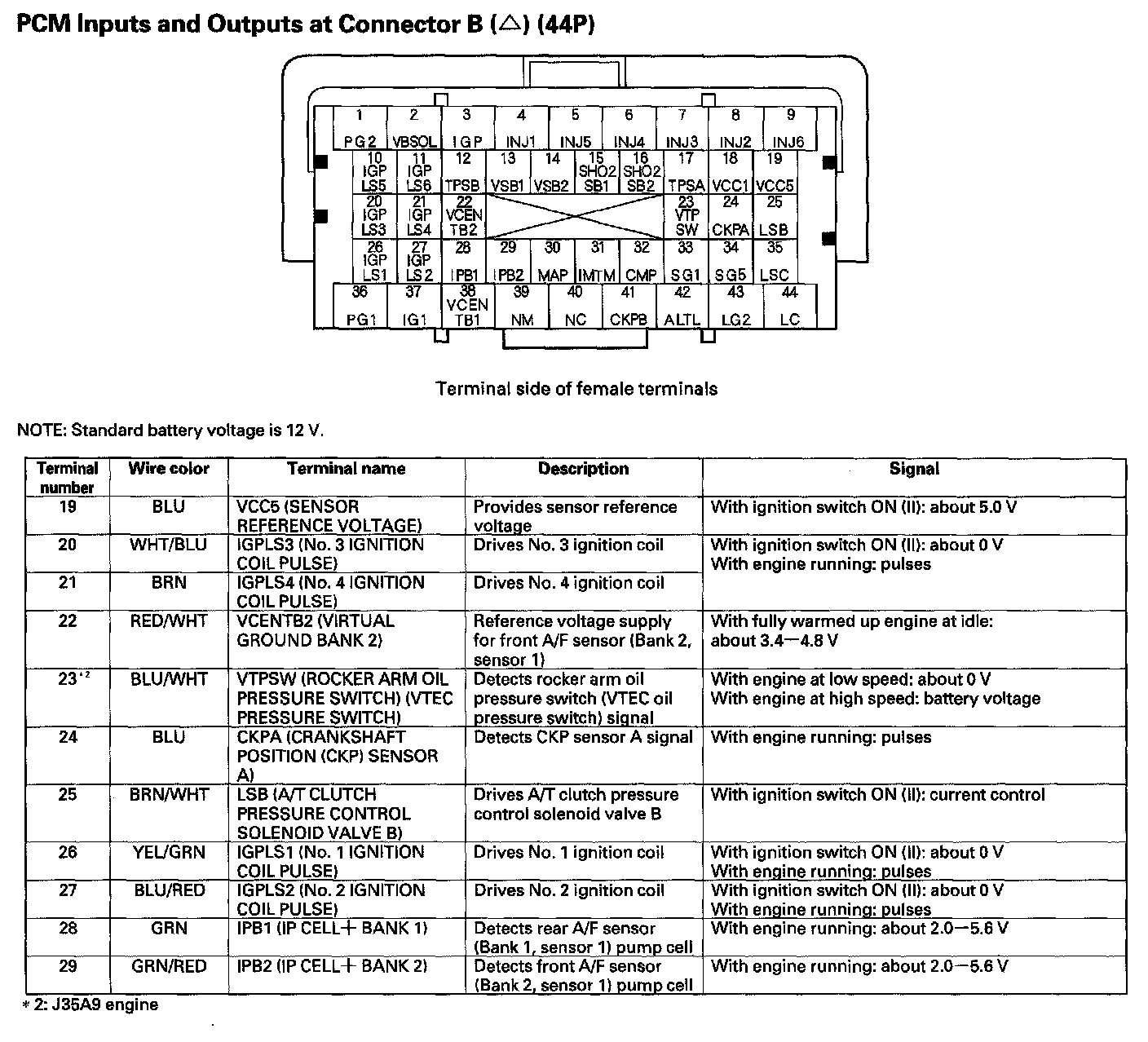

PCM Inputs And Outputs Connector B (44P) (Part 2):

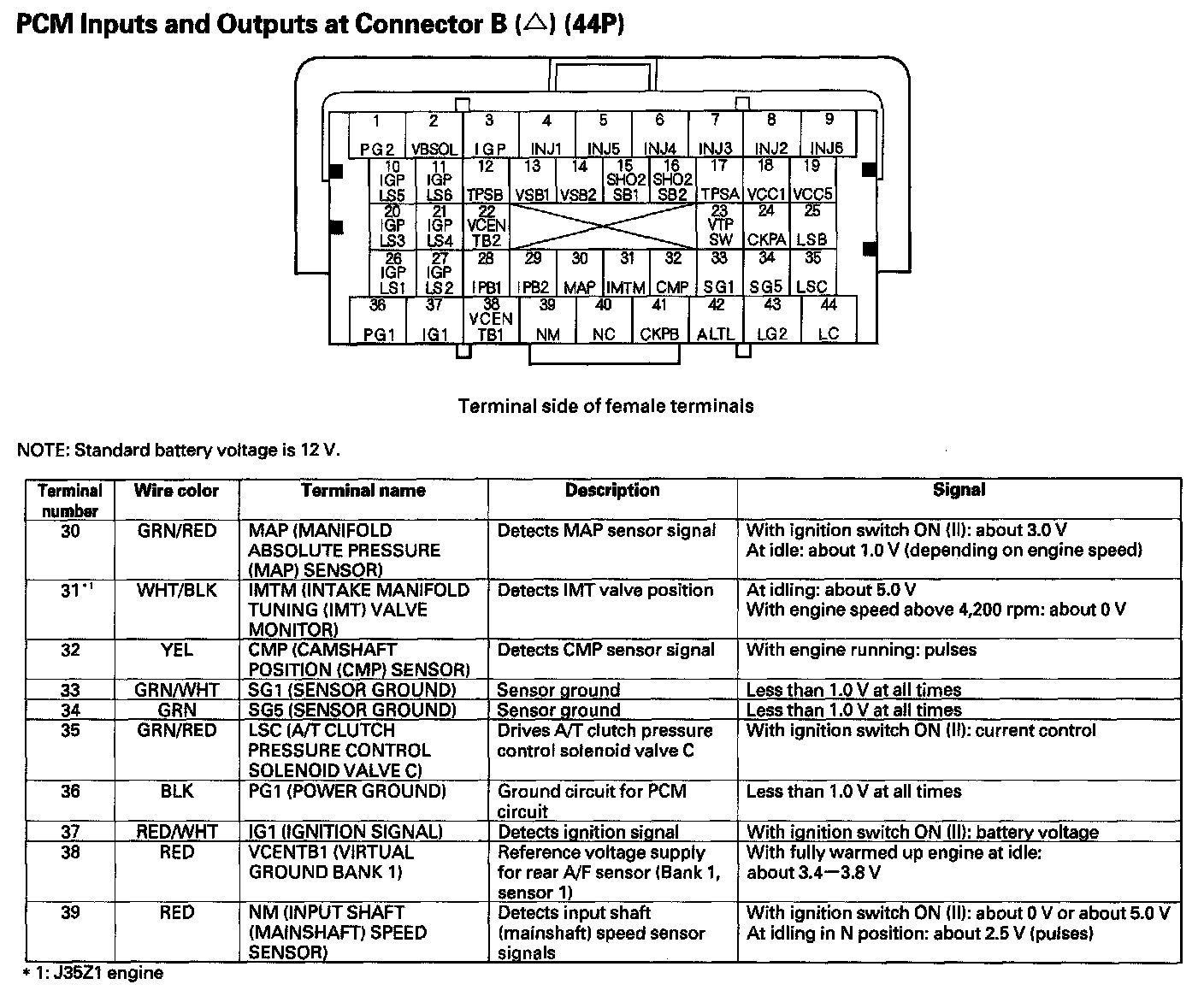

PCM Inputs And Outputs Connector B (44P) (Part 3):

PCM Inputs And Outputs Connector B (44P) (Part 4):

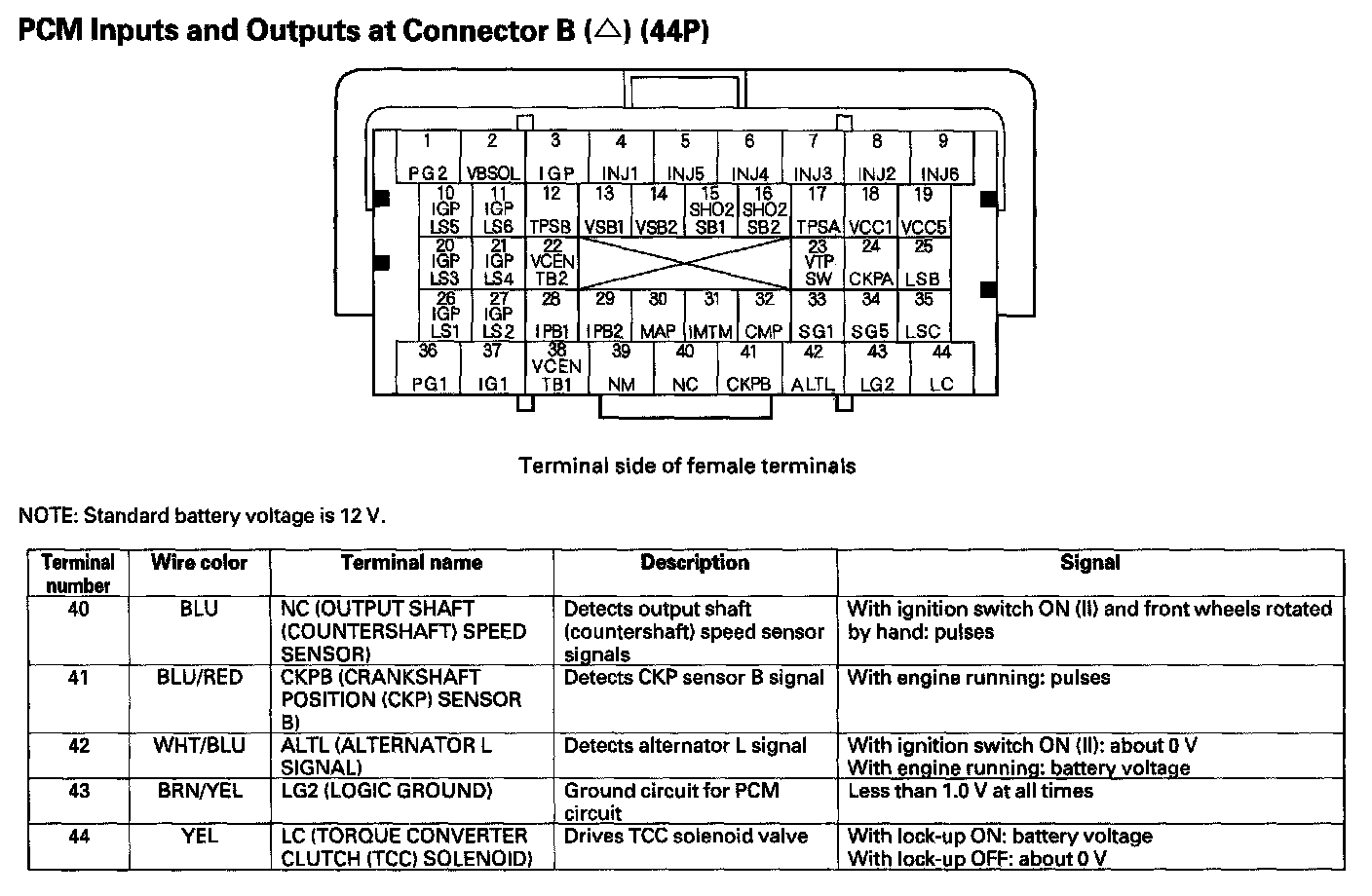

PCM Inputs And Outputs Connector B (44P) (Part 5):

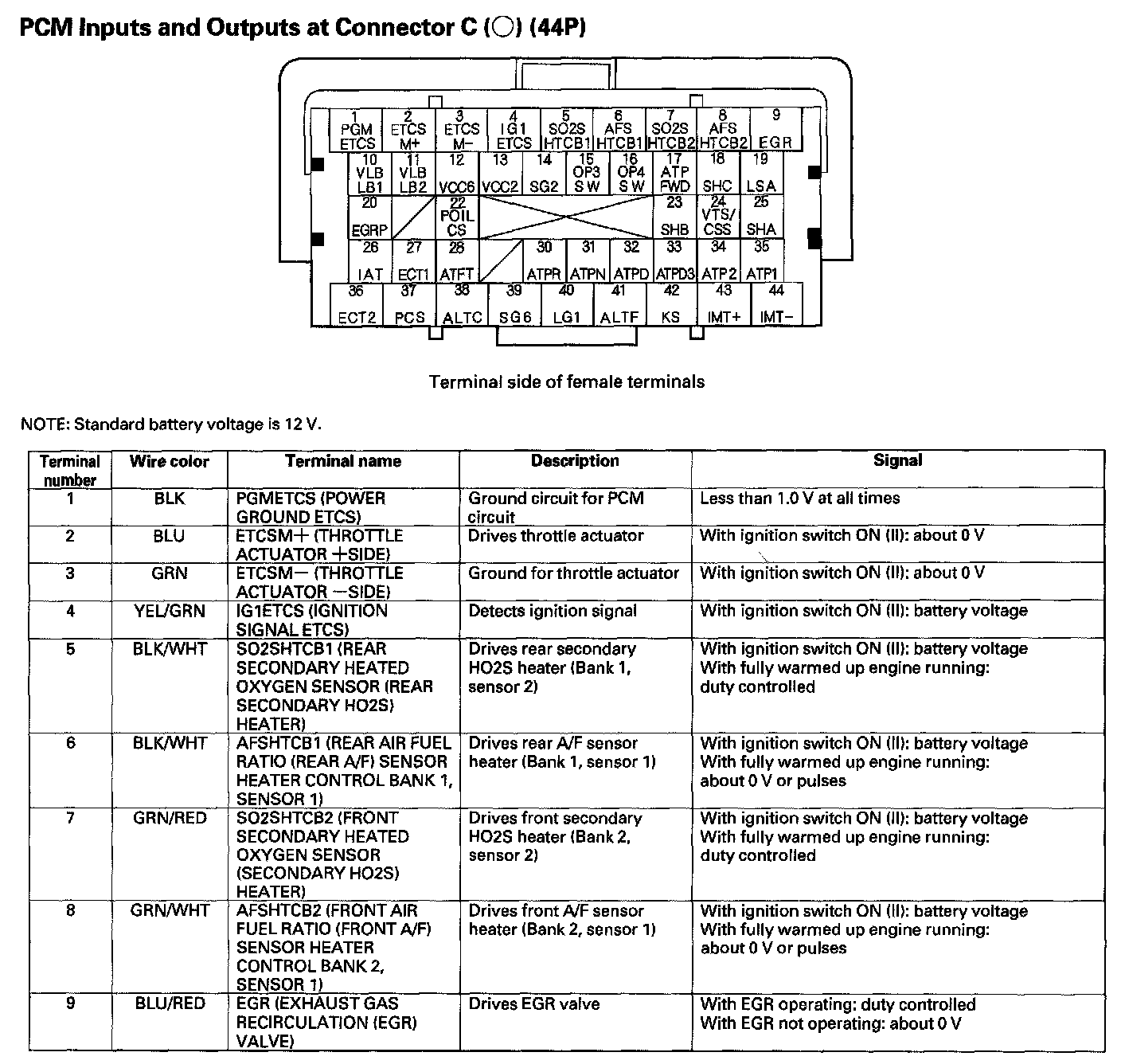

PCM Inputs And Outputs Connector C (44P) (Part 1):

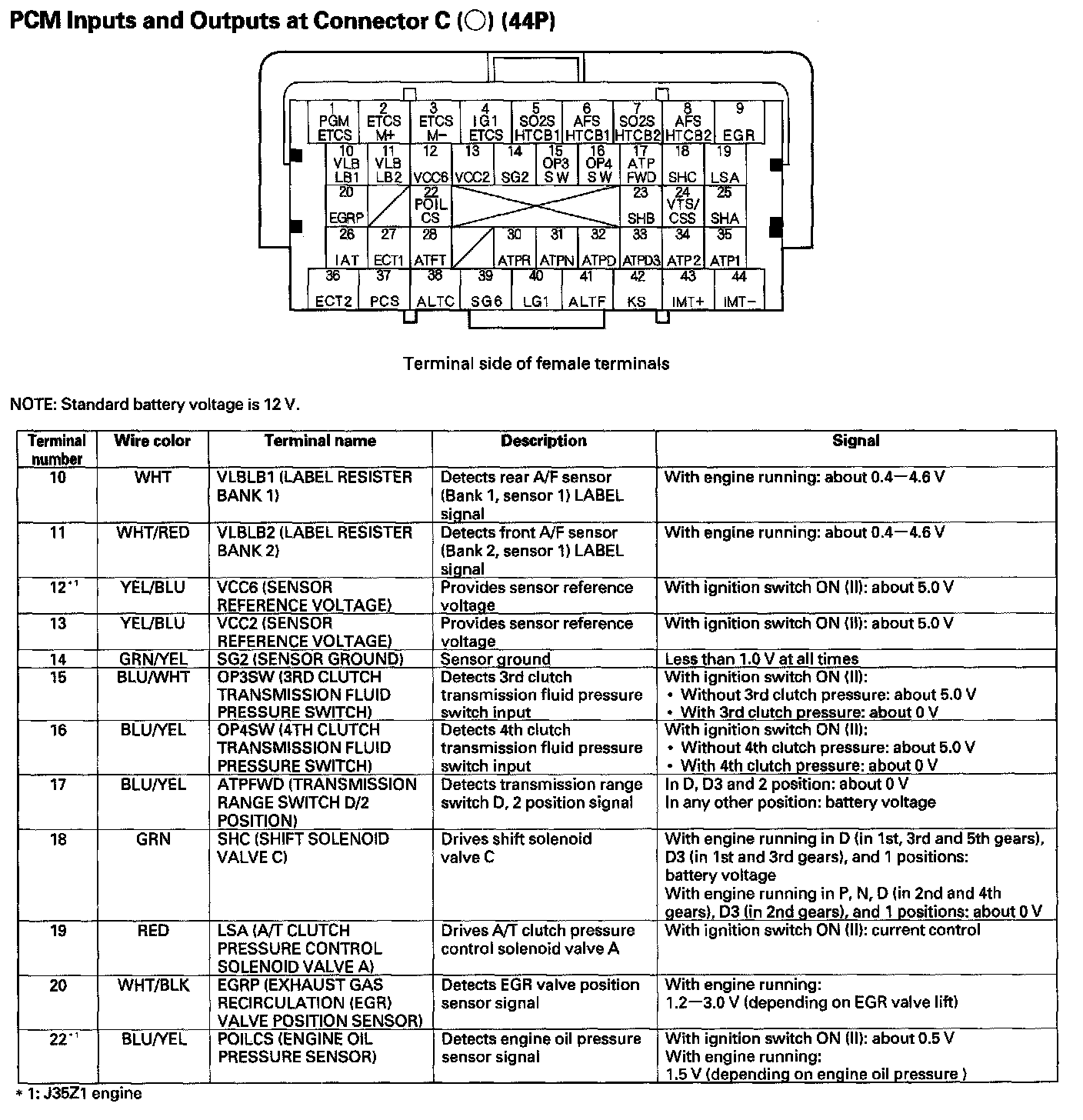

PCM Inputs And Outputs Connector C (44P) (Part 2):

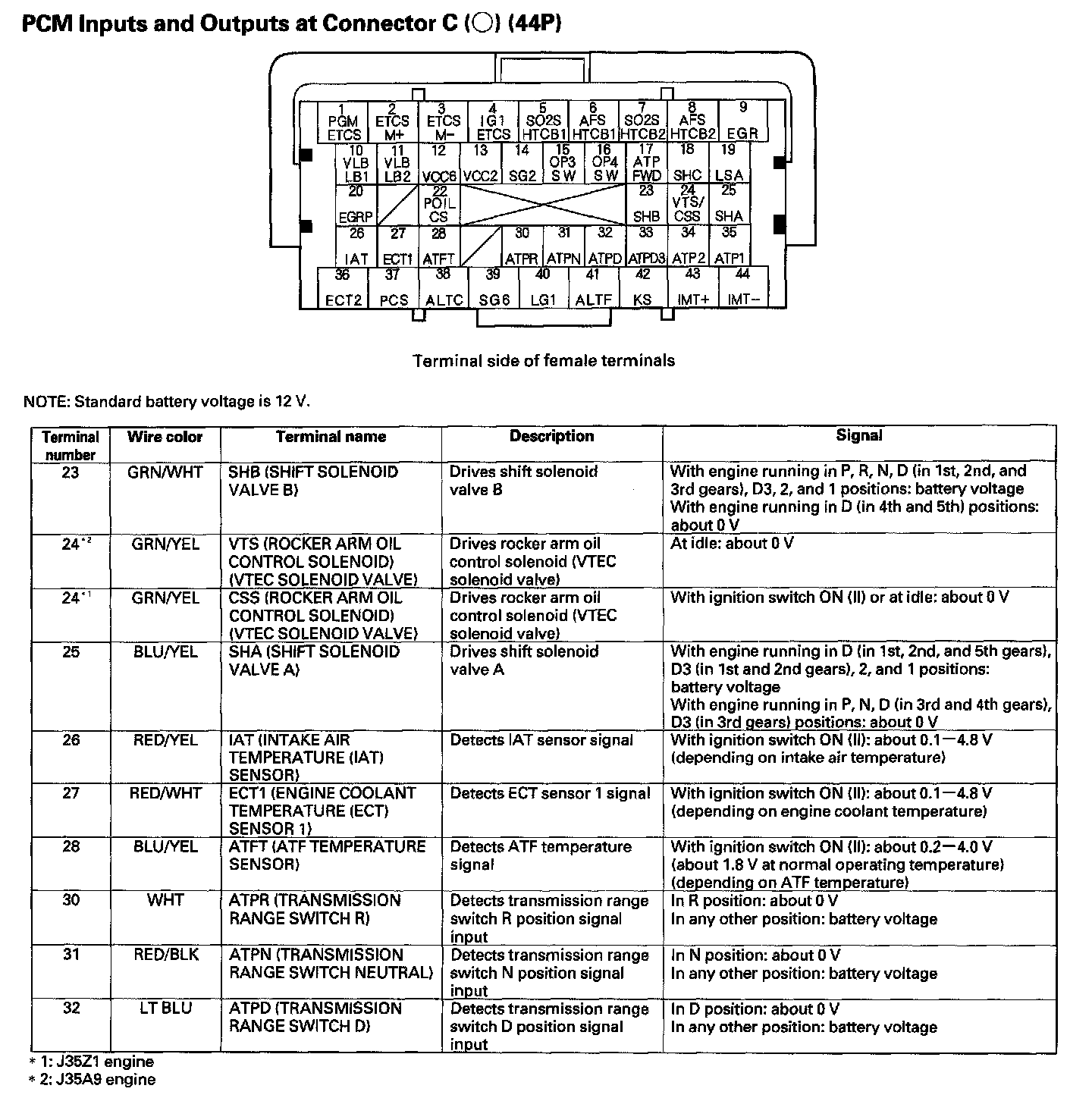

PCM Inputs And Outputs Connector C (44P) (Part 3):

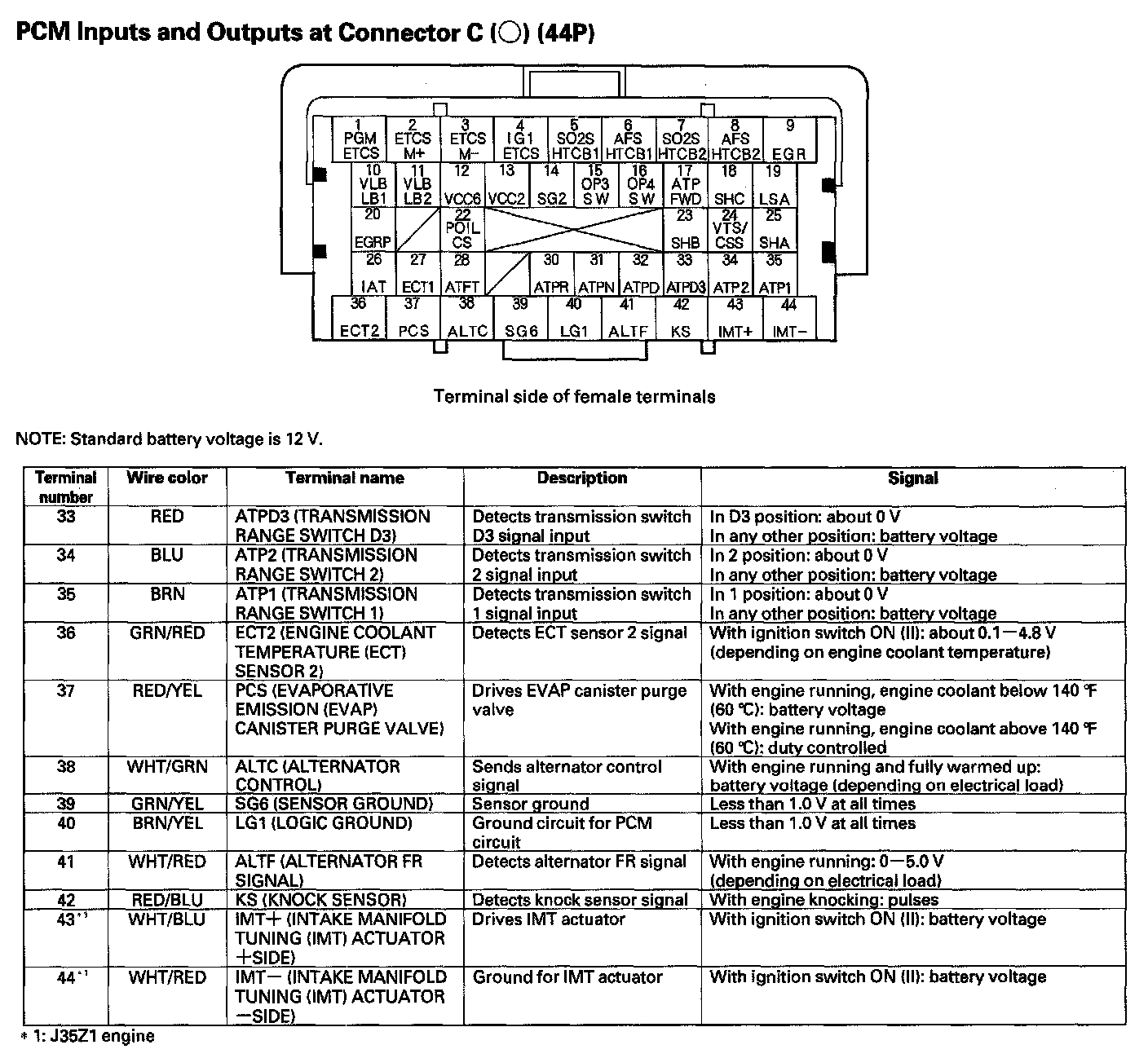

PCM Inputs And Outputs Connector C (44P) (Part 4):
