Oxygen Sensor: Diagrams

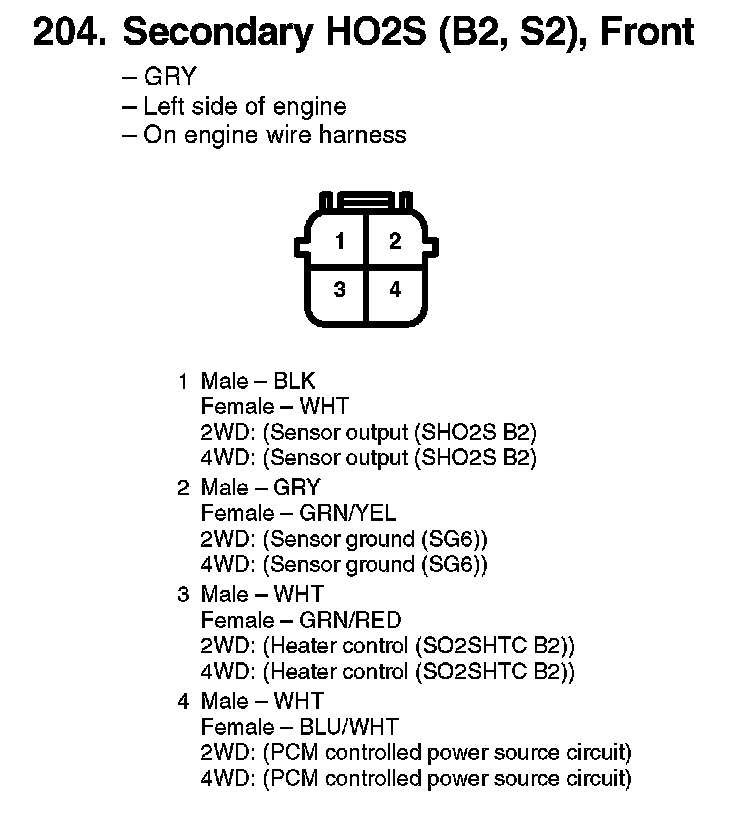

204. Secondary H02S (B2, S2), Front:

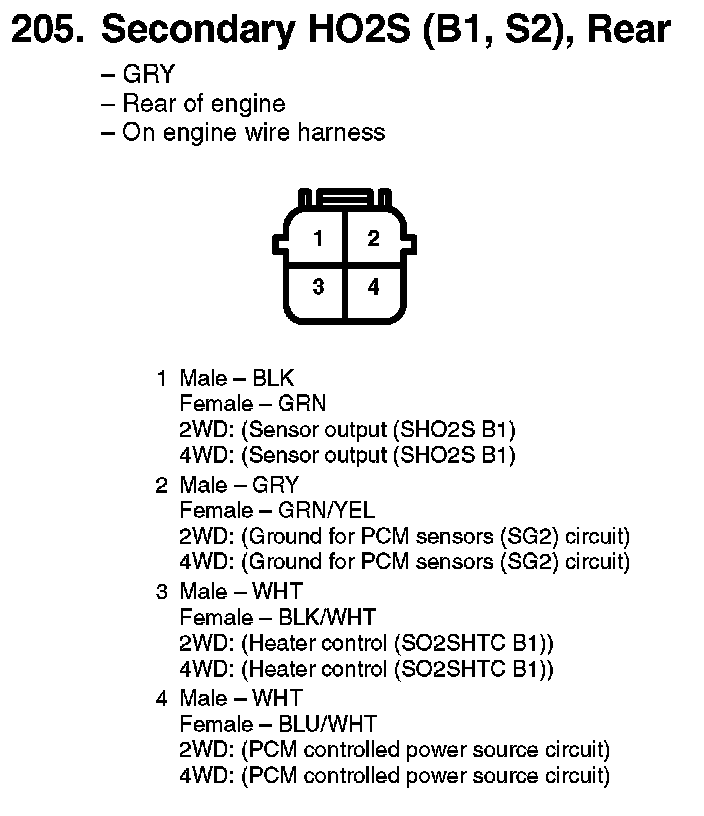

205. Secondary H02S (B1, S2), Rear:

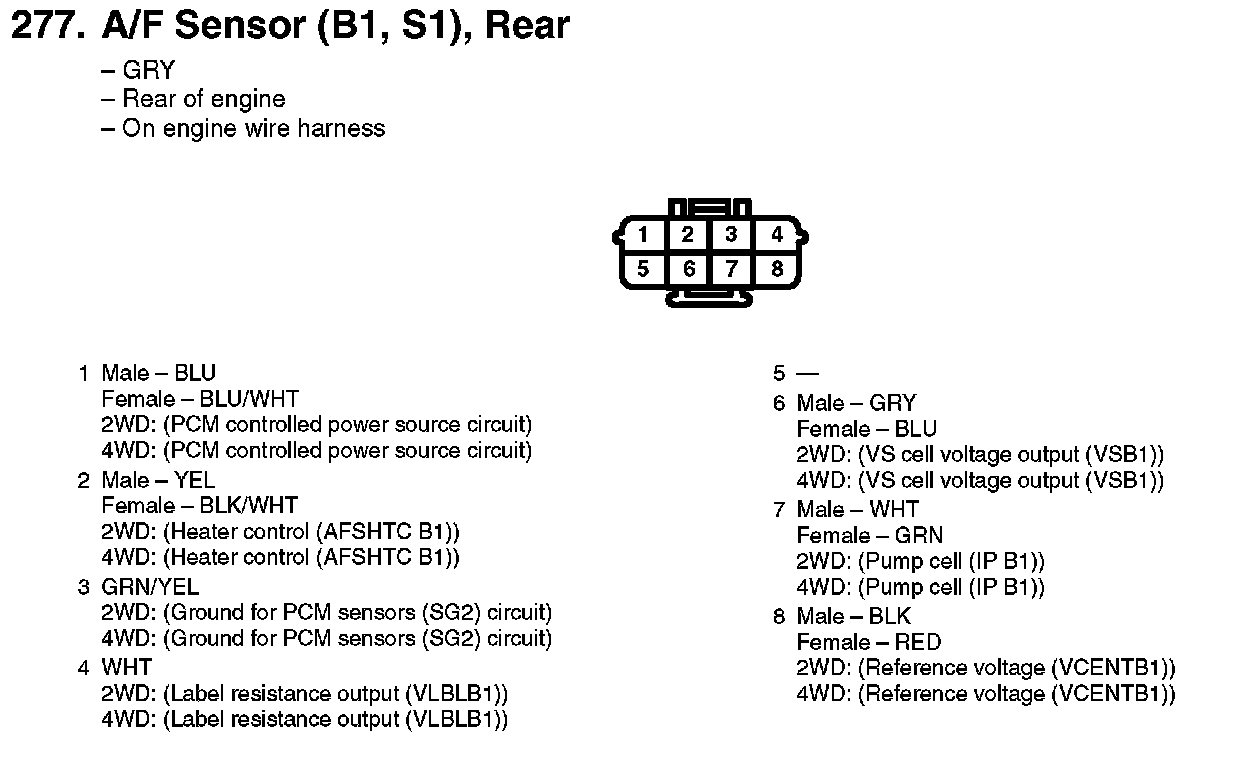

277. A/F Sensor (B1,S1), Rear:

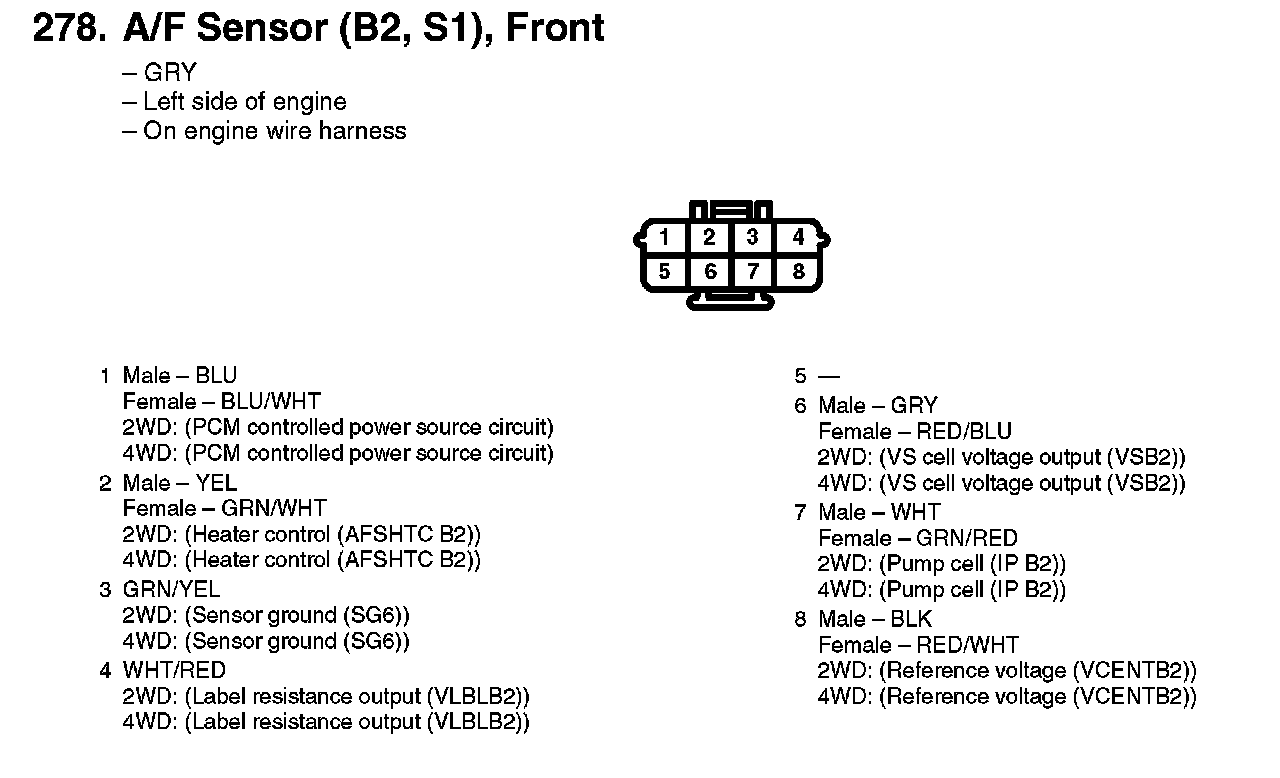

278. A/F Sensor (B2, S1), Front:
