A/F Sensor Replacement
A/F Sensor ReplacementSpecial Tools Required
O2 sensor wrench, Snap-on S6176, or equivalent, commercially, available.
Front Bank (Bank 2)

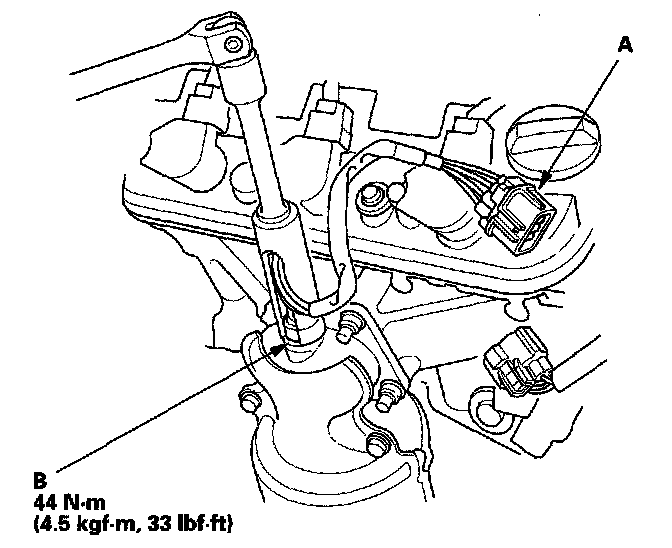

1. Disconnect the front A/F sensor 8P connector (A), then remove the front A/F sensor (B).
2. Install the parts in the reverse order of removal.
Rear Bank(Bank 1)
1. Remove the engine cover.

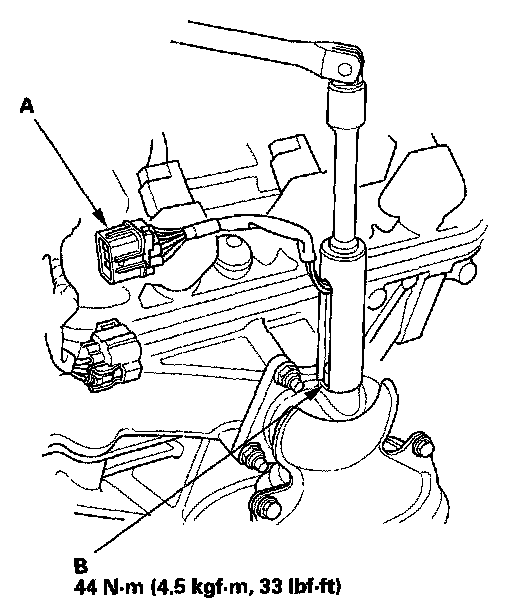

2. Disconnect the rear A/F sensor 8P connector (A), then remove the rear A/F sensor (B).
3. Install the parts in the reverse order of removal.
