VTEC system

Rocker Arm Oil Control Solenoid (VTEC Solenoid Valve) Replacement

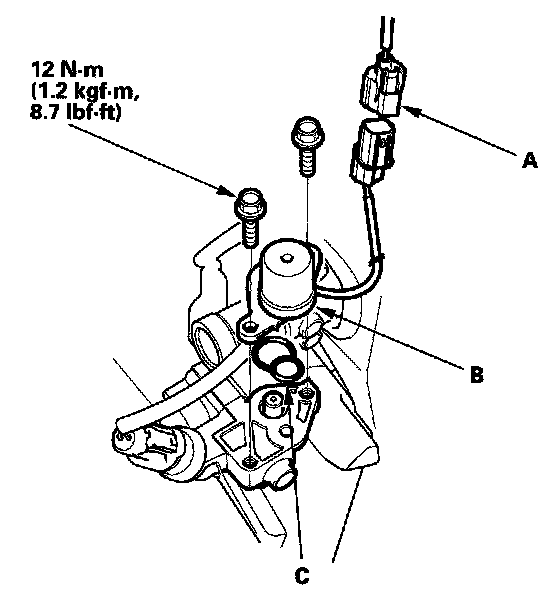

1. Disconnect the rocker arm oil control solenoid (VTEC solenoid valve) connector (A).
2. Remove the rocker arm oil control solenoid (VTEC solenoid valve) (B).
3. Install the parts in the reverse order of removal with a new O-ring (C).
