Engine Mount Control Unit: Service and Repair

Engine Mount Control Unit Replacement

1. Remove the passenger's console side trim.

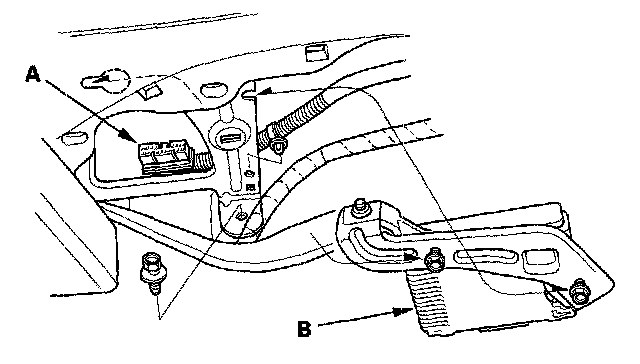

2. Disconnect the engine mount control unit 20P connector (A).
3. Remove the bolts and the engine mount control unit(B).
4. Install the parts in the reverse order of removal.
