Instrument Panel Control Module: Locations

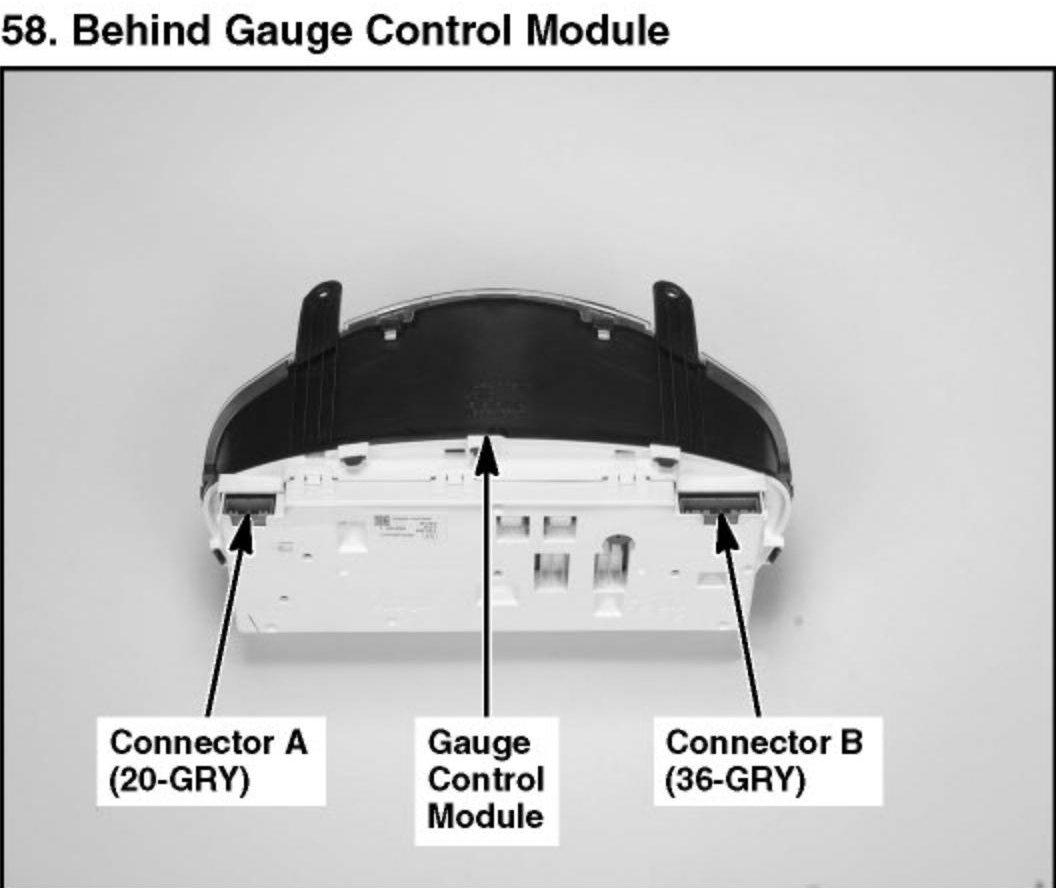

58. Behind Gauge Control Module:

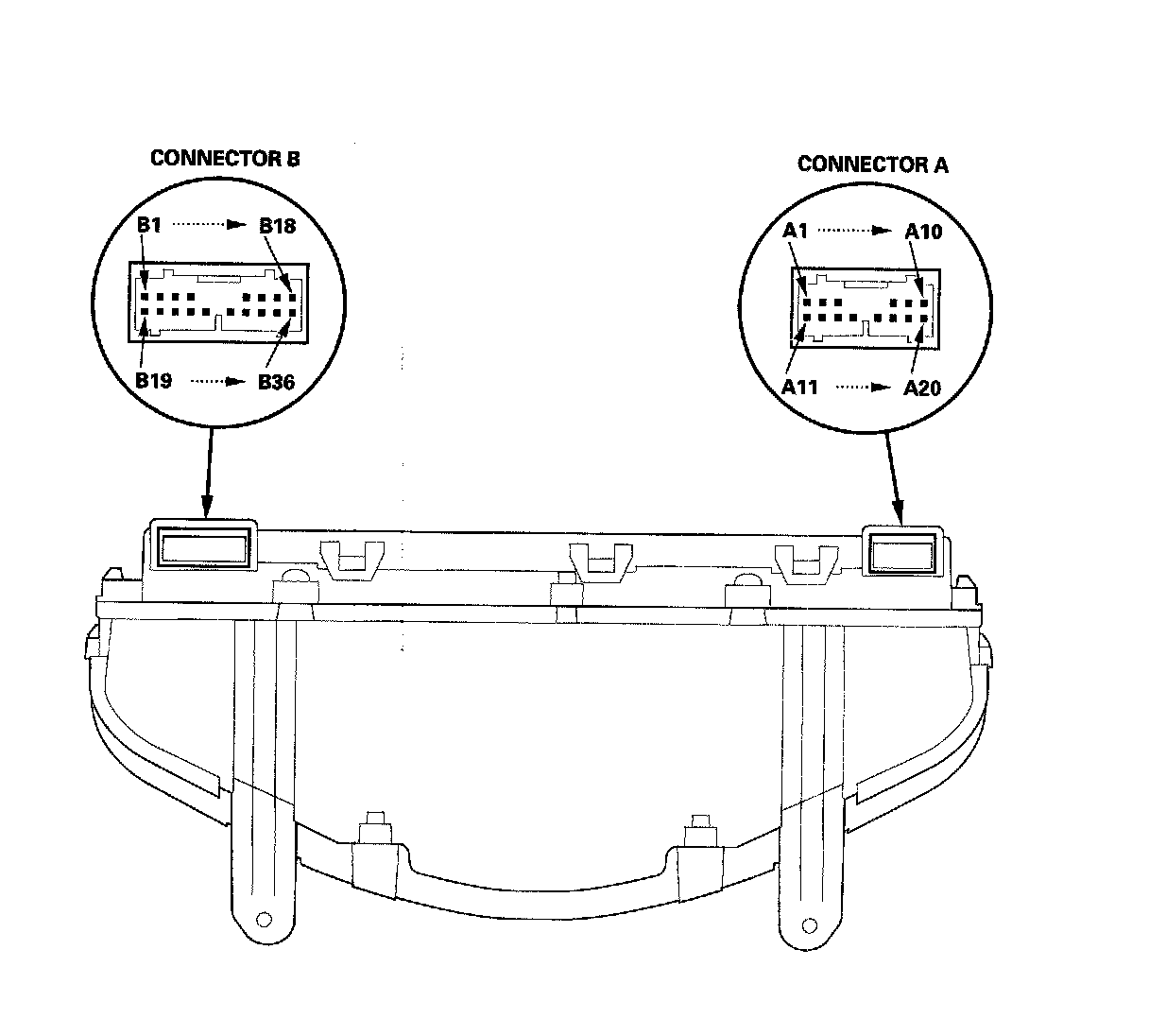

Gauges Component Location Index:

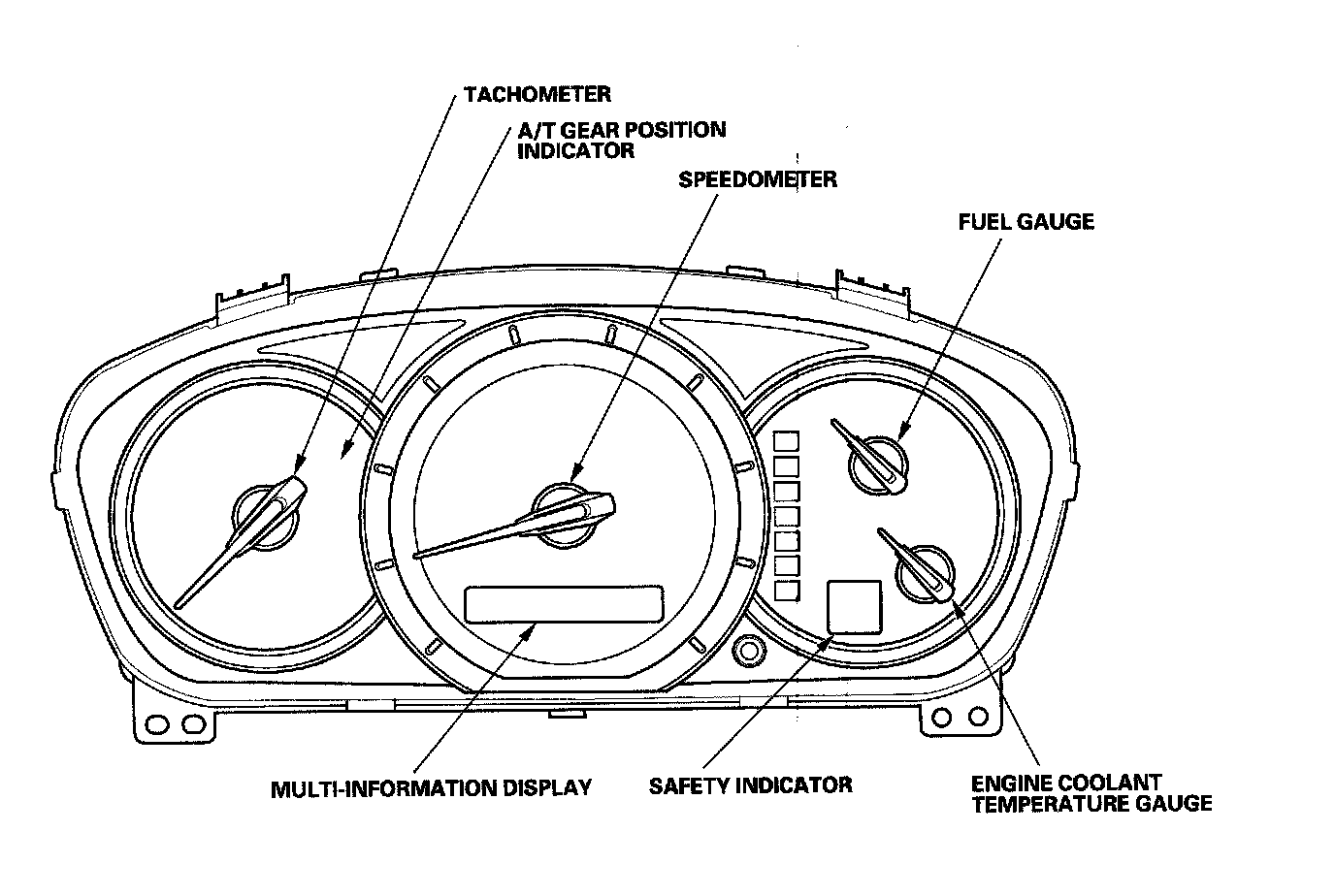

Gauges Component Location Index:

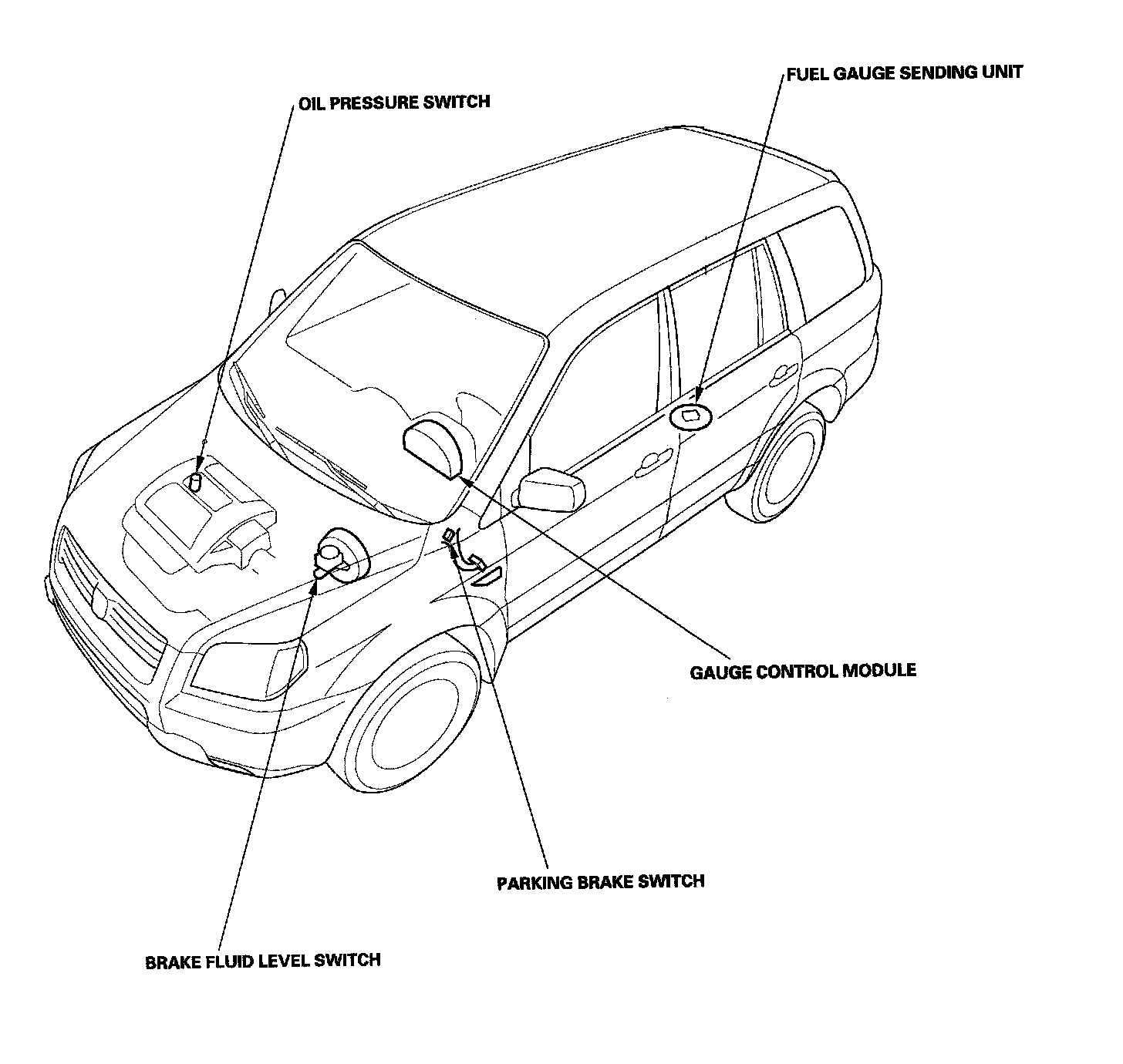

Gauges Component Location Index:
