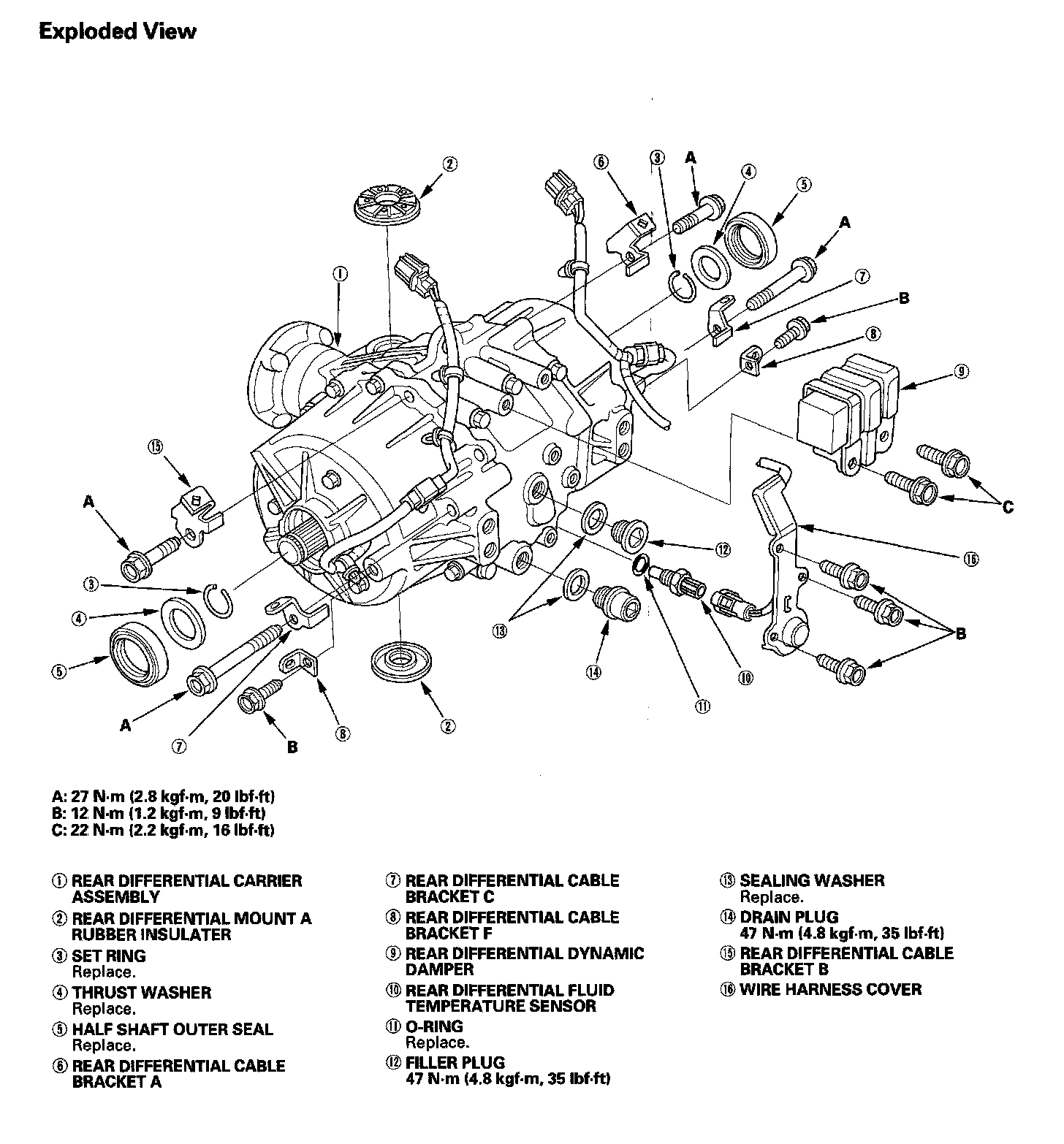

Overhaul Specifications

Differential

Differential:





For information regarding Differential Overhaul Specifications, please refer to Service and Repair, Procedures. Service and Repair
