Cruise Control Set/decel, Resume/accel. Cancel Switch Test/Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ), in the SRS before doing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
2. Remove the cover (A), then remove the set/decel, resume/accel, cancel switch (B).

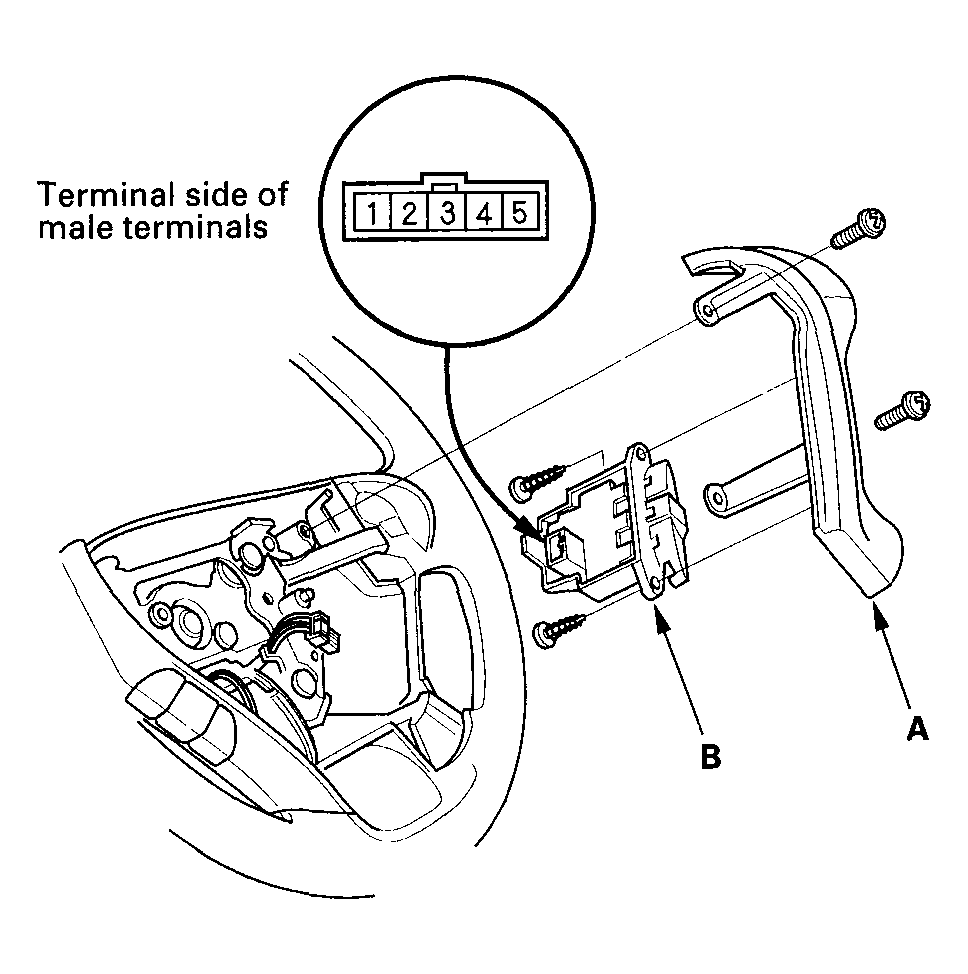

   Fig 1: Removing Set/Decel, Resume/Accel, Cancel Switch And Identifying Connector Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check for continuity between the terminals in each switch position according to the illustration.
   • If there is continuity, and it matches the table, but switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or both positions, replace the switch.
     Fig 2: Identifying Switch Position - Set/Decel, Resume/Accel, Cancel Switch

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
