MAP Sensor Replacement

Remove the engine cover (see step 1 under IGNITION COIL REMOVAL/INSTALLATION ).
Disconnect the MAP sensor 3P connector (A).

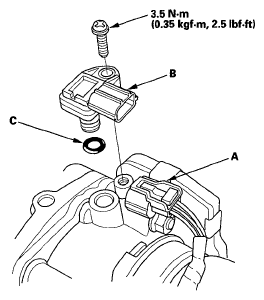

Fig 1: MAP Sensor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the MAP sensor (B).
Install the parts in the reverse order of removal with a new O-ring (C).
