Exploded View

J35A9 Engine

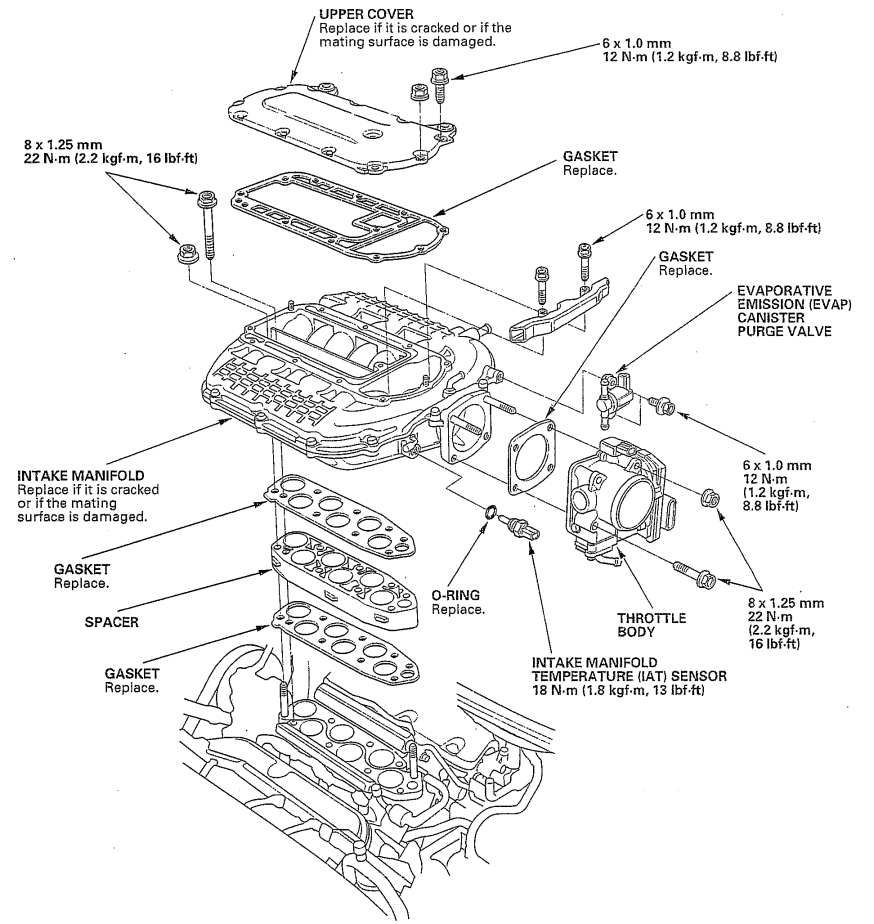

Fig 1: Exploded View Of Intake Manifold Exhaust System With Torque Specifications (J35A9 Engine)
G00465046Courtesy of AMERICAN HONDA MOTOR CO., INC.

J35Z1 Engine

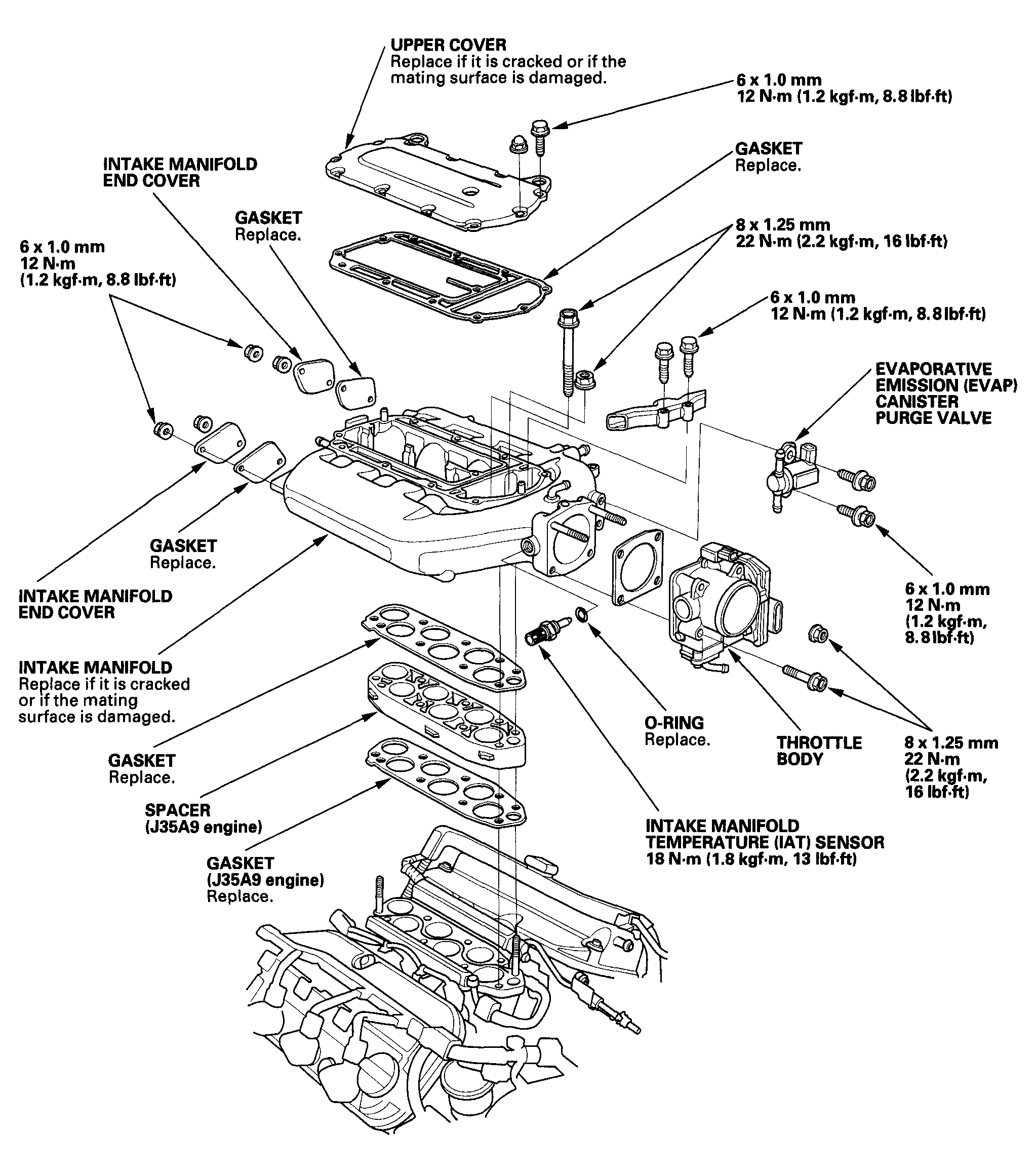

Fig 2: Exploded View Of Intake Manifold Exhaust System With Torque Specifications (J35Z1 Engine)
G04244996Courtesy of AMERICAN HONDA MOTOR CO., INC.
