TPMS Control Unit Inputs and Outputs for Connector B (20P)

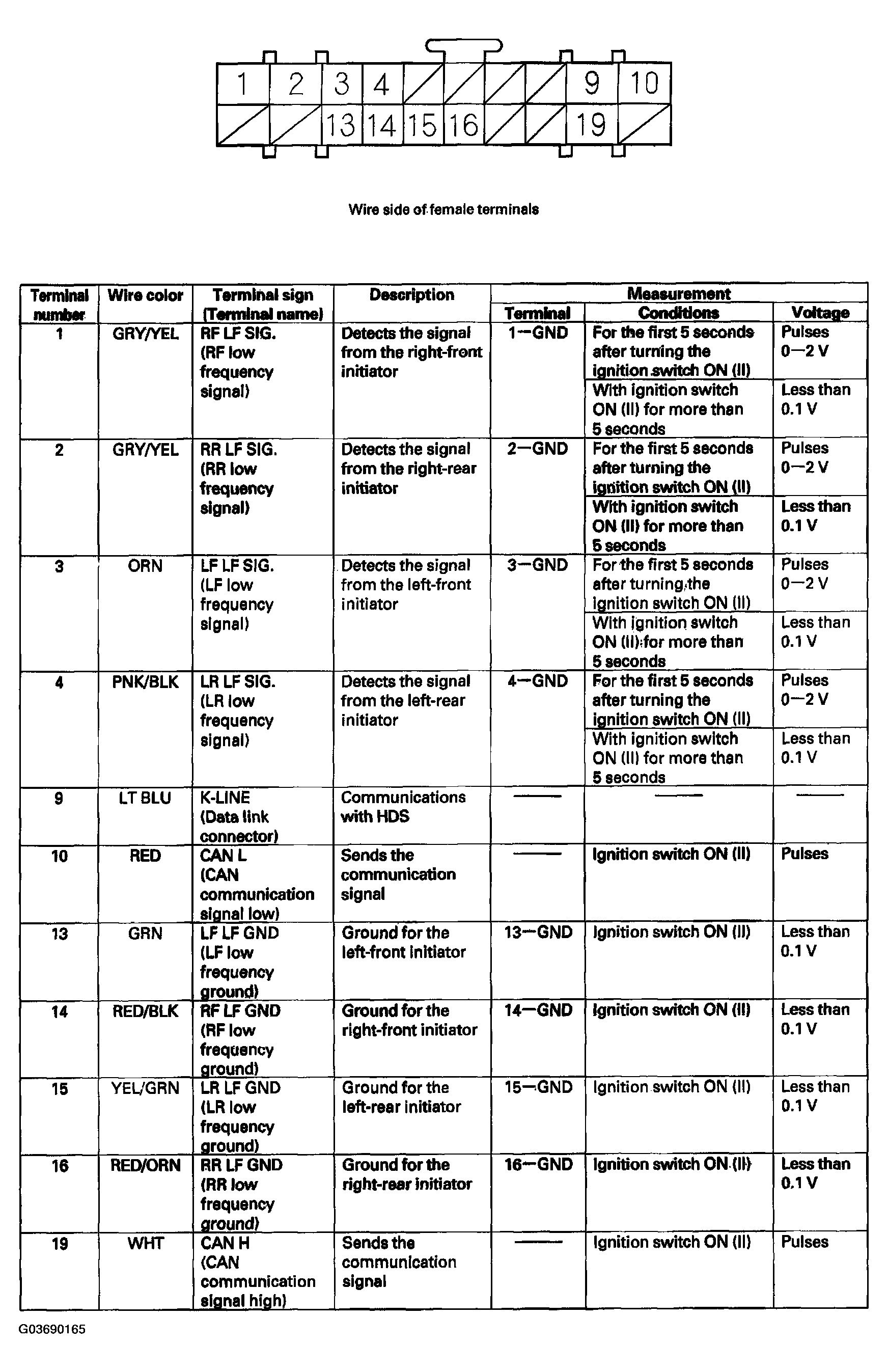

Fig 1: Identifying TPMS Control Unit Connector B (20P)
G03690165Courtesy of AMERICAN HONDA MOTOR CO., INC.
