Connector to Fuse/Relay Box Index

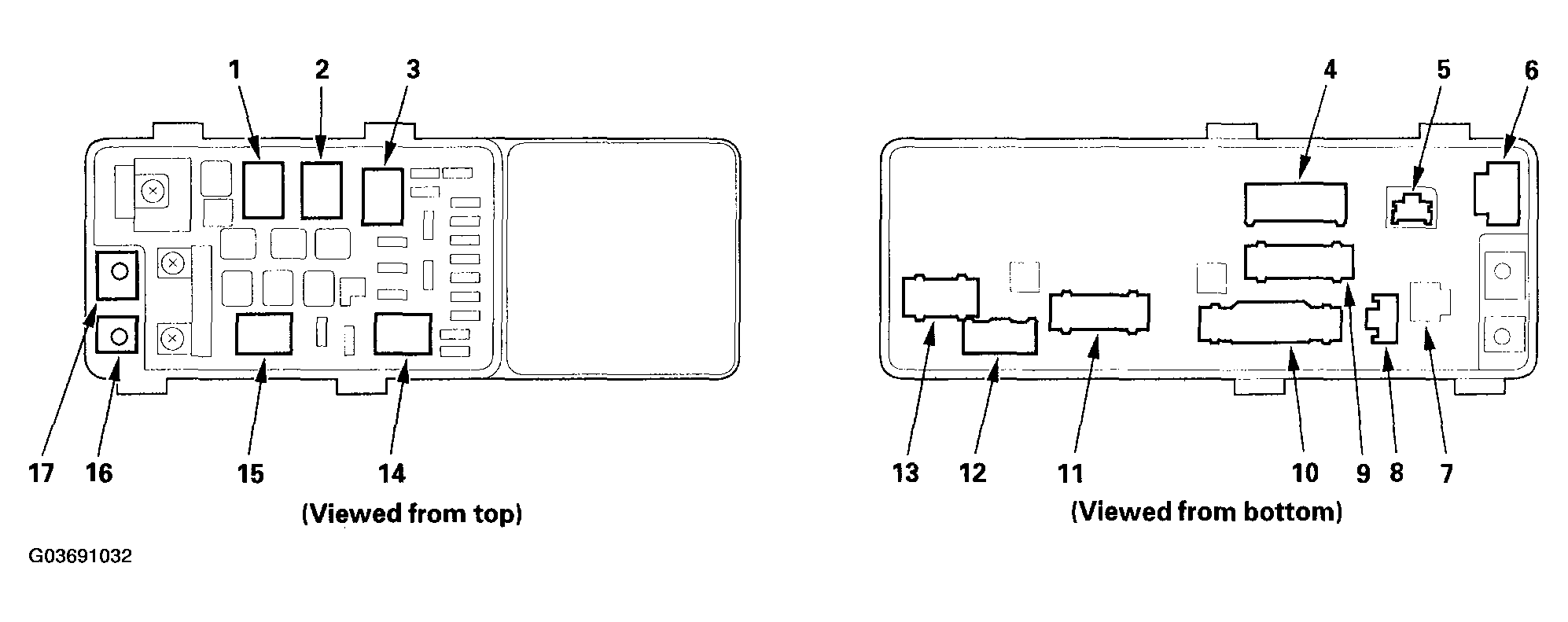

Underhood Fuse/Relay Box
UNDER-HOOD FUSE/RELAY BOX CHART
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A (ELD unit) | 5 | 3 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| A/C compressor clutch relay | 2 | 4 | |
| B | 7 | 1 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| Blower motor relay | 1 | 4 | |
| C | 8 | 2 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| D | 4 | 9 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| E | 9 | 16 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| ETCS relay | 15 | 4 | |
| F | 10 | 20 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| G | 6 | 2 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| H | 11 | 18 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| Heated windshield wiper area relay | 3 | 4 | |
| J | 13 | 10 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| K | 12 | 5 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| Seat heater relay | 14 | 4 | |
| T1 | 16 | Starter cable (see STARTER CABLE ) | |
| T101 | 17 | Alternator +B cable (see STARTER CABLE ) |

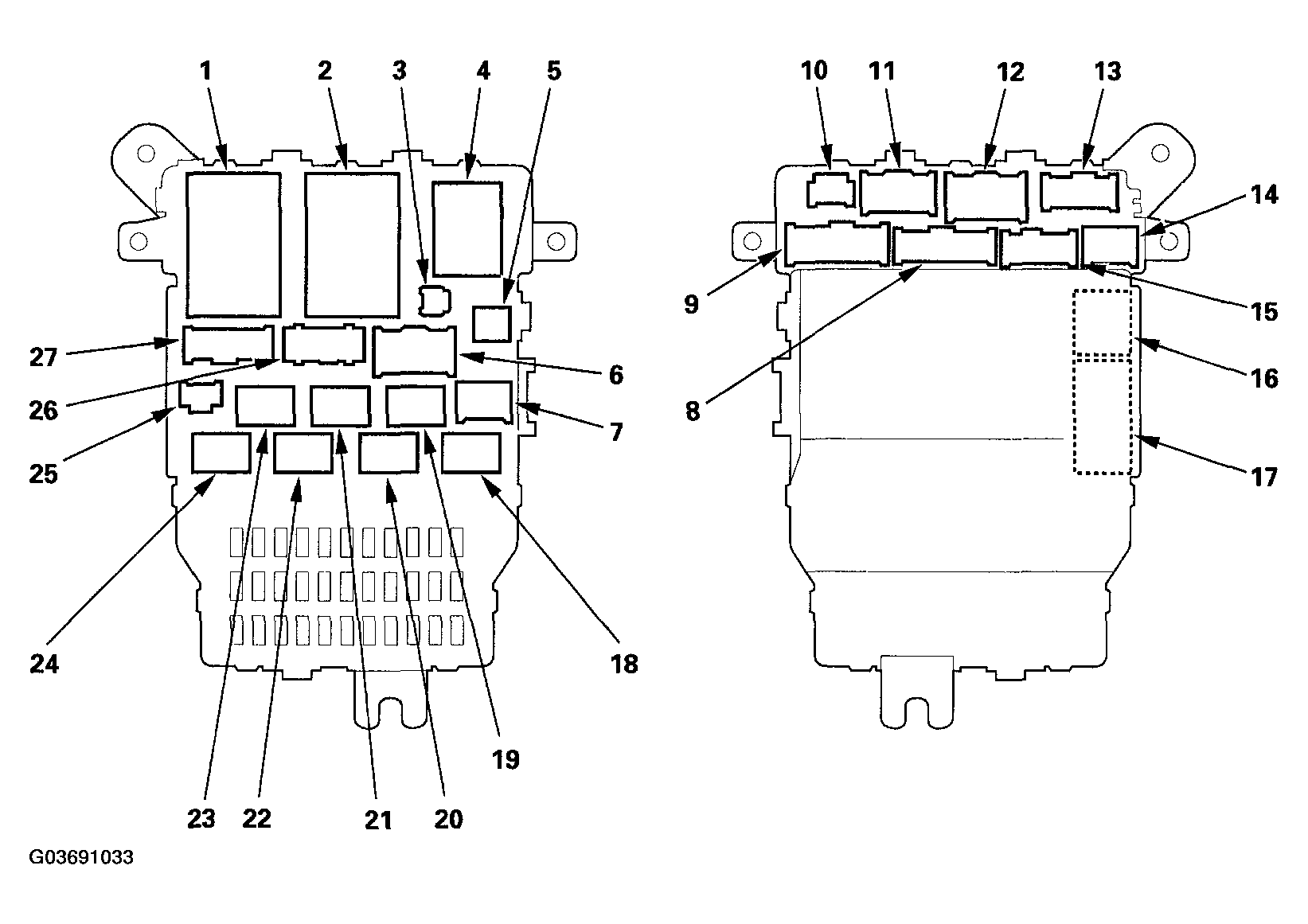

Underdash Fuse/Relay Box
UNDER-DASH FUSE/RELAY BOX CHART
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A | 6 | 6 | Ignition switch harness (see IGNITION SWITCH HARNESS ) |
| A/F sensor relay | 20 | 4 | |
| B | 12 | 6 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| C | 11 | 12 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| D | 13 | 17 | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| E | 8 | 16 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| F | 9 | 14 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| G | 14 | 6 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| H | 15 | 14 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| Ignition coil relay | 23 | 4 | |
| J | 27 | 21 | Driver's door subharness (see DRIVER'S DOOR WIRE HARNESS (USA: RTS AND RTL, CANADA: EXL) ) |
| K | 26 | 12 | Driver's door subharness (see DRIVER'S DOOR WIRE HARNESS (USA: RTS AND RTL, CANADA: EXL) ) |
| M | 25 | 3 | MICS service check connector |
| N | 2 | 45 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| P(MICU) | 17 | 30 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| PGM-FI main relay 1 | 21 | 4 | |
| PGM-FI main relay 2 (fuel pump) | 24 | 4 | |
| Power window relay | 22 | 4 | |
| Q(MICU) | 16 | 14 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| R (MES connector) | 3 | 2 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| Rear accessory power socket relay | 19 | 4 | |
| S | 5 | 2 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| Starter cut relay | 18 | 4 | |
| T | 7 | 6 | Optional connector |
| Turn signal/hazard relay | 4 | 6 | |
| W | 10 | 5 | Roof wire harness (see ROOF WIRE HARNESS ) |
| X | 1 | 39 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |

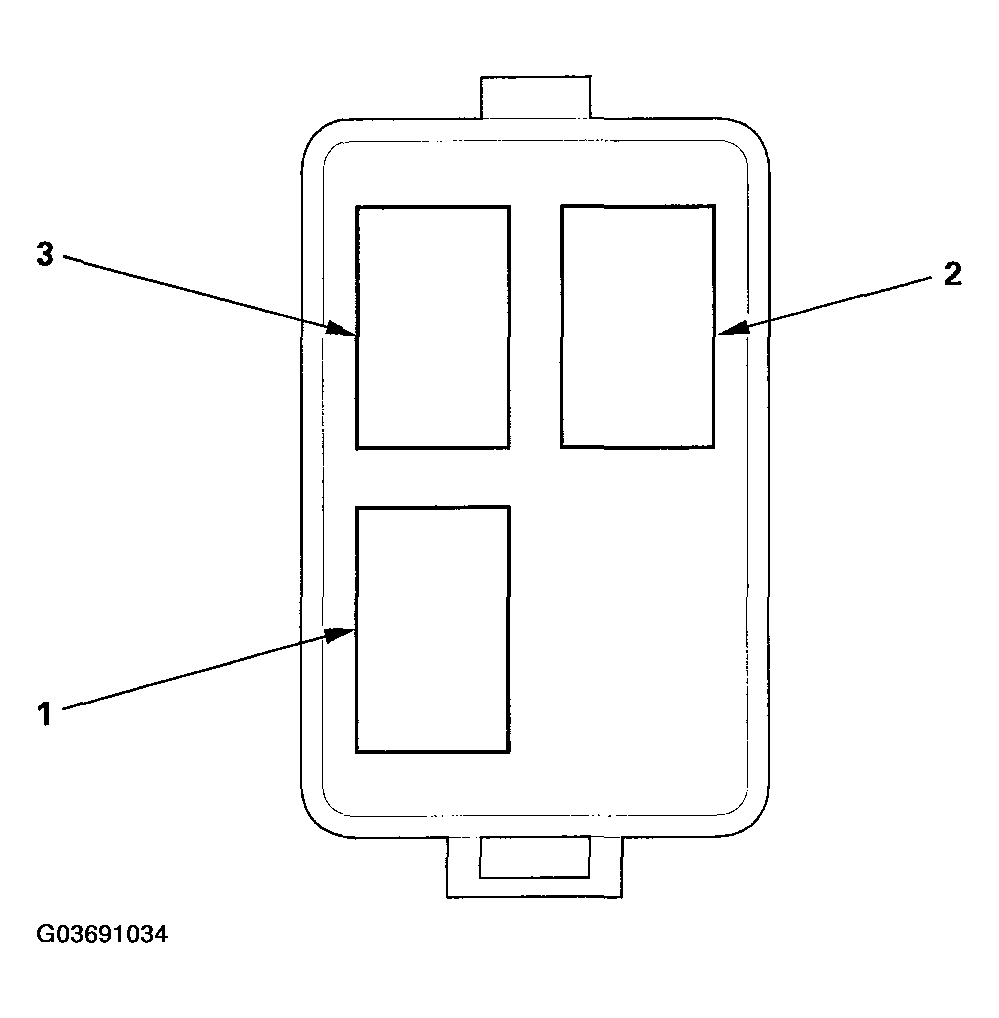

Auxiliary Underhood Relay box
AUXILIARY UNDER-HOOD RELAY BOX CHART
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A/C condenser fan relay | 3 | 5 | Right engine compartment (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| Fan control relay | 1 | 5 | Right engine compartment (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
| Radiator fan relay | 2 | 4 | Right engine compartment (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |

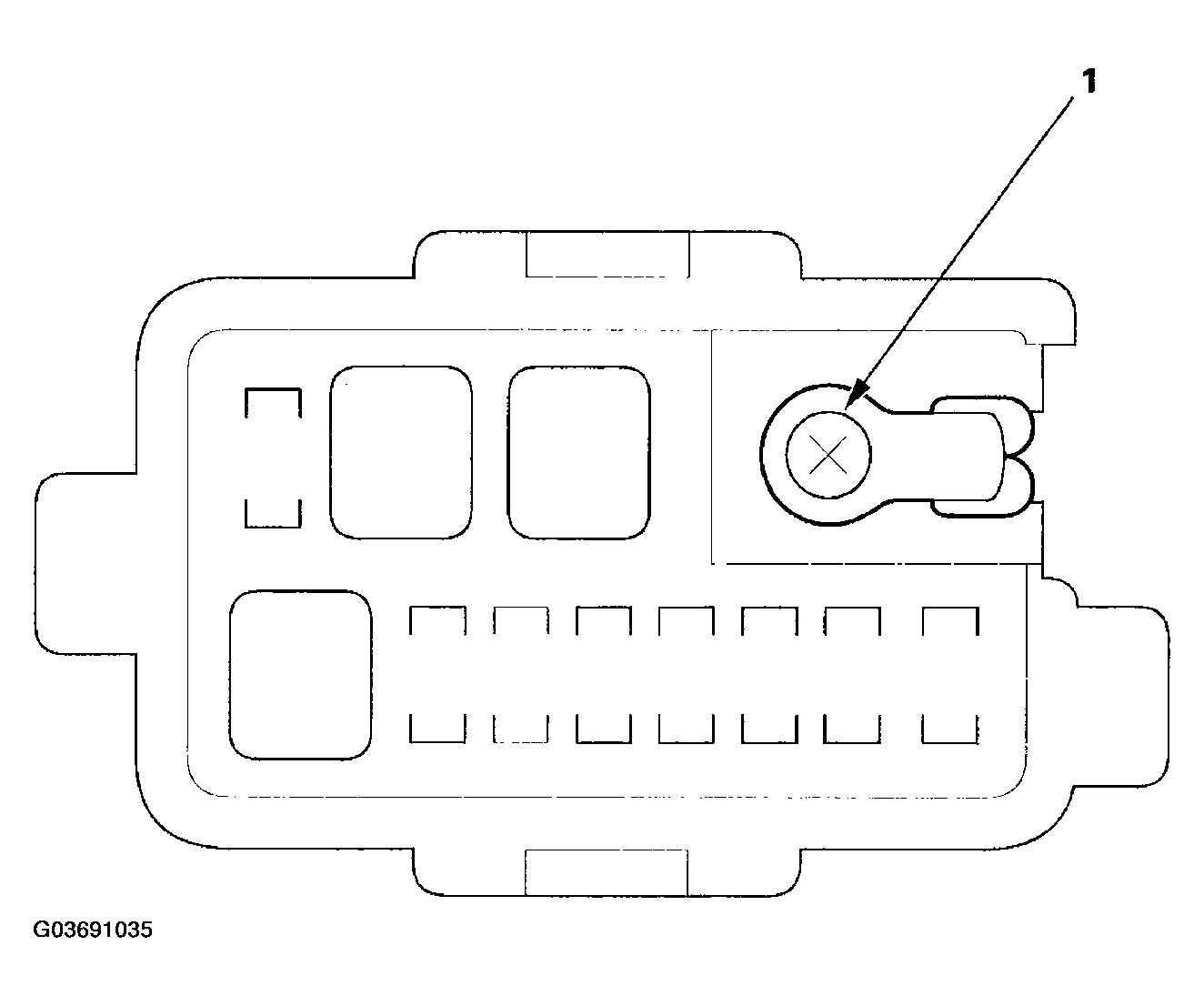

Auxiliary Underhood fuse Box
AUXILIARY UNDER-HOOD FUSE BOX CHART
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| T5 | 1 | - | Starter cable (see STARTER CABLE ) |
