Starter Overhaul: Notes

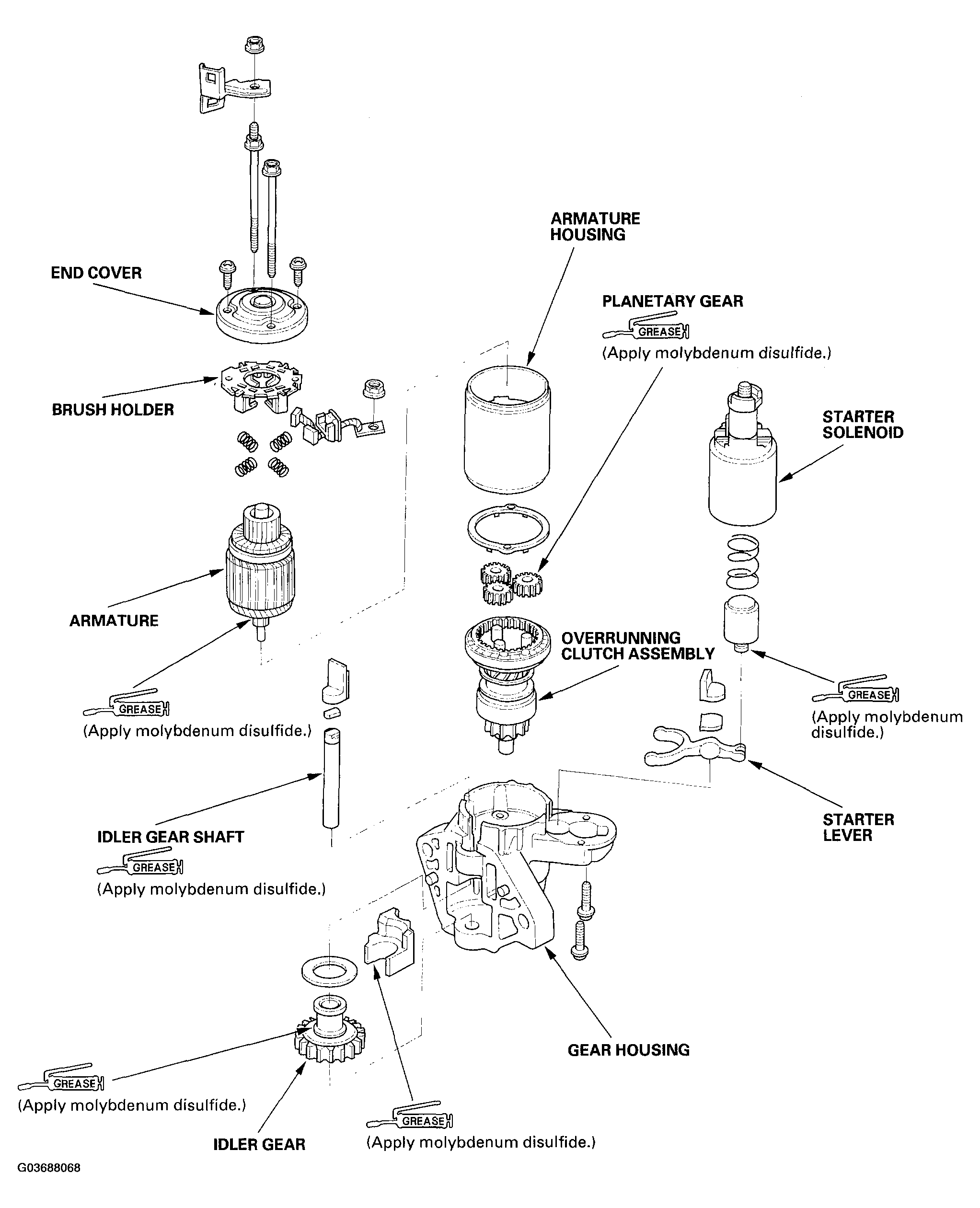

Fig 1: Identifying Starter Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
