DTC P2118: Throttle Actuator Current Range/Performance Problem: Notes

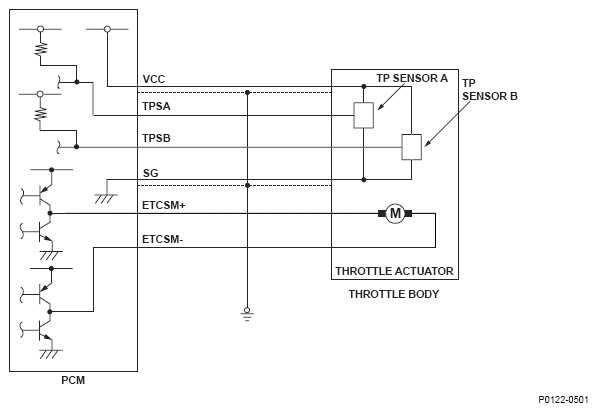

Fig 1: Throttle Position (TP) Sensor - Circuit Diagram
G04838569
